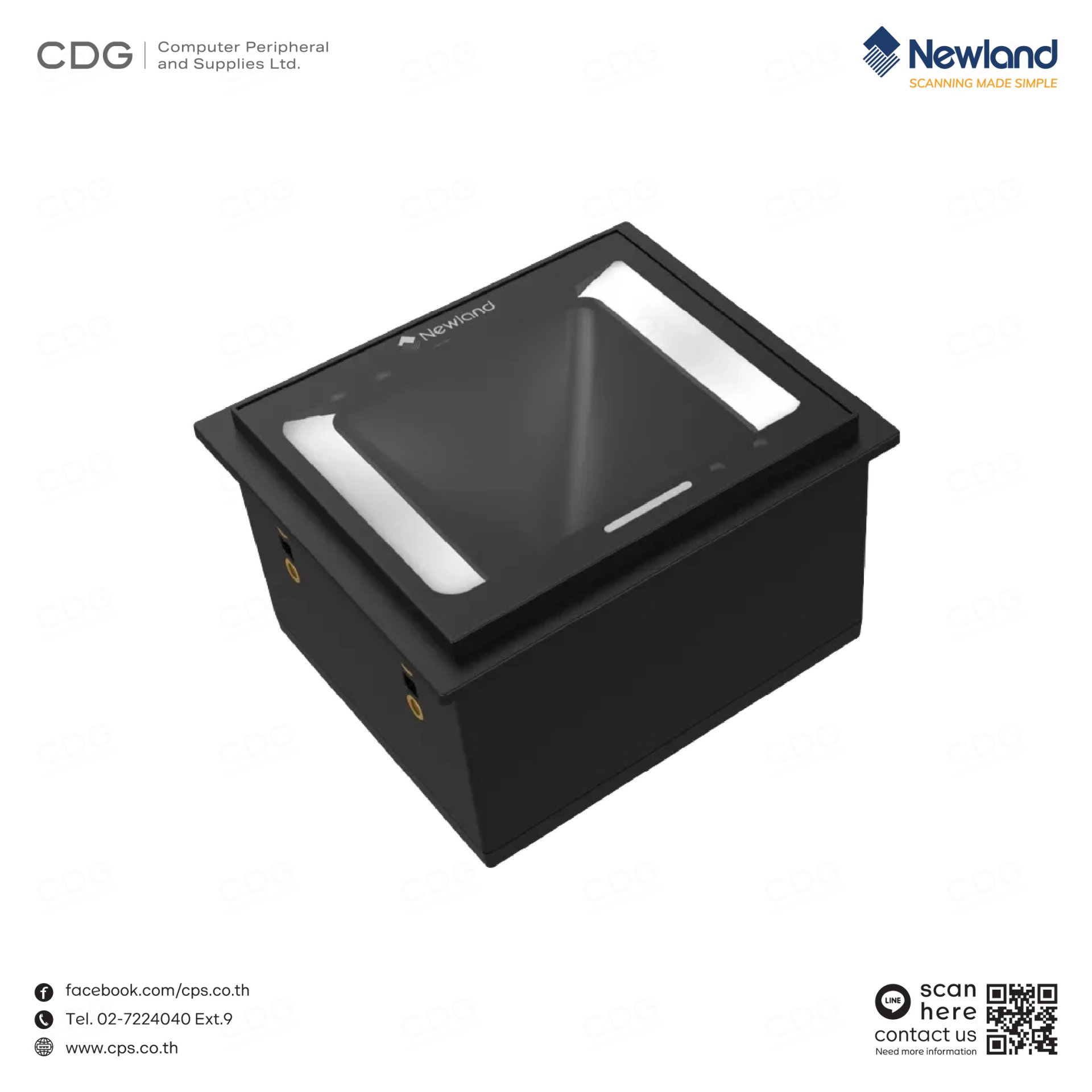

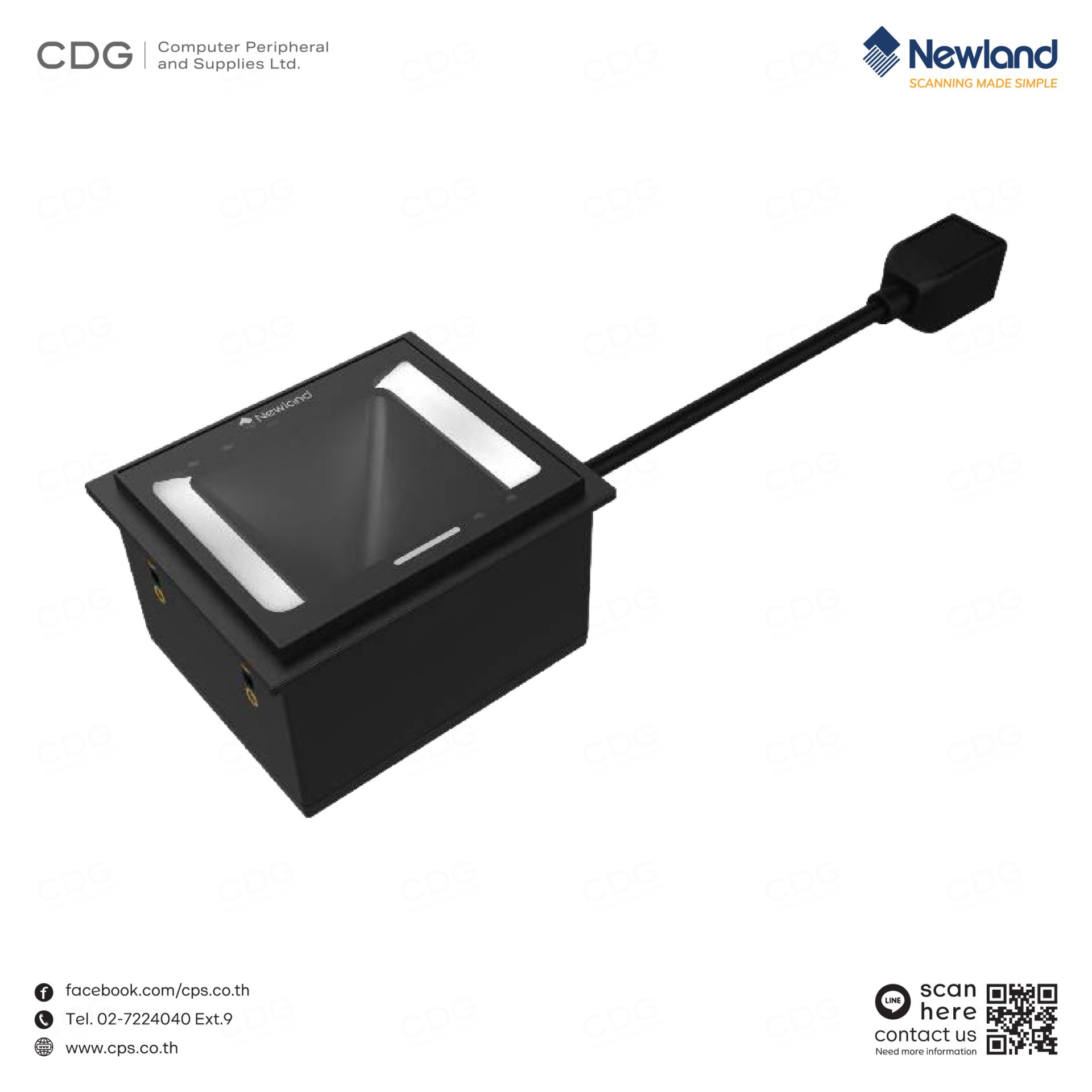

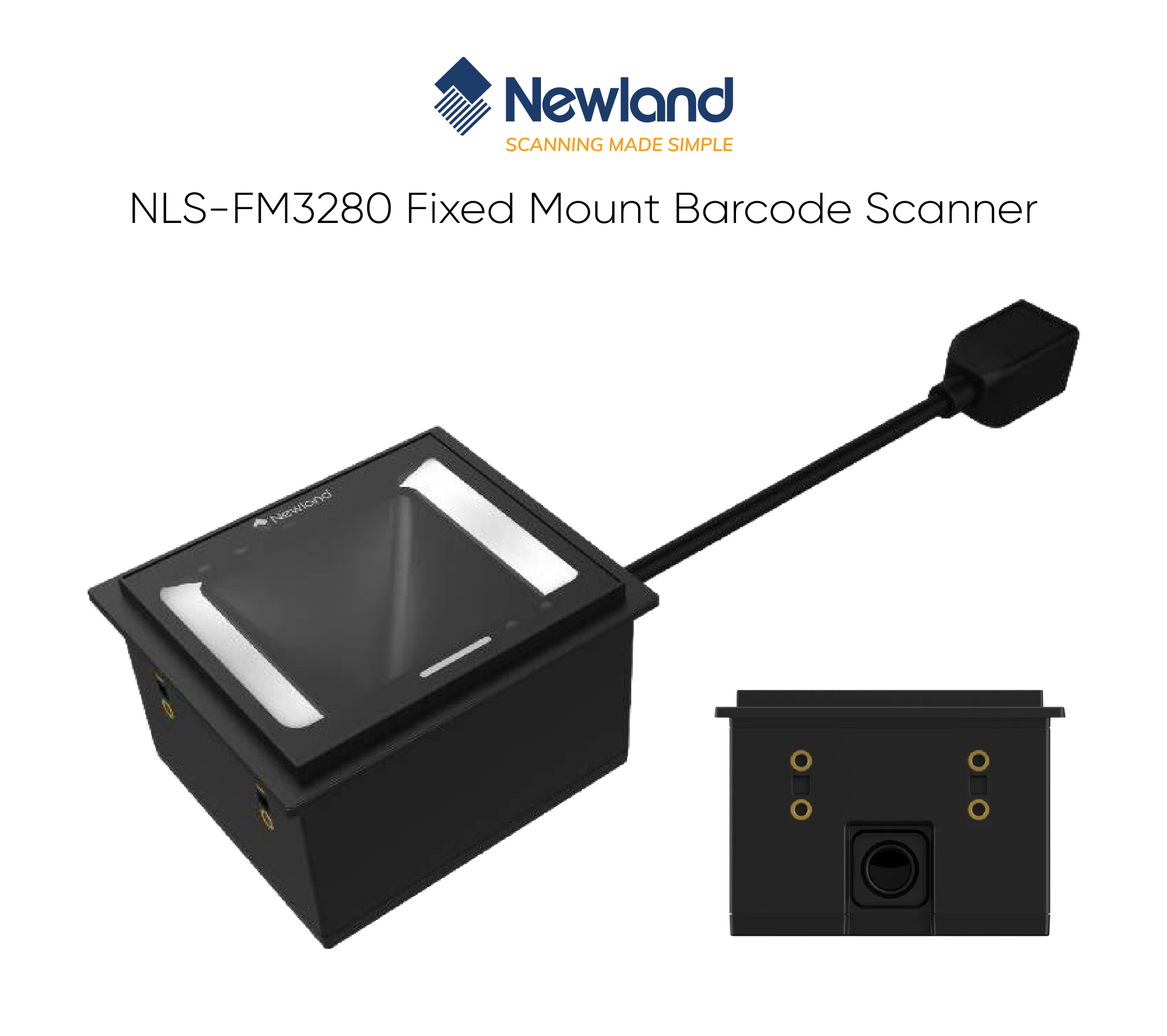

Newland FM3280 Fixed Mount Barcode Scanner (Self-Service)

Newland FM3280 Fixed Mount Barcode Scanner (Self-Service Kiosk)

The Newland FM3280 is a fixedmount barcode scanner for selfservice applications. Supports decoding of 1D, 2D, Postal, and OCR codes. Equipped with a CMOS 1280 × 1088 sensor and 3000K LED illumination. Features IR/Light Trigger for automatic barcode detection and faster operation. Interfaces include RS232, USB, RS485, and Wiegand with 5–24 VDC input. Rugged IP67 design ensures dustproof, waterproof, and ESD resistance. Optional NFC function supports cards and NFCenabled smartphones. Ideal for kiosks, ticketing machines, checkin systems, and selfservice terminals.

Key Specifications

• Decode Capability: 1D, 2D, Postal, OCR
• Image Sensor: CMOS 1280 × 1088
• Illumination: 3000K white LED
• Resolution: ≥3 mil (1D)
• Depth of Field:
  • EAN13 (13 mil): 0–290 mm
  • Code 39 (20 mil): 15–310 mm
  • Code 128 (10 mil): 0–280 mm
  • QR Code (20 mil): 0–270 mm
• Scan Angles: Roll 360°, Pitch ±60°, Skew ±60°

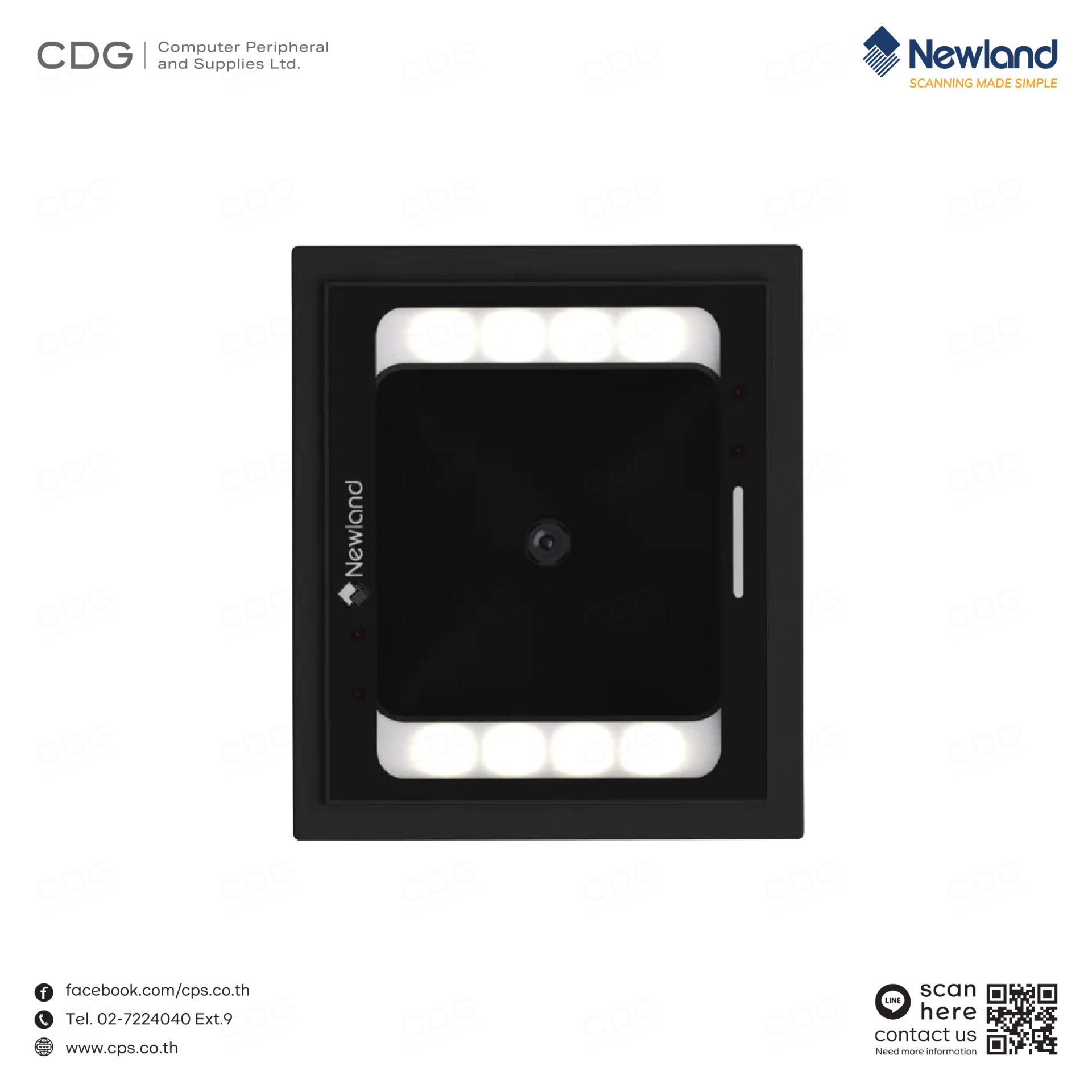

• Scan Window: 45 × 45 mm
• Scan Modes: Sense, Continuous, Command
• Interfaces: RS232, USB, RS485, Wiegand
• Voltage Input: 5–24 VDC
• Notification: Beeper + multicolored LED
• Weight: 132 g
• Sealing: IP67, ESD ±15kV (air), ±8kV (direct)
• Operating Temperature: -20°C to 60°C

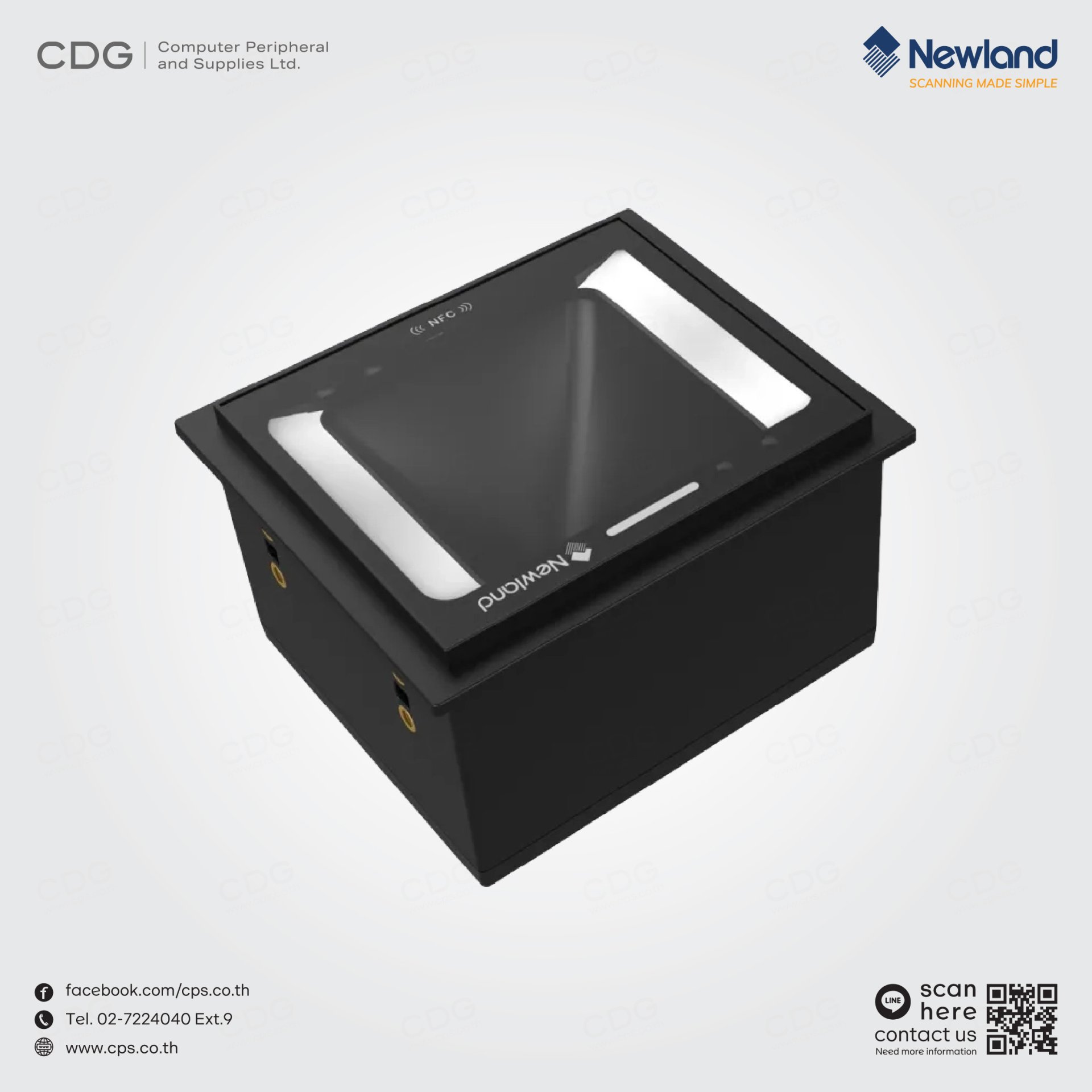

• Optional NFC Function: Supports Mifare, Felica, CPU cards, NFC phones, etc.

Special Features

• 6thGeneration Technology: Fast decoding of lowquality printed and onscreen barcodes.
• IP67 Sealing: Dustproof and waterproof for industrial environments.
• IR/Light Trigger: Automatically activates scanning for higher throughput.
• Optional NFC Support: Reads/writes NFC cards, CPU cards, and NFCenabled phones.
• Flexible Interfaces: RS232, USB, RS485, Wiegand for diverse integration.
• MultiMode Feedback: Beeper and LED indicators for scan confirmation.

Usage Summary

NLS-FM3280 is ideal for interactive kiosks, ticketing machines, checkin systems, and selfservice terminals requiring high accuracy, durability, and NFC capability. It ensures reliable performance in demanding environments with IP67 sealing and advanced scanning technology.

Datasheet : Newland NLS-FM3280 Fixed Mount Barcode Scanner

Meet the NLS-FM3280: Elevating Barcode Scanning with Integrated NFC Innovation
