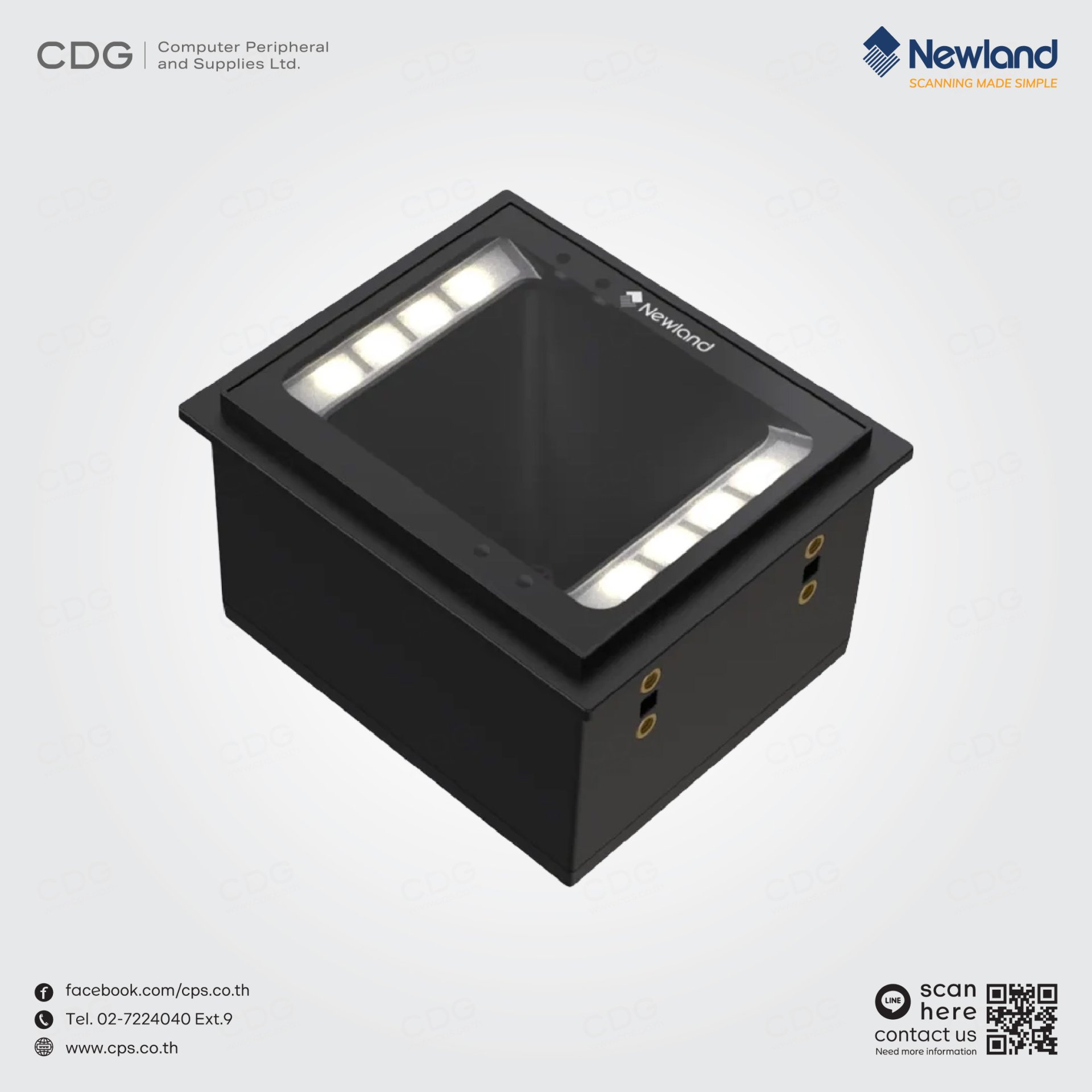

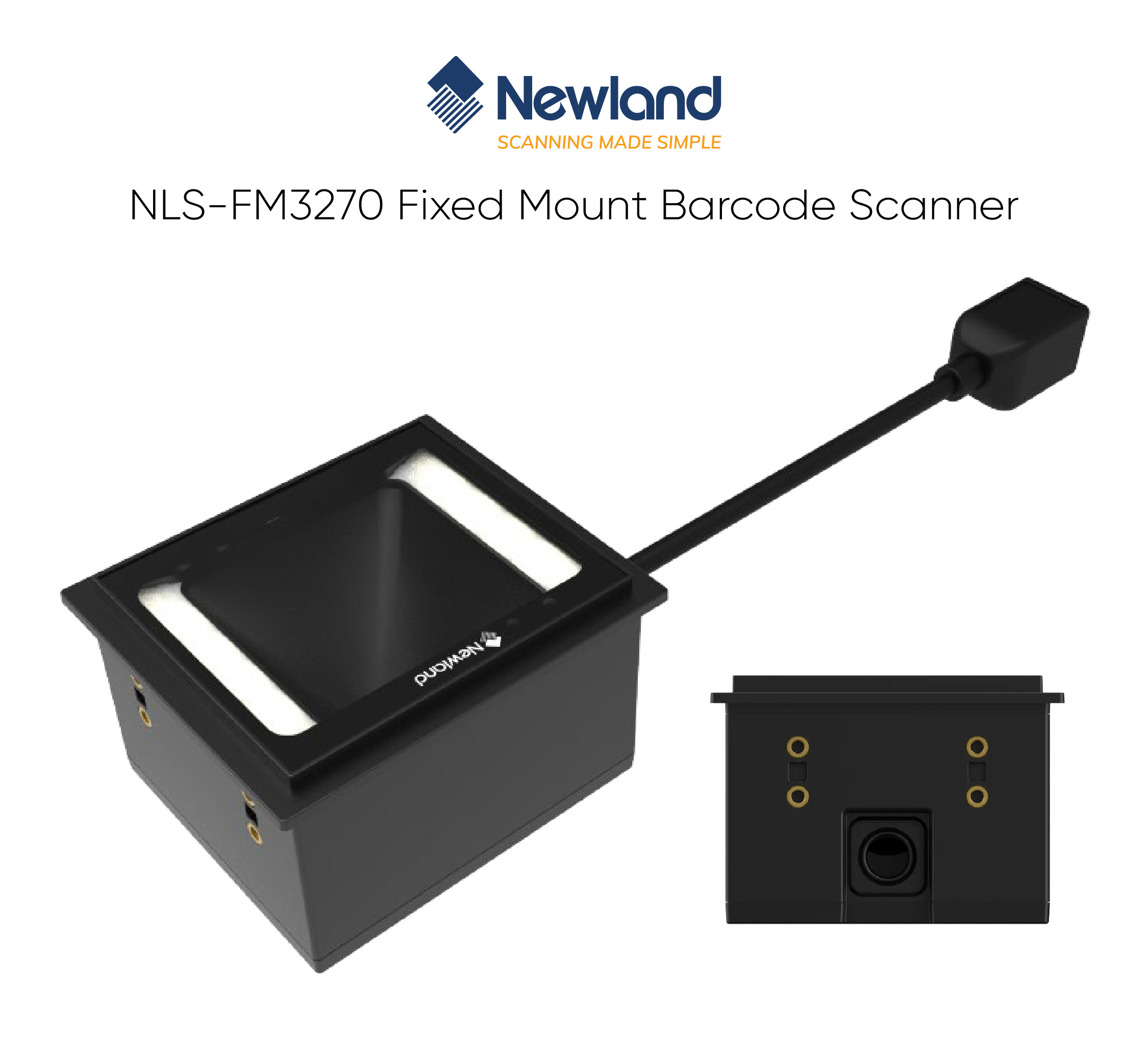

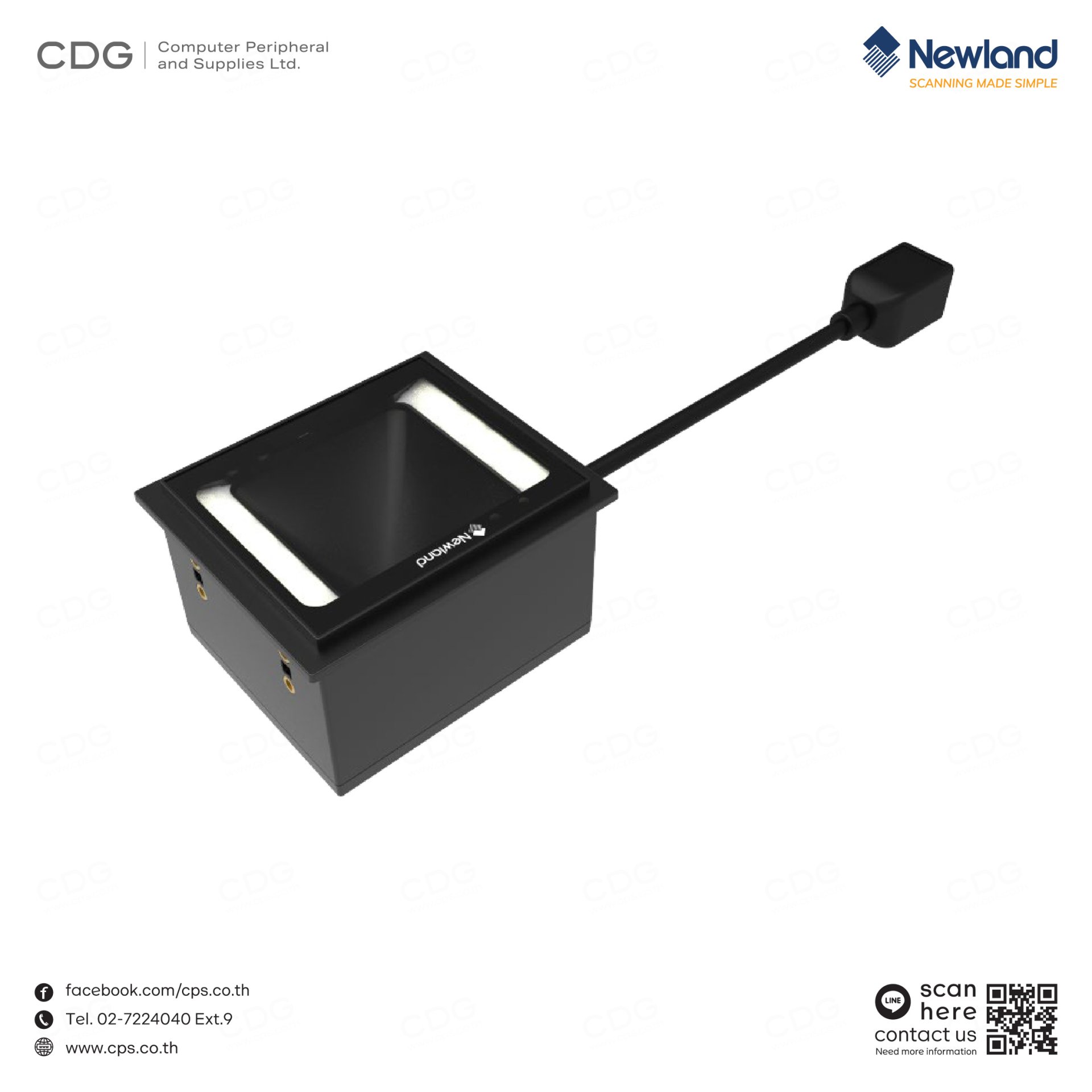

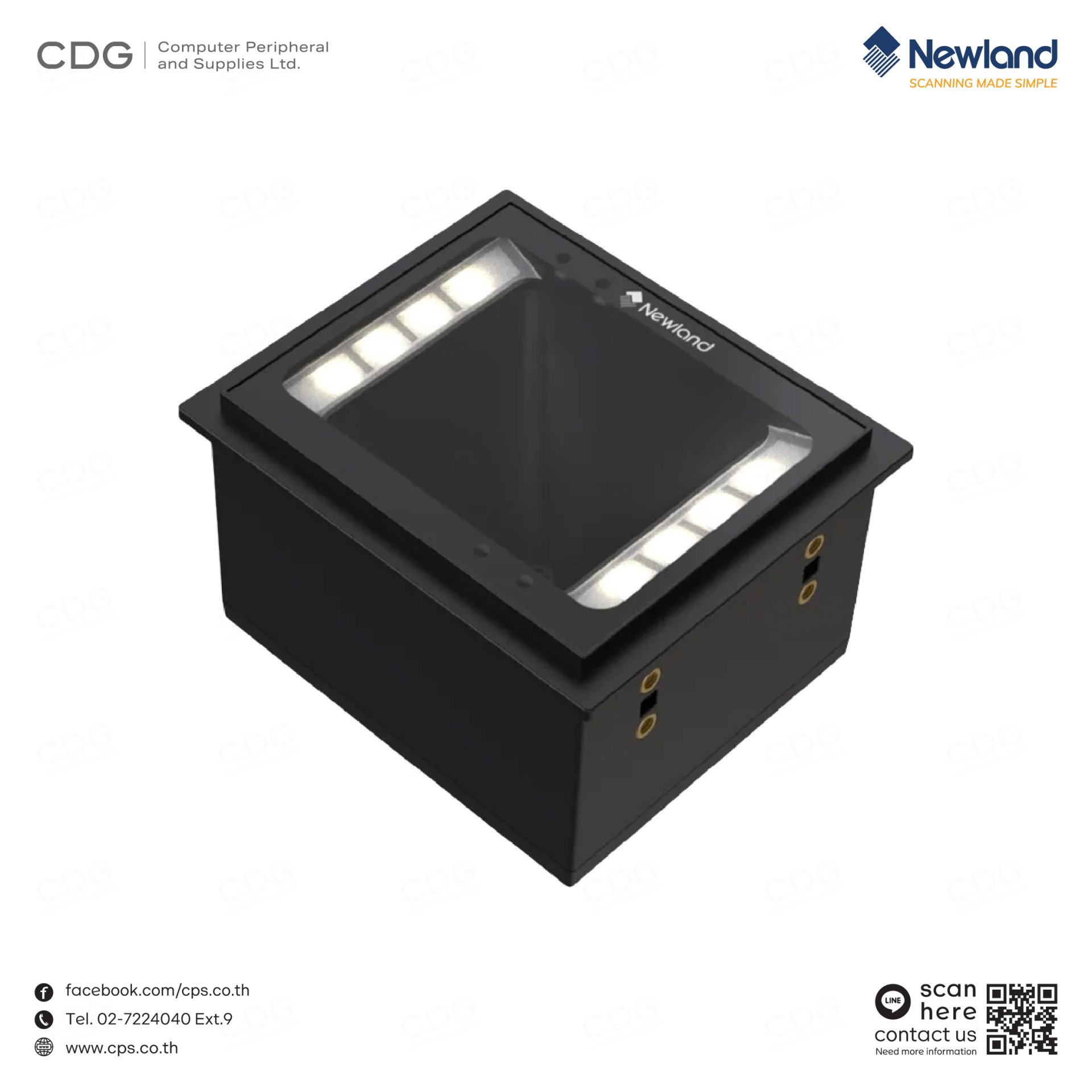

Newland FM3270 Fixed Mount Barcode Scanner

The Newland FM3270 is a fixed‑mount barcode scanner for self‑service applications. Accurately decodes both 1D and 2D barcodes. Equipped with a CMOS 640 × 480 sensor and 3000K LED illumination. Features IR/Light Trigger for automatic barcode detection. Supports RS‑232 and USB interfaces with 5–24 VDC input. Rugged IP65 design ensures dustproof, waterproof, and ESD resistance. Provides multi‑mode feedback with beeper and colored LED indicators. Ideal for kiosks, ticketing machines, check‑in systems, and self‑service terminals.

Specifications

• Decode Capability: 1D & 2D barcodes (QR, Data Matrix, PDF417, Aztec, etc.)
• Image Sensor: CMOS 640 × 480
• Illumination: 3000K white LED
• Resolution: ≥4 mil (1D)
• Depth of Field:
  • EAN‑13 (13 mil): 0–170 mm
  • Code 39 (20 mil): 15–200 mm
  • Code 128 (10 mil): 0–160 mm
  • QR Code (20 mil): 0–95 mm
• Scan Angles: Roll 360°, Pitch ±50°, Skew ±50°

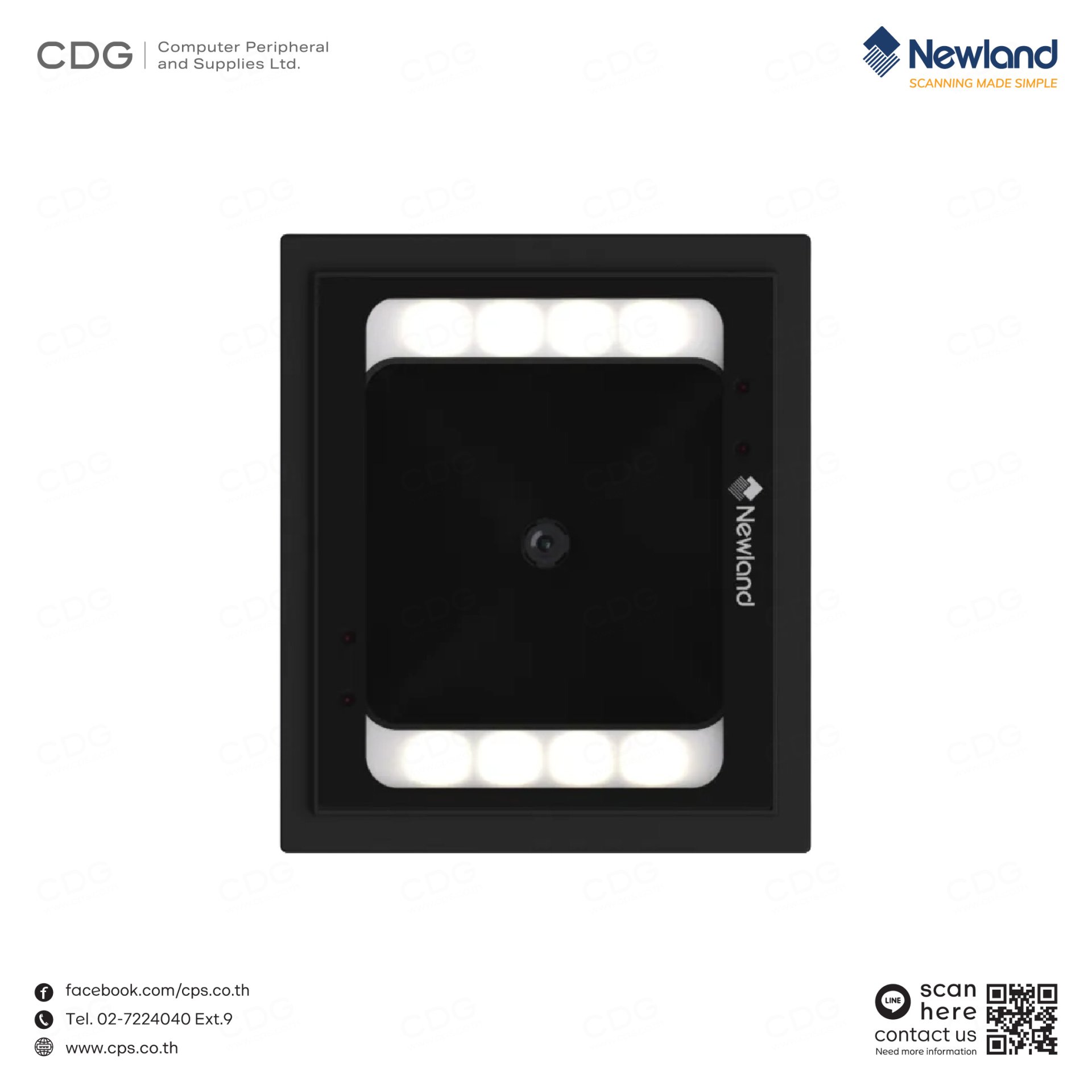

• Scan Window: 45 × 45 mm
• Scan Modes: Sense, Continuous, Command
• Interfaces: RS‑232, USB
• Voltage Input: 5–24 VDC
• Notification: Beeper + multi‑colored LED
• Dimensions: 78.7 × 47.7 × 67.7 mm
• Weight: 132 g
• Sealing: IP65, ESD ±15kV (air), ±8kV (direct)

Special Features

• Designed for Self‑Service Devices: Easy integration into kiosks, ticketing machines, and check‑in systems.
• IP65 Sealing: Dustproof and waterproof protection.
• IR/Light Trigger: Automatically activates scanning for faster throughput.
• Snappy Barcode Capture: Newland’s 6th‑generation technology ensures fast reading of printed and on‑screen barcodes.
• Wide Voltage Input: Supports 5–24 VDC for flexible installation.
• Multi‑Mode Feedback: Beeper and LED indicators for scan confirmation.

Usage Summary

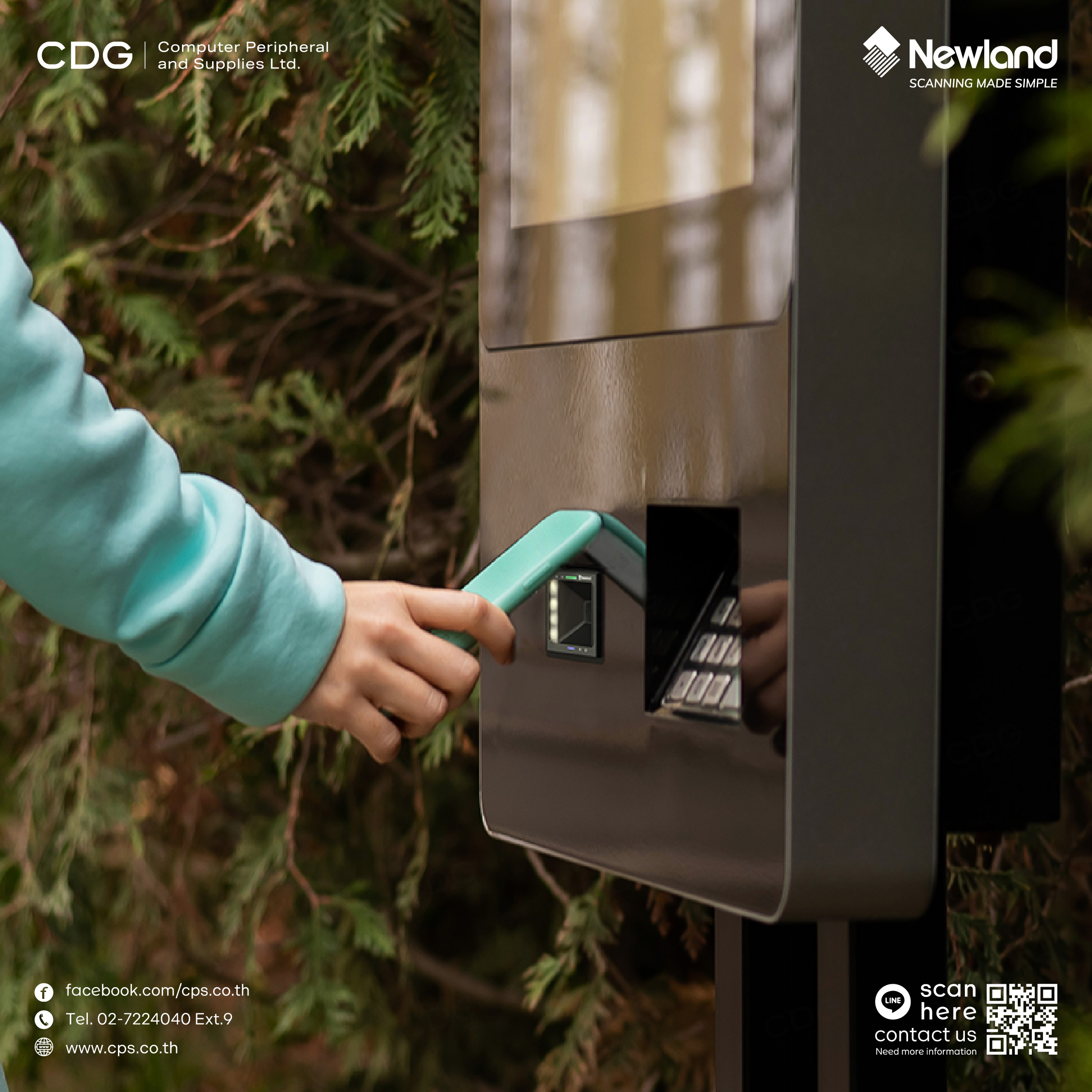

The FM3270 is ideal for interactive kiosks, ticketing machines, check‑in systems, and self‑service terminals requiring high accuracy, durability, and fast response in diverse environments.

Datasheet : Newland NLS-FM3270 Fixed Mount Barcode Scanner
