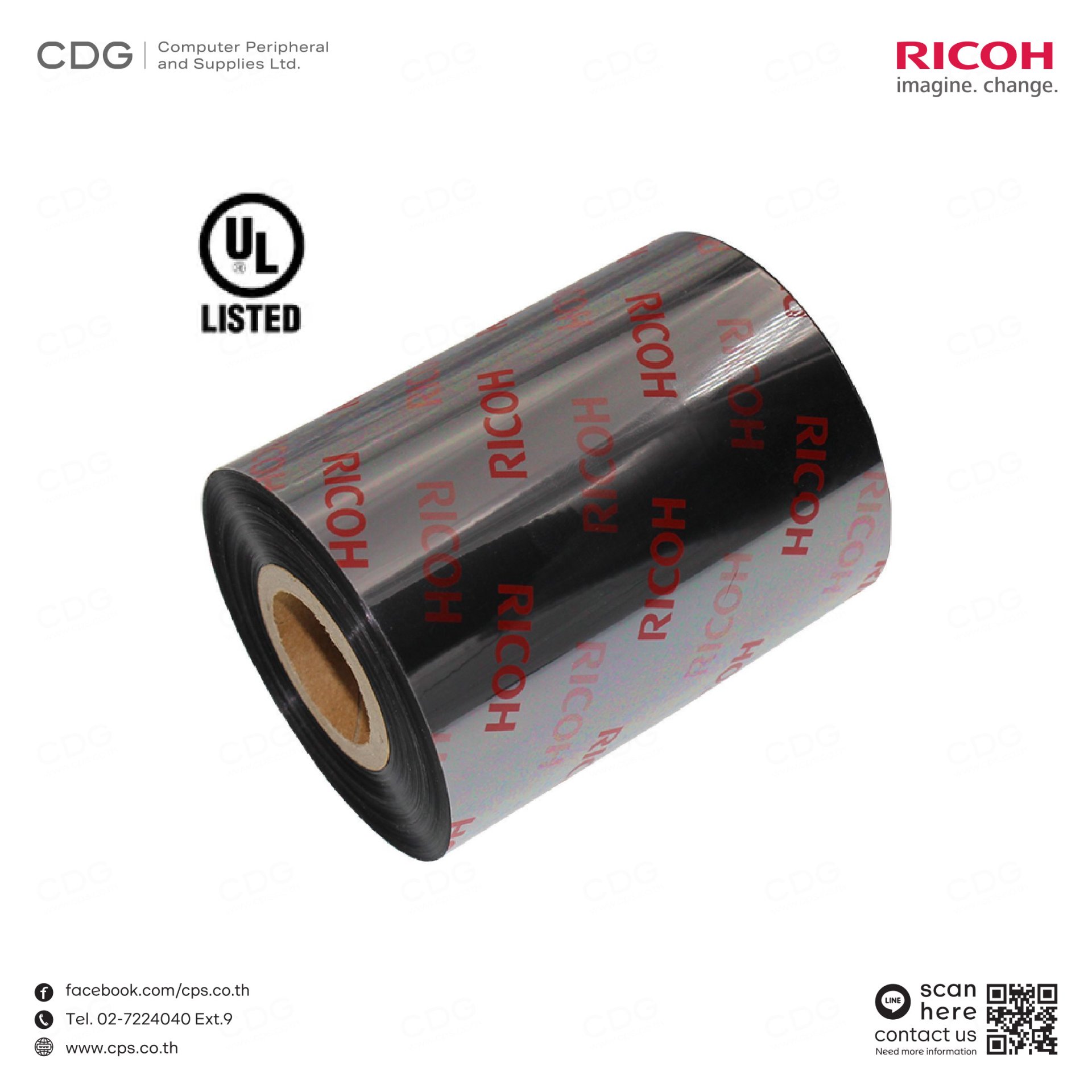

Ricoh B110C Resin Ribbon Barcode and Label Printing

Ricoh B110C Resin Ribbon Barcode and Label Printing

The Ricoh Resin Ribbon B110C is a premium resin ribbon for barcode printing. It provides outstanding resistance to abrasion, heat, and chemicals. Compatible with high-resolution print heads (300-600 dpi) for sharp results. Tested under ANSI standards to ensure durability and reliability. Water and light resistant, maintaining print quality in harsh environments. Ideal for pharmaceutical, chemical, logistics, and packaging industries. Long-lasting performance reduces replacement frequency and operating costs.

• Ultra Durable Resin
• Higher heat resistance up to 150°C
• Good chemical and solvent resistance
• High resolution for 300 - 600 dpi printer

Key Specifications

• Ribbon Type: Resin
• Ribbon Thickness: < 9 µm
• Polyester Film Thickness: 4.5 µm
• Mechanical Strength: > 200 N/mm²
• Transmission Density: 1.00
• Recommended Operating Temperature: 5–35 °C
• Recommended Humidity: 30–85% RH
• Storage Life: 24 months under proper conditions
• Safety Standards: RoHS, REACH, TSCA, WEEE, ISO, EN71‑3, 2003/11/EC, 2000/53/EC, 76/769/EEC

Ribbon Propertie

• Total ribbon thickness: < 9μm
• Polyester film thickness: 4.5 μm
• Friction coefficient: <0.045
• Ink melting point: 83°C
• Tearing resistance: > 200N/mm²
• Transmission density: 1.00 mini

Special Features

• High resistance to abrasion and chemicals, tested under ANSI standards.
• Heat resistance: Withstands temperatures up to 220 °C.
• Durability against friction and pressure: Maintains print quality even after 50 abrasion cycles.
• Water and light resistance: Tested for 24‑hour water immersion and Xenon lamp exposure.
• Sharp and clear print quality, compatible with 300–600 dpi print heads.
• Ideal for industrial applications such as packaging, logistics, pharmaceuticals, and chemicals.
• Long‑lasting performance, reducing ribbon replacement frequency and lowering costs.

Usage Summary

The Ricoh B110C Resin Ribbon is designed for barcode and label printing that requires durability against abrasion, heat, chemicals, water, and light. It is particularly suitable for pharmaceutical, chemical, logistics, and packaging industries, ensuring reliable and long‑lasting printed information.

Datasheet : Ricoh B110C Resin Ribbon Barcode and Label Printing

Application

B110C Durability	Printed Image Durability
	TESTS	RESULT
	Smear + heat 100°C Smear with cardboard (weight 1kg - 50 back & forwards)	ANSI > B
	Heat (220°C)Heat gradient 3.6kgF/cm²	No ink on fabric
	Scratch50 back and forwards with a rubbing tester	ANSI > B
	LightXenon lamp at 650 W/m2	ANSI A
	Water24 hours in water	ANSI A
Storage Condition Usage conditions: 5 to 35°C at 30 to 85% of relative humidity. Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight. Storage life: 24 months after production.	Certificates	TSCA | RoHS | WEEE | REACH | ISO EN71-3 | 2003/11/EC | 2000/53/EC | 76/769/EEC
