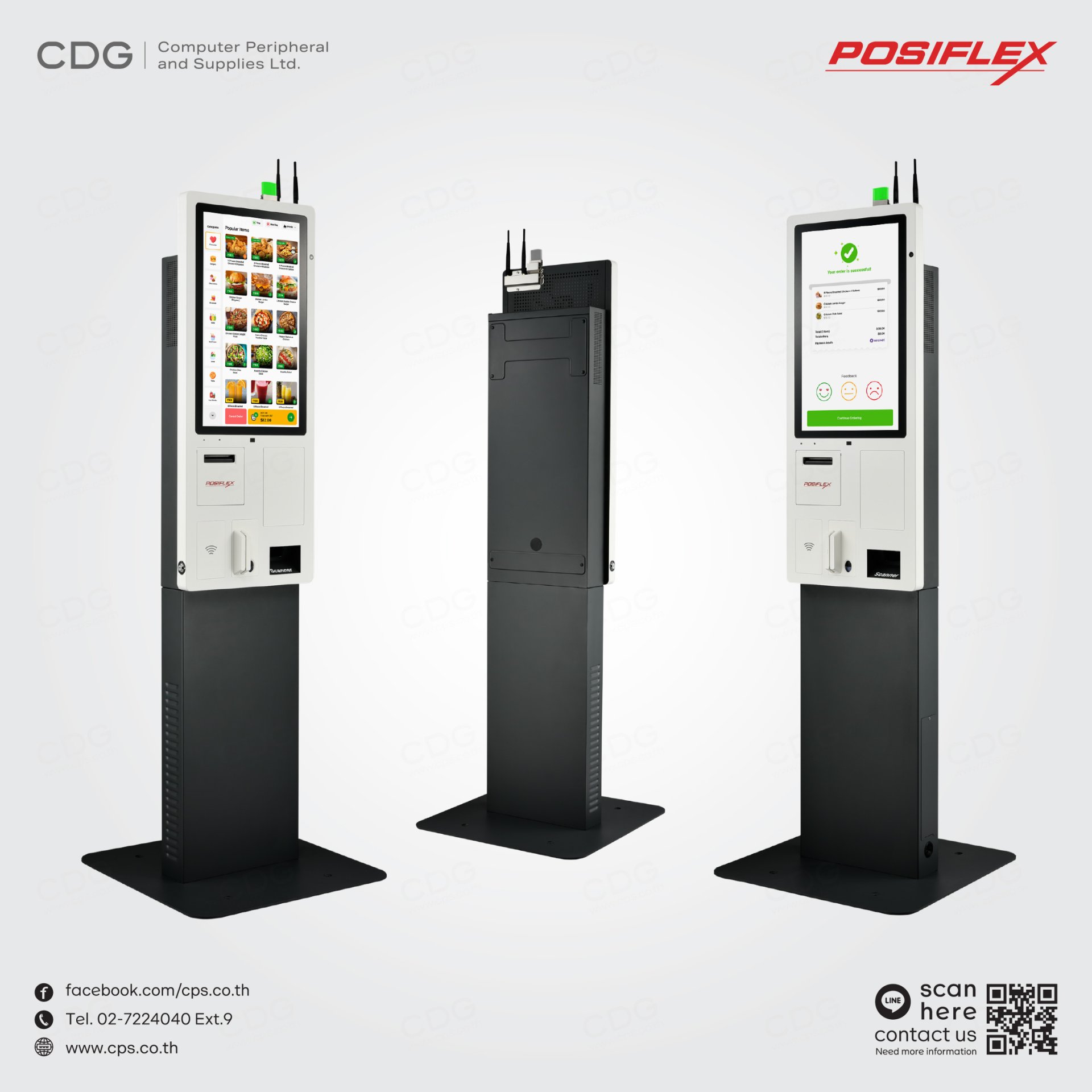

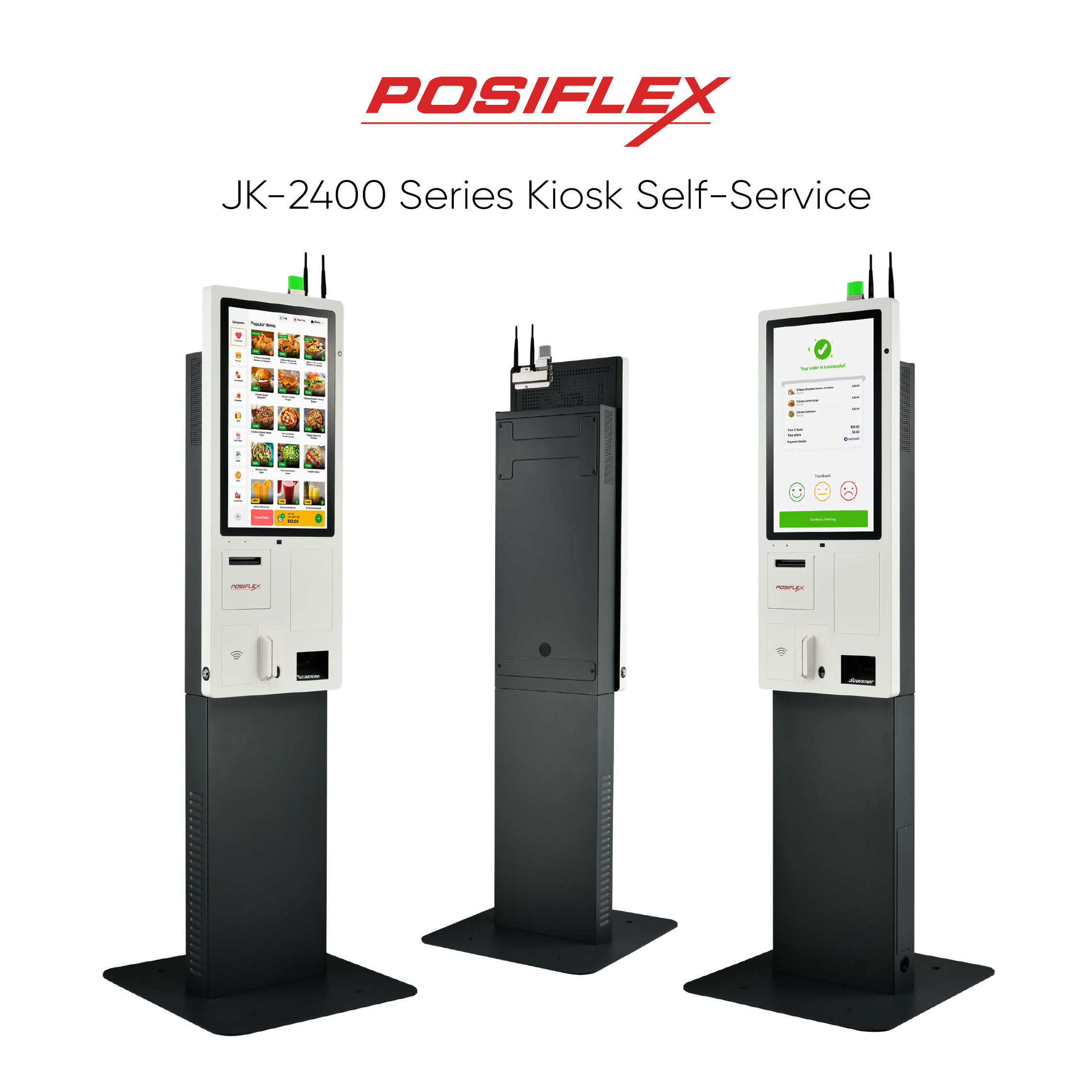

Posiflex JK-2400 Series Kiosk Self-Service 23.8" Touch

Posiflex JK-2400 Series Kiosk Self-Service 23.8" Touch

The Posiflex JK‑2400 is a 23.8‑inch Kiosk Self-Service / Food Ordering Kiosk. Slim true‑flat design, modern and suitable for public spaces. Supports multiple CPU options including Intel, Rockchip, and MTK Genio G700. Equipped with NFC standards and comprehensive peripheral support. Features PowerGuard to prevent data loss during power outages. Reversible printing ensures receipts face the user directly. Ideal for retail, restaurants, banks, and public service environments.

Key Specifications

• Display: 23.8‑inch PCAP true‑flat touchscreen, high resolution
• CPU Options:
  • Rockchip RK3399 (Dual‑Core Cortex A72 + Quad‑Core Cortex A53)
  • Intel® Celeron J6412 (Elkhart Lake)
  • Intel® Core i3‑1115G4E / Core i5‑1145G7E (Tiger Lake UP3)
  • Intel® Raptor Lake (latest generation)
  • MTK Genio G700 supporting Android 13
• NFC Support: ISO/IEC 14443‑A&B (MIFARE), JIS X 6319‑4 (Felica), ISO/IEC 15693, ISO/IEC‑18092 (Tag Read/Write)
• Installation Options: Floor‑stand, wall‑mount, and dual‑sided setups

Special Features

• Slim, Modern Design: True‑flat style for a sleek and professional look
• Flexible Installation: Adaptable to different spaces and business needs
• Comprehensive Peripheral Options: 2D scanner, receipt printer, NFC, EMV payment bracket, service indicator
• Reversible Printing: Ensures receipts face the user directly for convenience
• PowerGuard: Protects against data loss by safely shutting down during power outages
• Easy Maintenance: Designed for simple installation and cable management

Usage Summary

The Posiflex JK‑2400 is ideal for businesses seeking a large‑screen, modern self‑service kiosk with versatile installation and multiple CPU options. With support for both Windows and Android platforms, advanced NFC standards, and a wide range of peripherals, it is perfect for retail, restaurants, banks, and public service environments that require reliability, flexibility, and a premium user experience.

All models of the Posiflex Cachet JK‑2400 Series (JK‑2410, JK‑2420, JK‑2432, JK‑2452, and JK‑2462) share the same external design and a 23.8‑inch touchscreen display. The key difference lies in the operating system (OS) and processor (CPU) performance. This series is divided into multiple sub‑models to support both Android and Windows platforms, ranging from entry‑level specifications to high‑end configurations (including the latest Raptor Lake processors).

The comparison table of internal specifications is as follows:

Shared External Functions and Design (Identical Across All Models)

• Display: 23.8‑inch true‑flat PCAP touchscreen with Full HD resolution (1920 × 1080).
• Printing Innovation: Built‑in thermal receipt printer with Reversible Printing function, automatically adjusting paper output direction so users can read receipts immediately without being upside down.
• Flexible Installation: Slim, modern design supporting wall‑mount, single‑sided floor‑standing, or dual‑sided back‑to‑back floor‑standing setups.
• Optional Accessories: All models can be customized with add‑ons such as a 2D barcode scanner, NFC/RFID reader, or EMV credit card reader mount.

Datasheet : Posiflex JK-2400 Series Kiosk Self-Service
