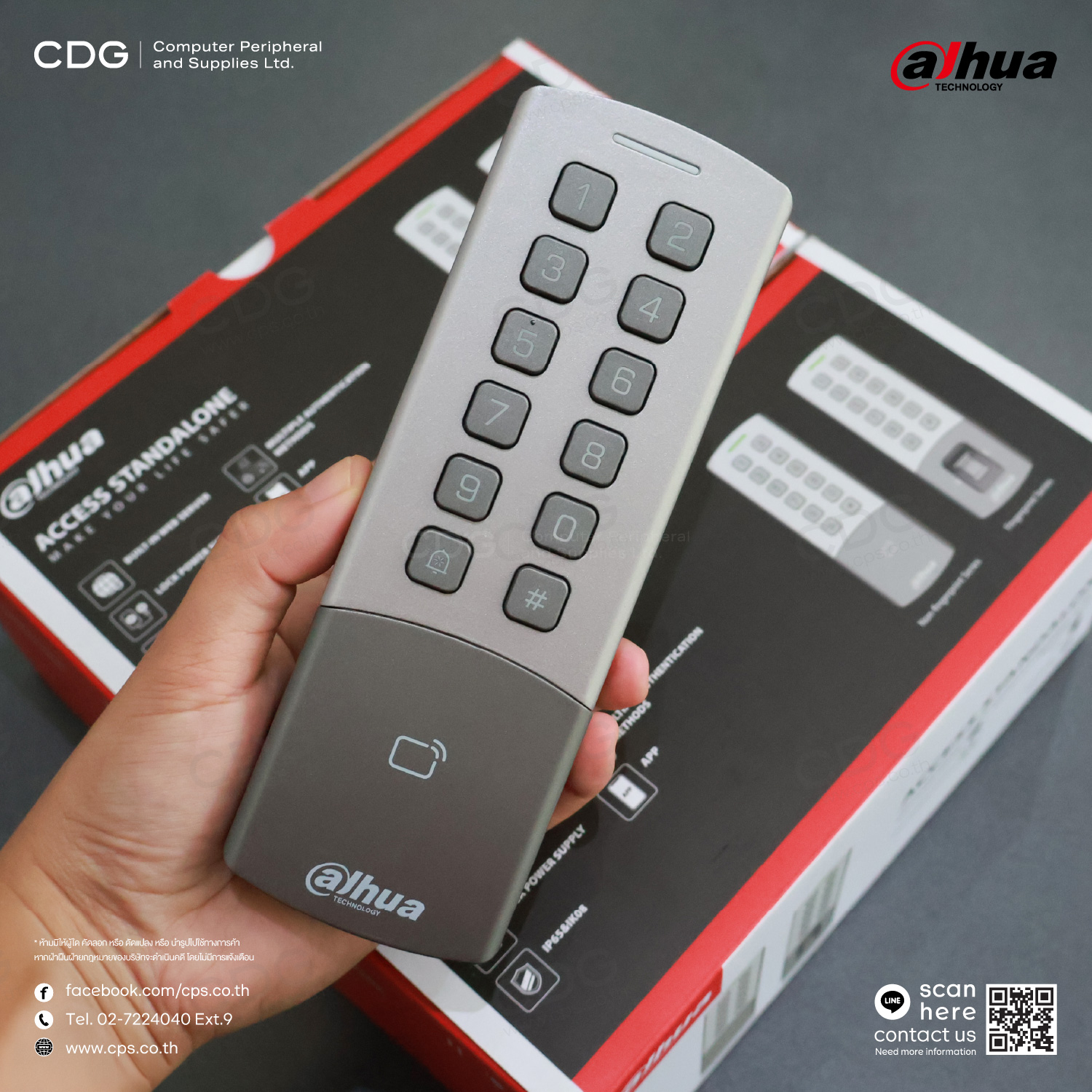

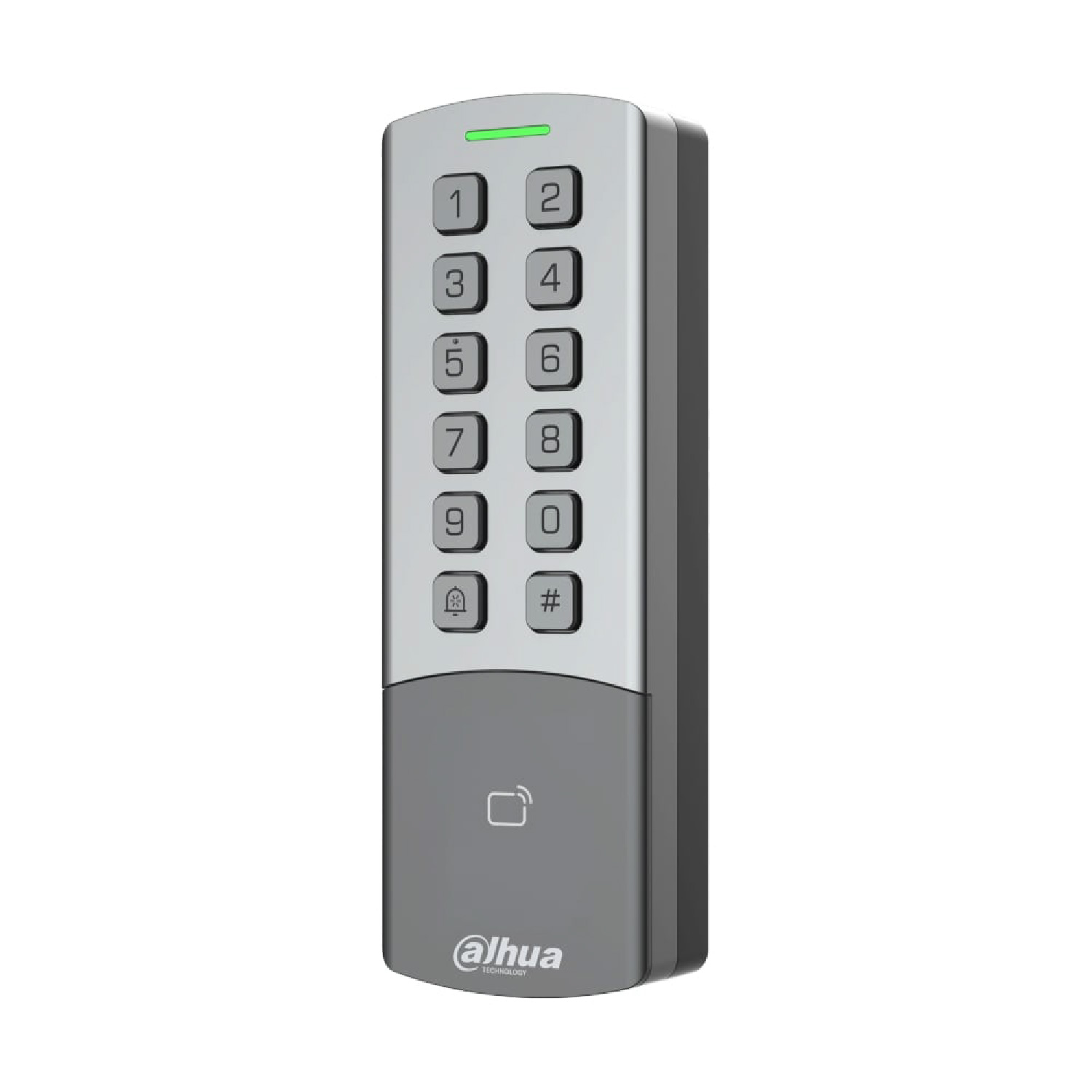

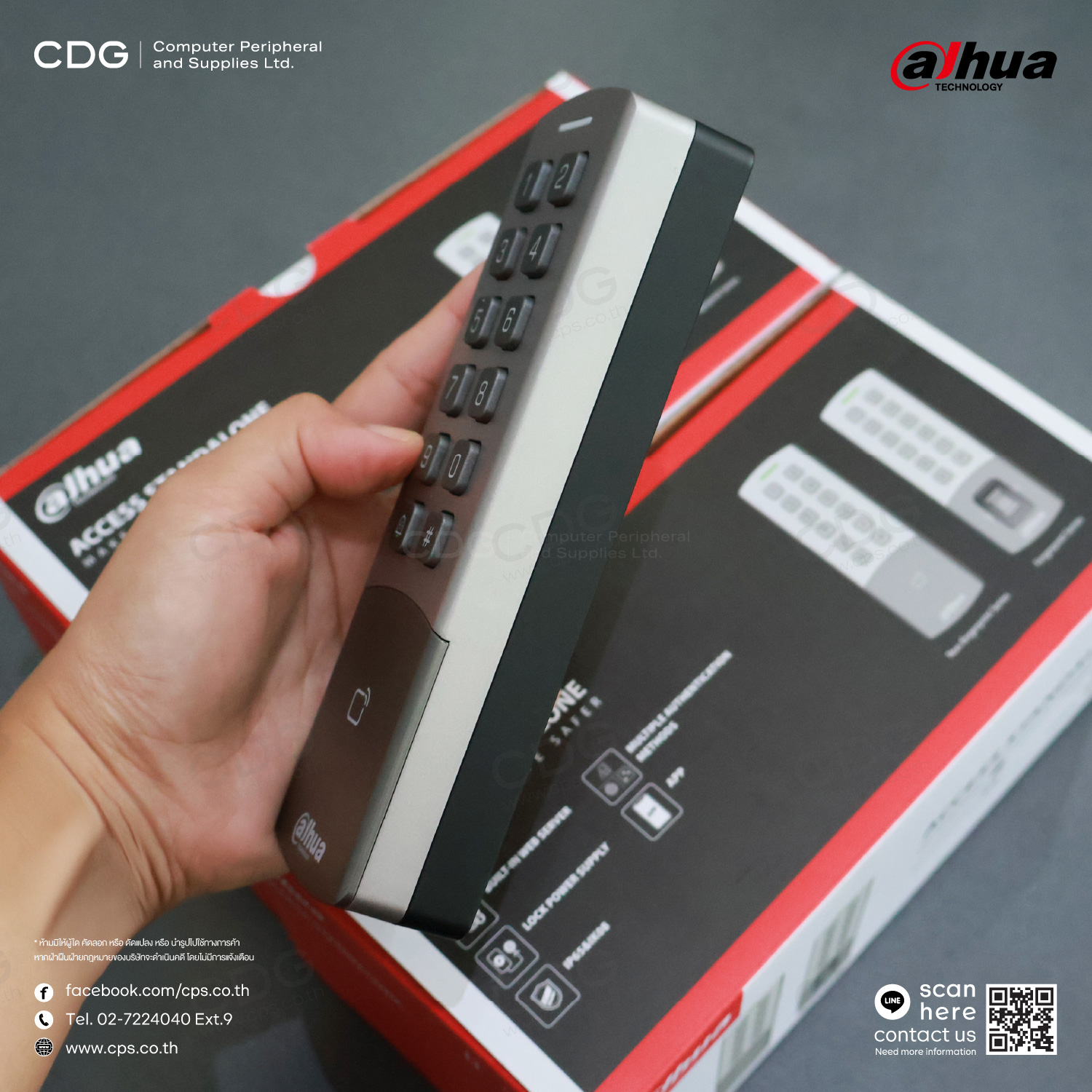

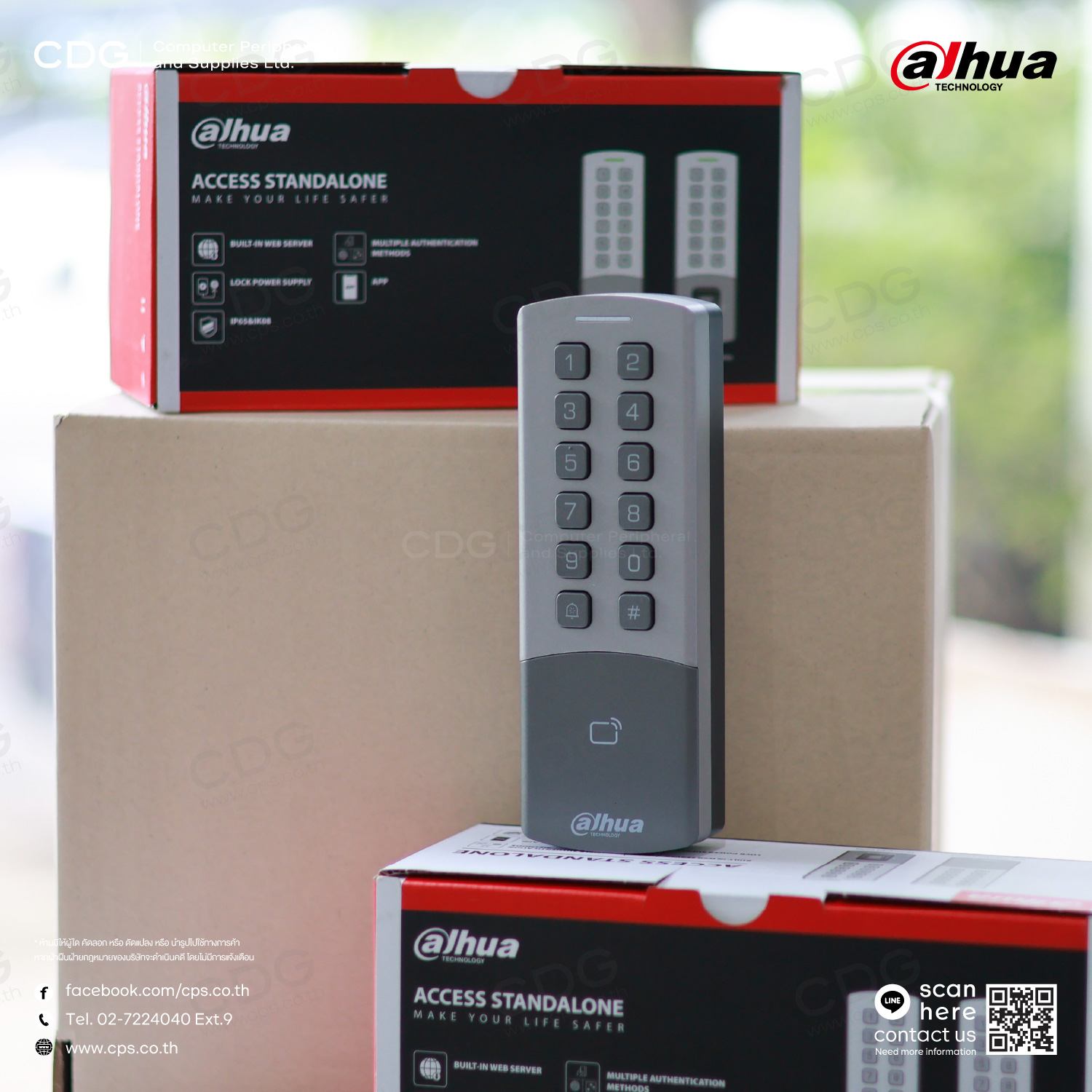

Dahua DHI-ASI1201M-MEP Card Swiping, Password Access Standalone
The DAHUA DHI-ASI1201M-MEP is a standalone access control terminal supporting RFID cards and password authentication. It accommodates up to 10,000 users and stores up to 100,000 event logs. Built with IP65 and IK08-rated housing, it resists dust, water, and impact—ideal for offices, factories, and secure zones. The device features multiple alarm types and supports integration with external systems via RS-485 and Wiegand interfaces.
Special Features

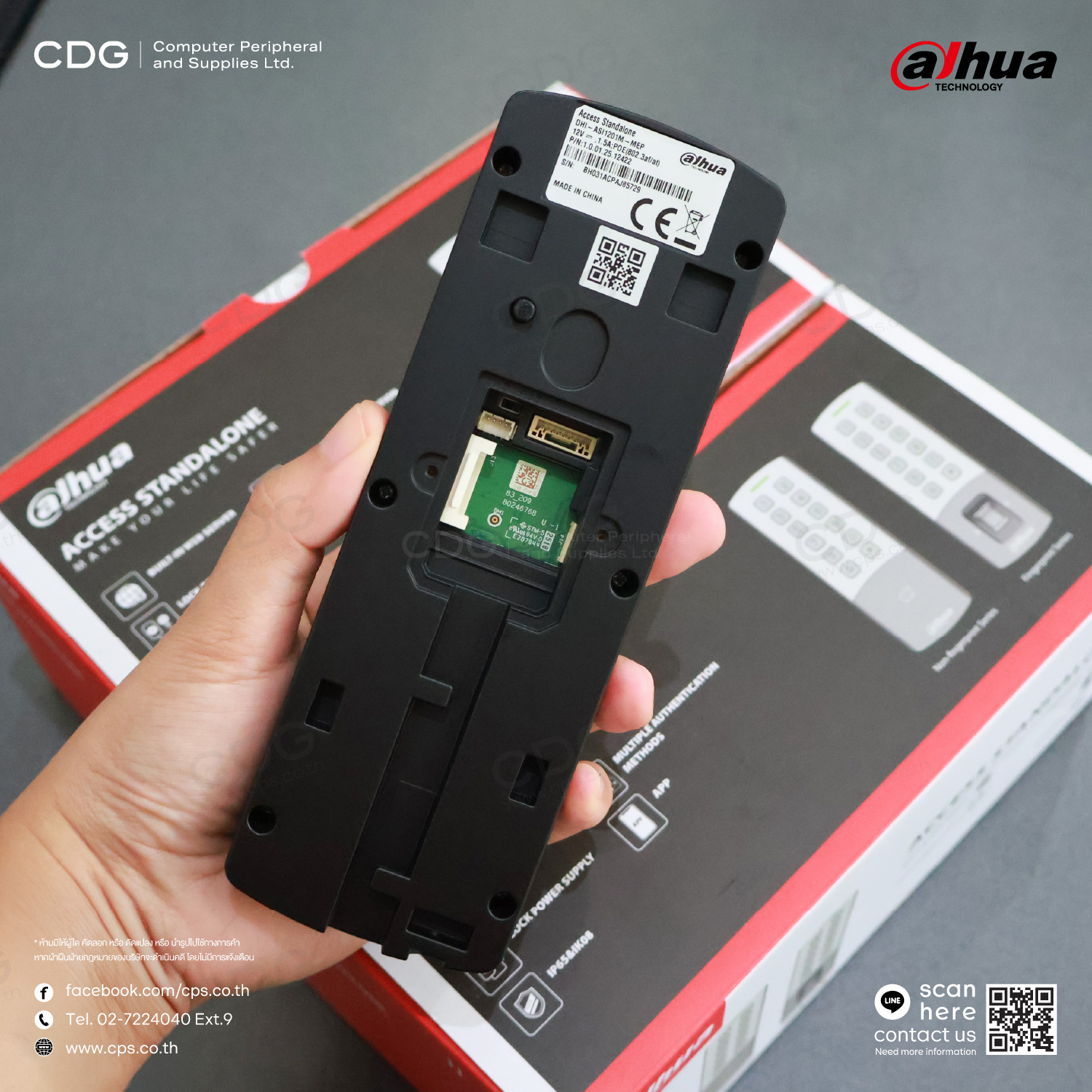

- The front part of the case is made of zinc alloy and the back part is made of plastic.
- Supports 10,000 users, 10,000 passwords, 10,000 cards, and 100,000 records.
- Mechanical keypad with backlighting.
- Supports RS-485 communication and Wiegand communication.
- Buzzer and indicator light.
- Supports doorbell.
- Offers multiple types of alarms such as duress, tamper, intrusion, unlock timeout, and excessive use of illegal card.
- Cards can be issued to multiple types of users such as normal, VIP, patrol, guest, blocklist, other, and custom users.
- Supplies power to 1 lock (12 V, 500 mA or lower) or 1 card reader (12 V, 200 mA or lower).
- Convenient to configure through its webpage that is accessible to both computers and mobile devices.
- PoE power supply.
- Supports security extension modules for access control, preventing doors from being forcefully opened.
- Online update.
- Supports TCP/IP connection, auto registration, P2P registration and DHCP.
- IP65 and IK08 rated.
- Supports surface mount.
- Compatible with multiple platforms such as SmartPSS lite, DSS PRO and DMSS.
Technical Specifications
- Model: DHI-ASI1201M-MEP
- Type: Standalone Access Control Terminal
- Authentication Methods: RFID card and password
- User Capacity: Up to 10,000 users / 10,000 passwords / 10,000 cards
- Event Log Capacity: Up to 100,000 records
- Material:
- Front: Zinc alloy
- Back: Plastic
- Keypad: Mechanical with backlight
- Communication: RS-485 and Wiegand
- Indicators: Buzzer and LED status lights
- Doorbell Support: Yes
- Power Supply: DC 12V
- Protection Rating: IP65 (waterproof) / IK08 (impact-resistant)
Special Features- High User Capacity: Suitable for medium to large organizations
- Multi-Type Alarms: Tamper, intrusion, repeated card error, door open timeout
- User Role Management: Supports general users, VIPs, patrol staff, visitors, blacklist, and custom roles
- Durable Build: Withstands outdoor environments with IP65 and IK08 ratings
- Standalone Operation: No network connection required for basic use
- Versatile Applications: Ideal for offices, factories, dormitories, and restricted areas
- System Expandability: Supports RS-485 and Wiegand for integration with other devices
- Secure and Reliable: Comprehensive access control and alert features
Datasheet : Dahua DHI-ASI1201M-MEP Card Swiping, Password Access Standalone
