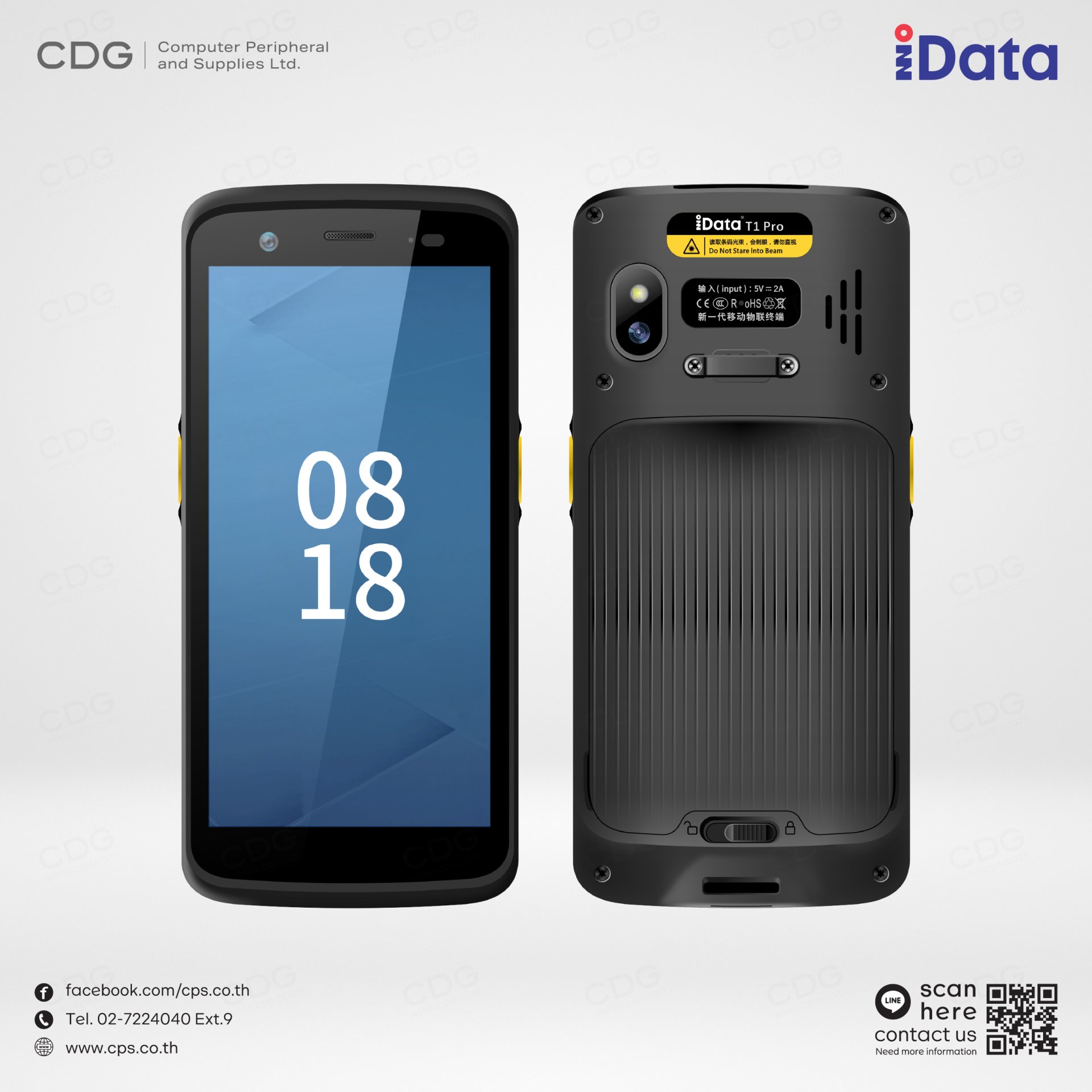

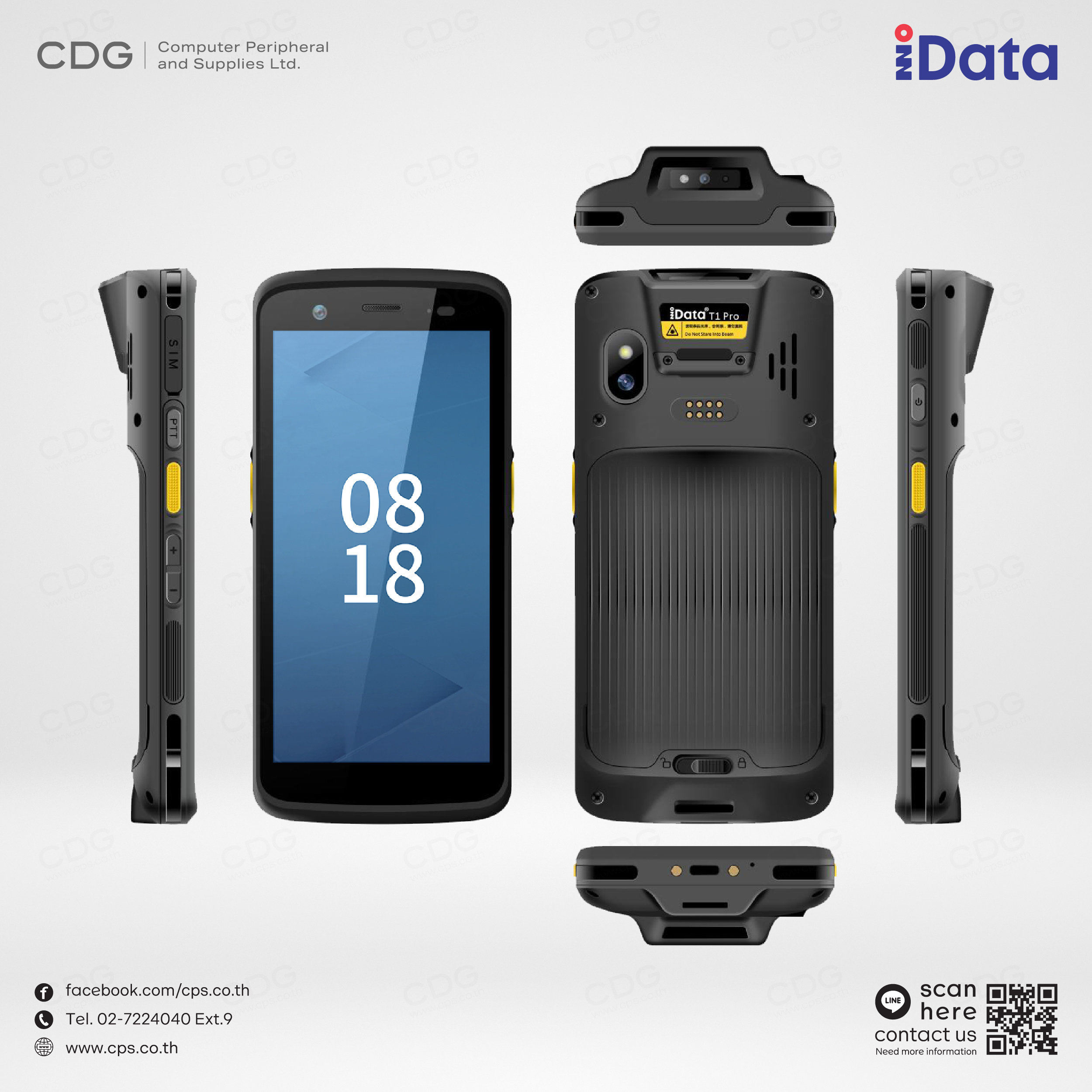

iData T1 Pro Mobile Scanner Smart Terminal 1D/2D Barcode

iData T1 Pro Mobile Scanner Smart Terminal 1D/2D Barcode

The iData T1 Pro is a rugged industrial PDA that combines durability with smartphone-grade performance. Powered by Android 14 and an Octa-core processor, it delivers fast and responsive operation. It features a 5.5-inch display, high-resolution cameras, and a 5000mAh removable battery. With advanced barcode scanning for both close and long-range tasks, it’s ideal for logistics, warehousing, and field operations that demand precision and reliability.

Special Features

• Smartphone-grade performance : Powered by a high-performance chip with AnTuTu score over 200,000 and Android 14 for smooth, responsive operation

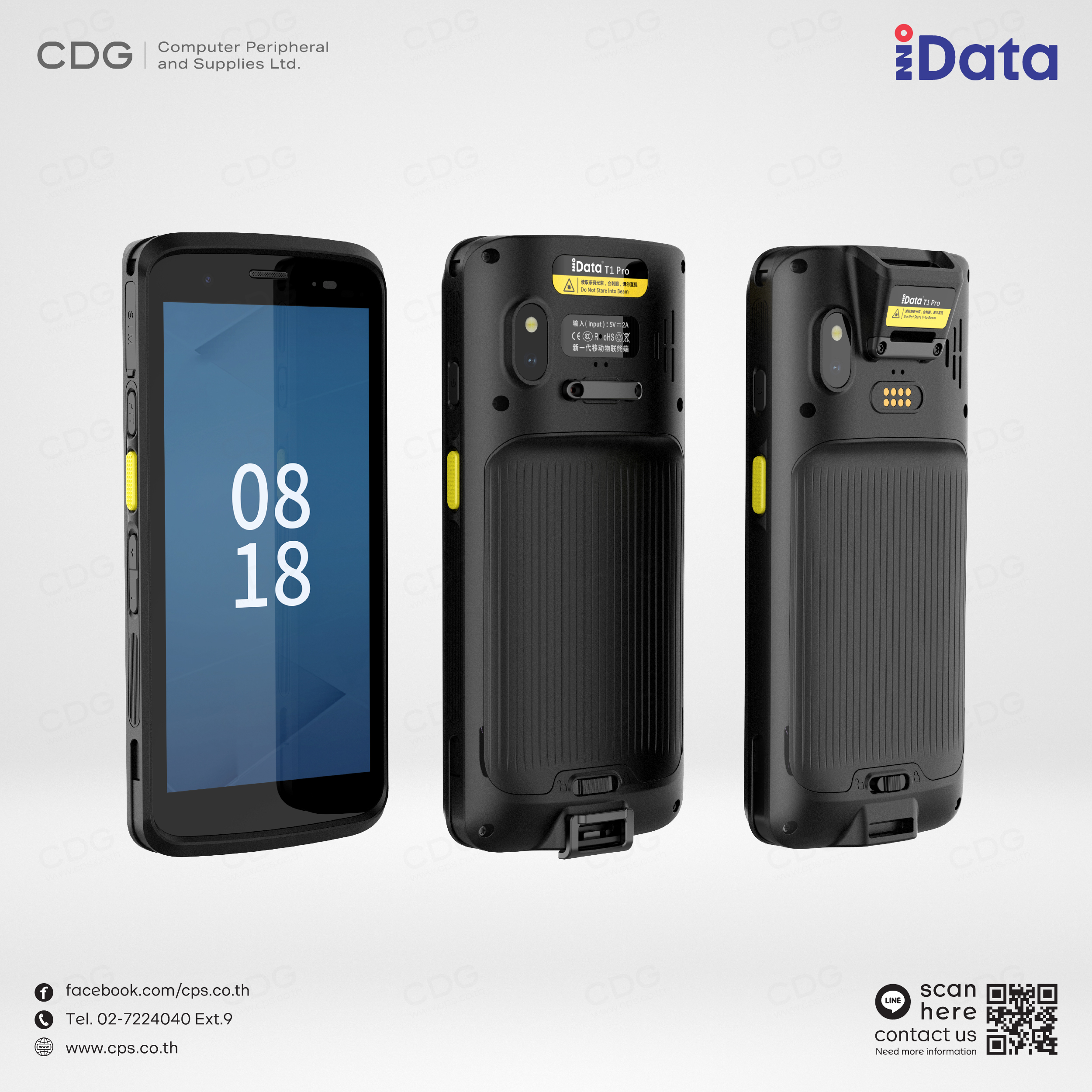

• Multi-angle and long-range scanning : Available in both straight and angled scan head models, with a 27° tilt for ergonomic use without lifting the device
• Removable 5000mAh battery : Supports continuous operation with hot-swappable battery and multiple charging options—ideal for large-scale deployments like warehouses and sorting centers
• Developer-friendly platform : Compatible with Java, Android Studio, and APIs for device management and barcode scanning integration

Specifications of iData T1 Pro

System & Hardware :

• Operating System: Android 14.0 (GMS certified)
• Processor: Octa-core 2.0GHz
• Memory: 64GB ROM + 4GB RAM (expandable via MicroSD up to 512GB)
• Dual SIM support (Nano SIM + Nano SIM or Nano SIM + TF card)
• Display: 5.5-inch IPS screen with 1440×720 resolution
• Rear Camera: 13MP (Auto-focus/PDAF), Front Camera: 5MP
• Battery: 5000mAh removable lithium battery with backup support
• Fast charging: 18W via Type-C and Pin port
• Sensors: G-Sensor, Proximity, Light, Gyroscope, Geomagnetic, optional Barometer

Connectivity :

• Supports global 2G/3G/4G networks
• Wi-Fi 802.11a/b/g/n/r/ac (2.4G + 5G) with fast roaming
• Bluetooth 5.0 with BLE
• GPS systems: GPS, AGPS, BDS, Galileo, GLONASS, QZSS
• NFC: 13.56 MHz, reading distance up to 40mm, supports ISO14443A/B/15693

Durability & Environment :

• IP67/IP65-rated for water and dust resistance
• Drop resistance: 1.5 meters and 1000 tumbles from 0.5 meters
• Operating temperature: -20°C to 60°C
• Storage temperature: -40°C to 60°C (excluding battery)
• Humidity: 0–95% (non-condensing)
• Electrostatic protection: ±15KV (air), ±8KV (contact)

Barcode Scanning :

• Supports both 1D and 2D barcodes
• Scanning precision ≥3.33mil
• Angle tolerance: Pitch ±60°, Skew ±45°, Tilt 360°
• Motion tolerance: up to 8m/s

Datasheet : iData T1 Pro Mobile Scanner Smart Terminal
