Swing Gate A306
It is a door to block people from entering and exiting, Swing Gate model A306, which is designed to be durable, strong, modern, and highly secure. Suitable for various locations in Thailand and also suitable for off-site installation. or outdoors as well
Features :- It is a device that will help you screen people entering and exiting.
- Can connect to various devices (Access Control) such as face scanners, fingerprint scanners, card readers.
- There is an anti-pinch sensor for safe use.
- It is designed to be durable, strong, modern and can be installed outdoors. and has high safety
- Automatically reset the barrier arm after each pass.
- Adjustable time delay
Swing Gate : CRT – A306- Passage width :< 900mm
- Throughput rate :35p/m
- Power supply :100~240V(ac)
- Operational voltage :24V(dc)
- Max power consumption :35w
- Frequency :50~60hz
- Prectection level : > 44ip
- Working temperature : -25~+70 ํC
- Electro-magnetic drive :dc
- Size :1400x185x1020mm
- Net weight :95kg
Features & Benefits- Heavy-duty design for 24 hours continuous application
- Heavy duty pull type
- Indoor or Outdoor application
- High durabiity with industrial parts
- All the running is quiet without any noise and shocks
Datasheet : Swing Gate A306

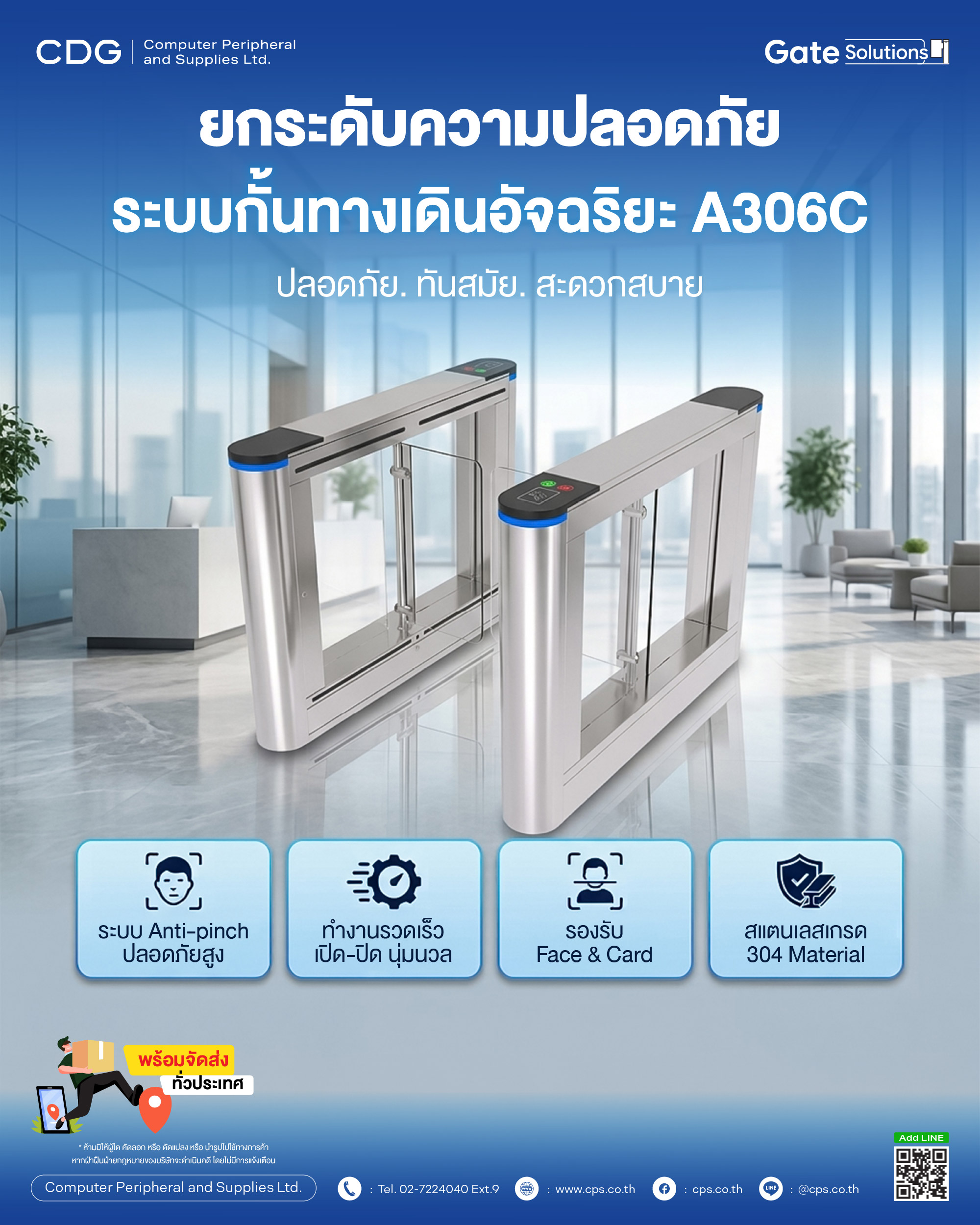

Swing Gate A306C Automatic Swing Barrier Turnstile
The Automatic Swing Barrier Turnstile A302C is a modern access control gate. Built with highquality stainless steel for strength and durability. Transparent acrylic swing arms provide a sleek and stylish design. Equipped with 6 pairs of infrared sensors for safety and anticollision. Supports throughput of up to 35 persons per minute for continuous use. Powered by AC 100–240V with a brushless servo motor. Clear LED indicators and flexible multilane installation options. Ideal for hotels, gyms, office buildings, and schools with heavy foot traffic.
Key Specifications
- Model: A302C
- Dimensions: 1500 × 150 × 980 mm
- Passage Width: 600–900 mm
- Net Weight: 65 kg
- Cabinet Material: SUS304 stainless steel, thickness 1.2–1.5 mm
- Swing Arm Material: 10 mm transparent acrylic
- Motor: Brushless servo motor
- Infrared Sensors: 6 pairs
- Throughput Rate: 35 persons/minute
- Power Supply: AC 100–240V, DC 24V, max 100W
- Operating Temperature: -25 to +70 °C
- MCBF (Mean Cycles Between Failure): 10,000,000 cycles
Special Features – Swing Gate A306C
- High-Level Safety with Dual Sensors: Equipped with six pairs of infrared sensors for precise pedestrian detection, including anti-tailgating and anti-reverse protection.
- Anti-Pinch Protection: If the sensors detect a person or object obstructing the swing barrier, the gate will stop or open automatically to prevent pinching or injury.
- Bi-directional Access: Configurable for one-way or two-way passage depending on site requirements.
- Access Control Compatibility: Intelligent circuit board allows integration with various authentication systems such as face recognition, fingerprint scanners, RFID card readers, QR code readers, or even coin-operated payment systems.
- Fail-Safe / Emergency Mode: In case of power failure or emergency alarms (e.g., fire alarm system), the swing barrier automatically opens to allow safe and rapid evacuation.
- Quiet & Smooth Operation: Motor operates at ≤65 dB with advanced braking and motion control, ensuring soft closing without noise or vibration.
- Self-Test Function: Built-in smart chip continuously monitors internal operations. Errors trigger audible and visual alerts, enabling quick maintenance and troubleshooting.
Datasheet : Swing Gate A306C Automatic Swing Barrier Turnstile
What is a Swing Gate?
A Swing Gate (Model A306C) is part of the Pedestrian Access Control Turnstile system, designed to regulate and control the entry and exit of individuals.
Key Features
- Materials & Structure: The housing is typically made of stainless steel (e.g., grade 304) for durability and corrosion resistance. The swing barrier panels are acrylic, offering transparency and strength, often integrated with LED indicators (green = access granted, red = access denied).
- Drive System: Powered by DC motors or brushless motors, ensuring smooth, fast, and quiet opening and closing of the gate.
- Access Control Integration: Compatible with various access control systems, including:
- RFID card readers
- Face recognition devices
- Fingerprint scanners
- Barcode or QR code readers for visitors
- Safety Features: Equipped with multiple infrared (IR) sensors for anti-pinch protection (preventing the gate from closing on users) and anti-tailgating detection (alerting when someone attempts unauthorized entry by following another person).
- Common Installation Sites: Widely used in office lobbies, condominium entrances, industrial facilities, fitness centers, and libraries, as they provide a modern, transparent, and aesthetically pleasing access solution.
Installation work
Actual location at a private company
Installation Showcase 2

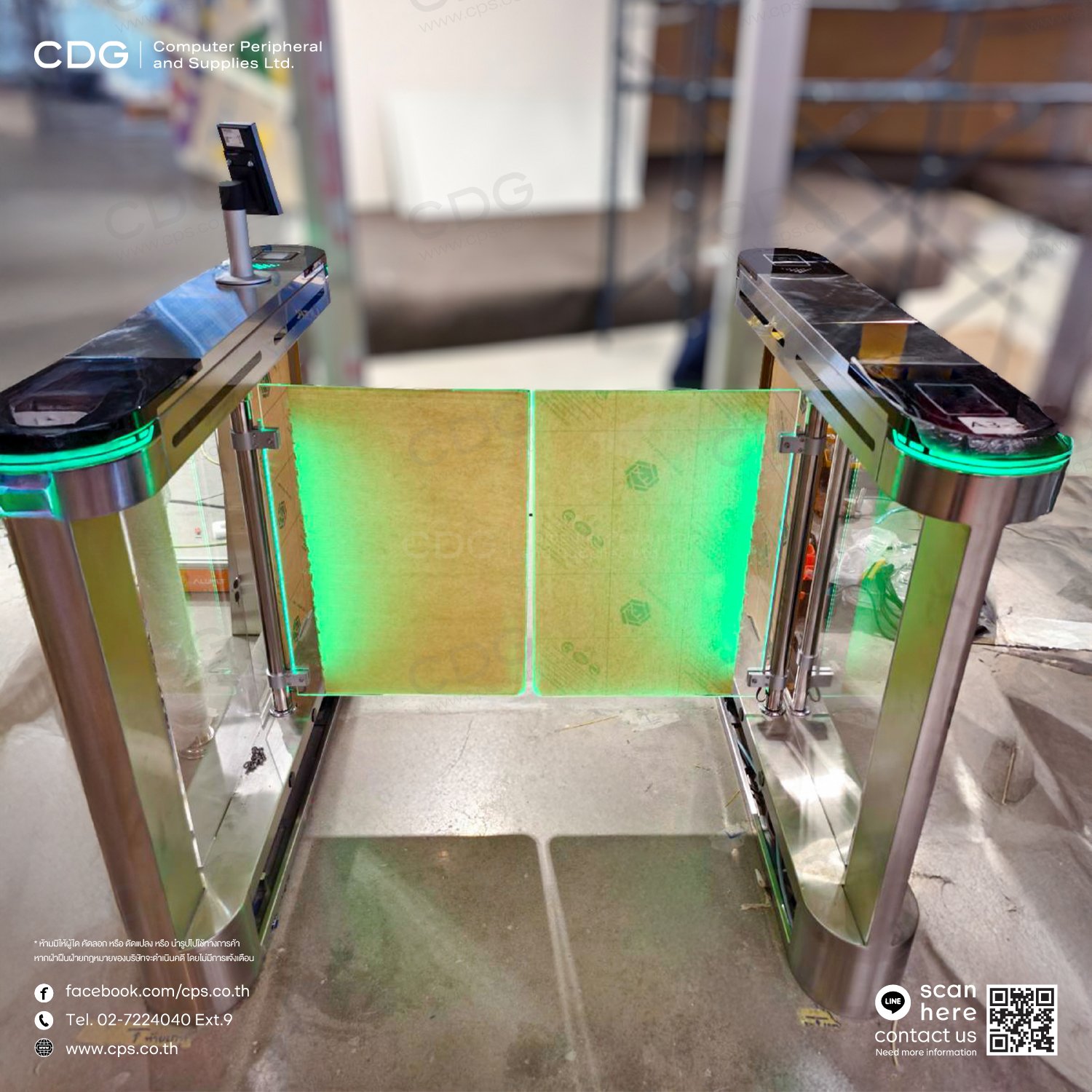

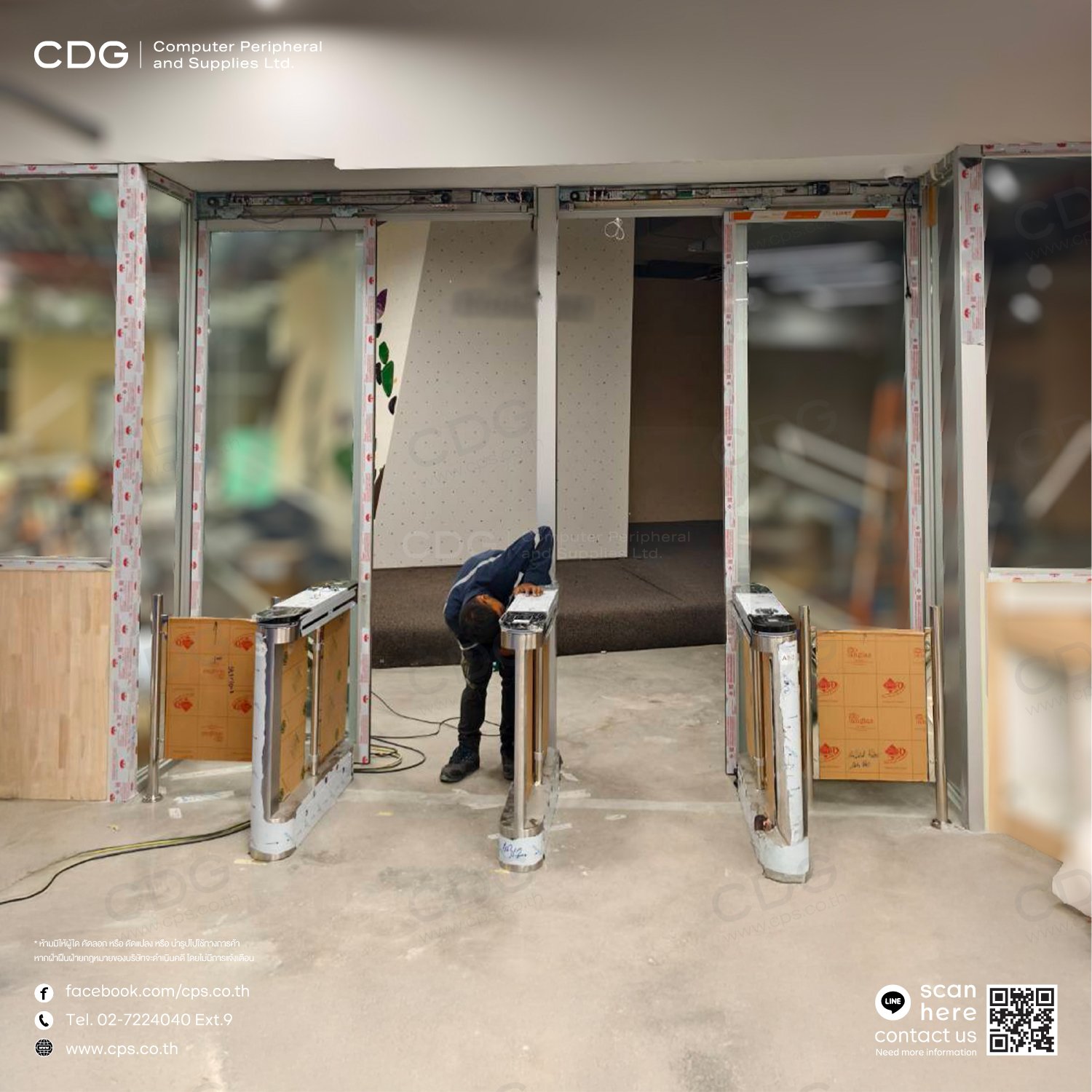

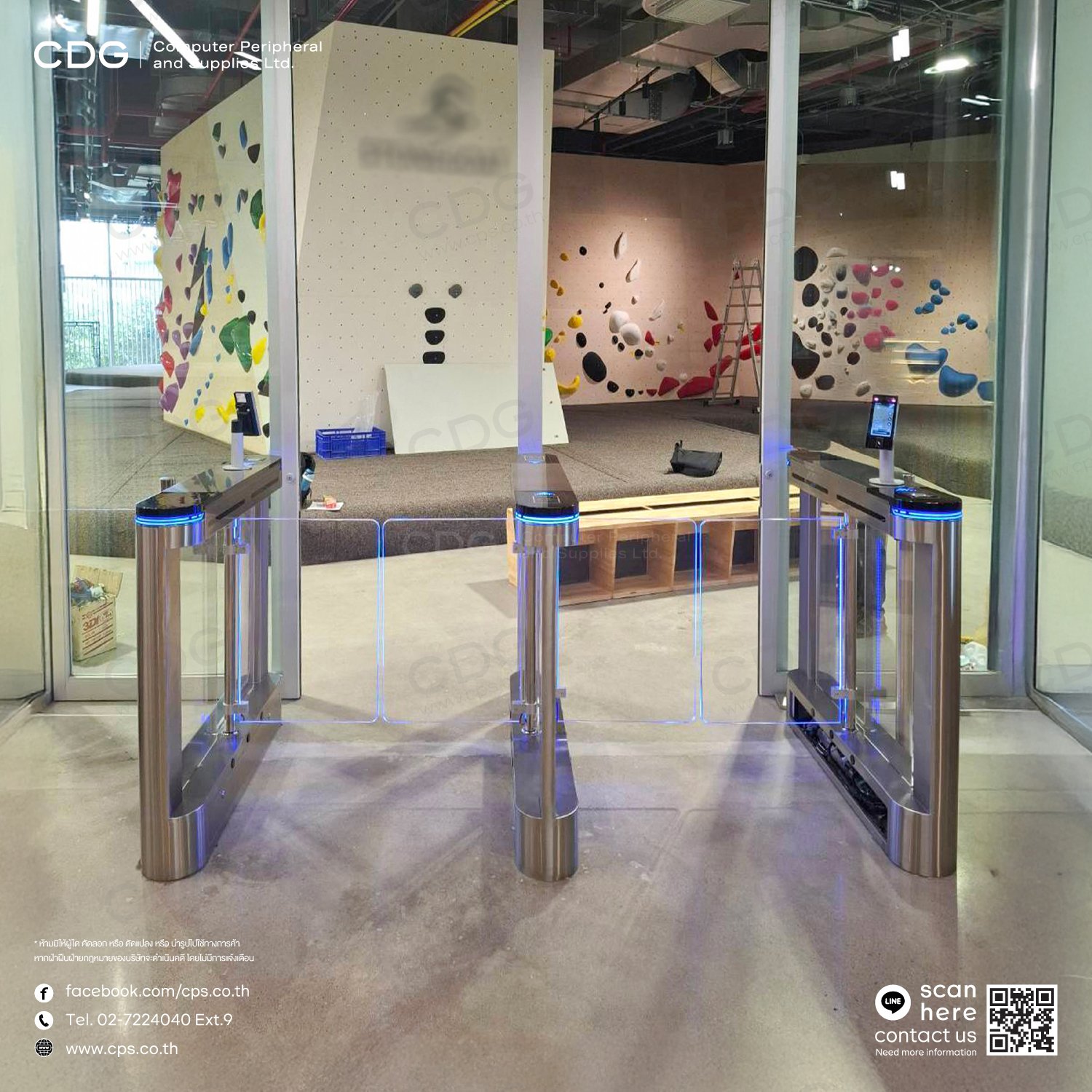

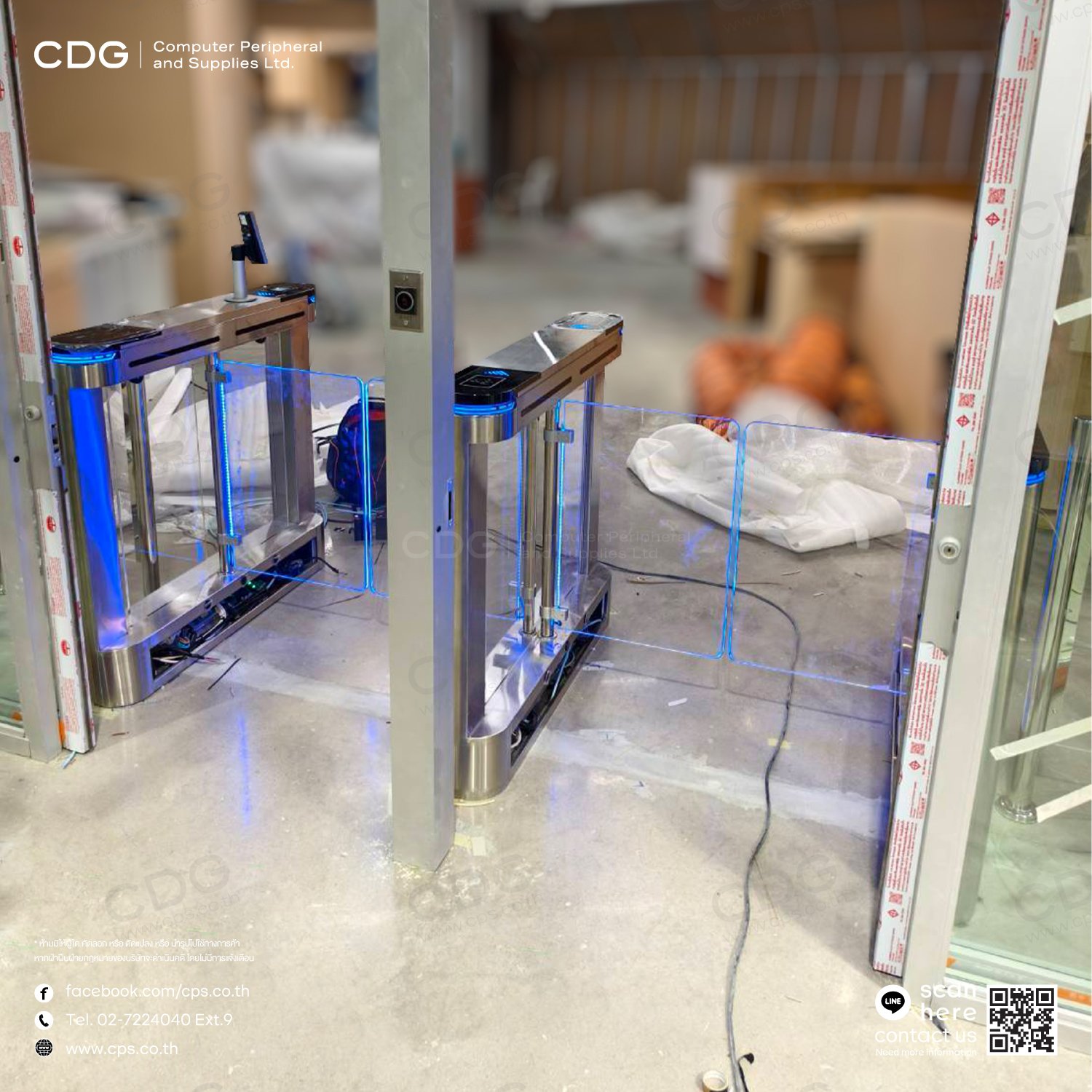

Automatic Swing Gates (Model A306N – Left / Right / Middle) installed at the main entrance/exit.
Real-site installation at a private company in Bangkok.
Professionally installed by our experienced technicians, with full guidance and step-by-step user training provided.
Installation Project

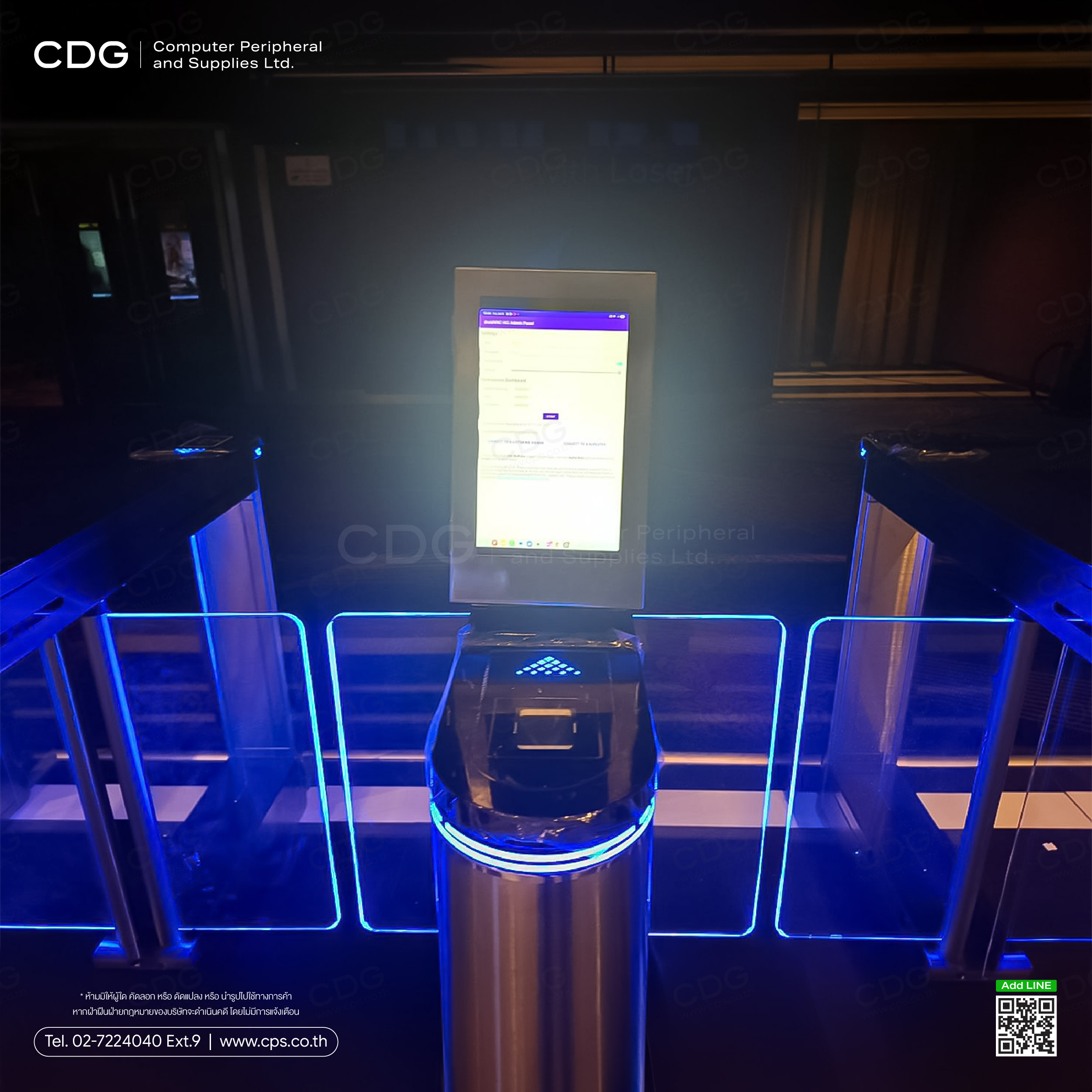

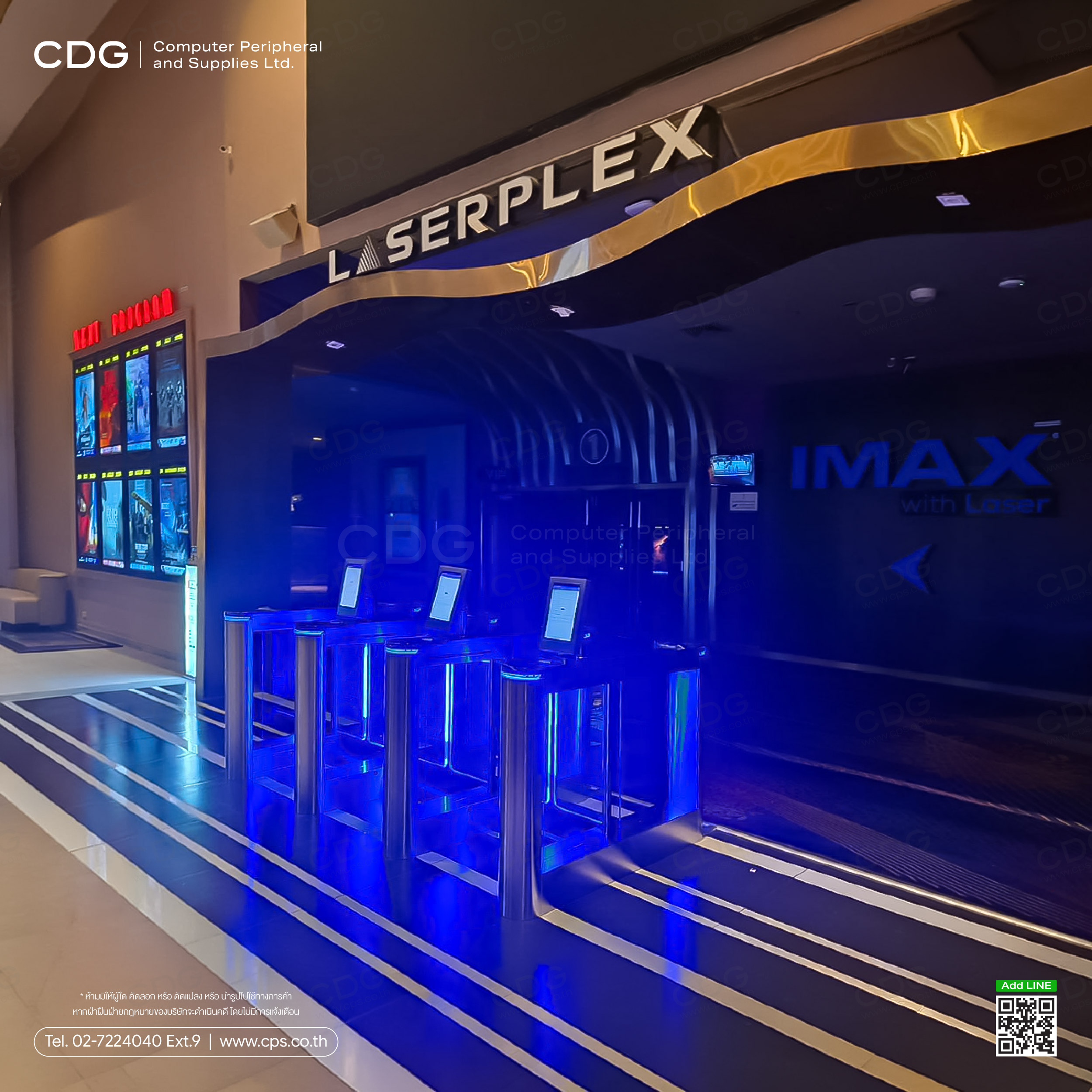

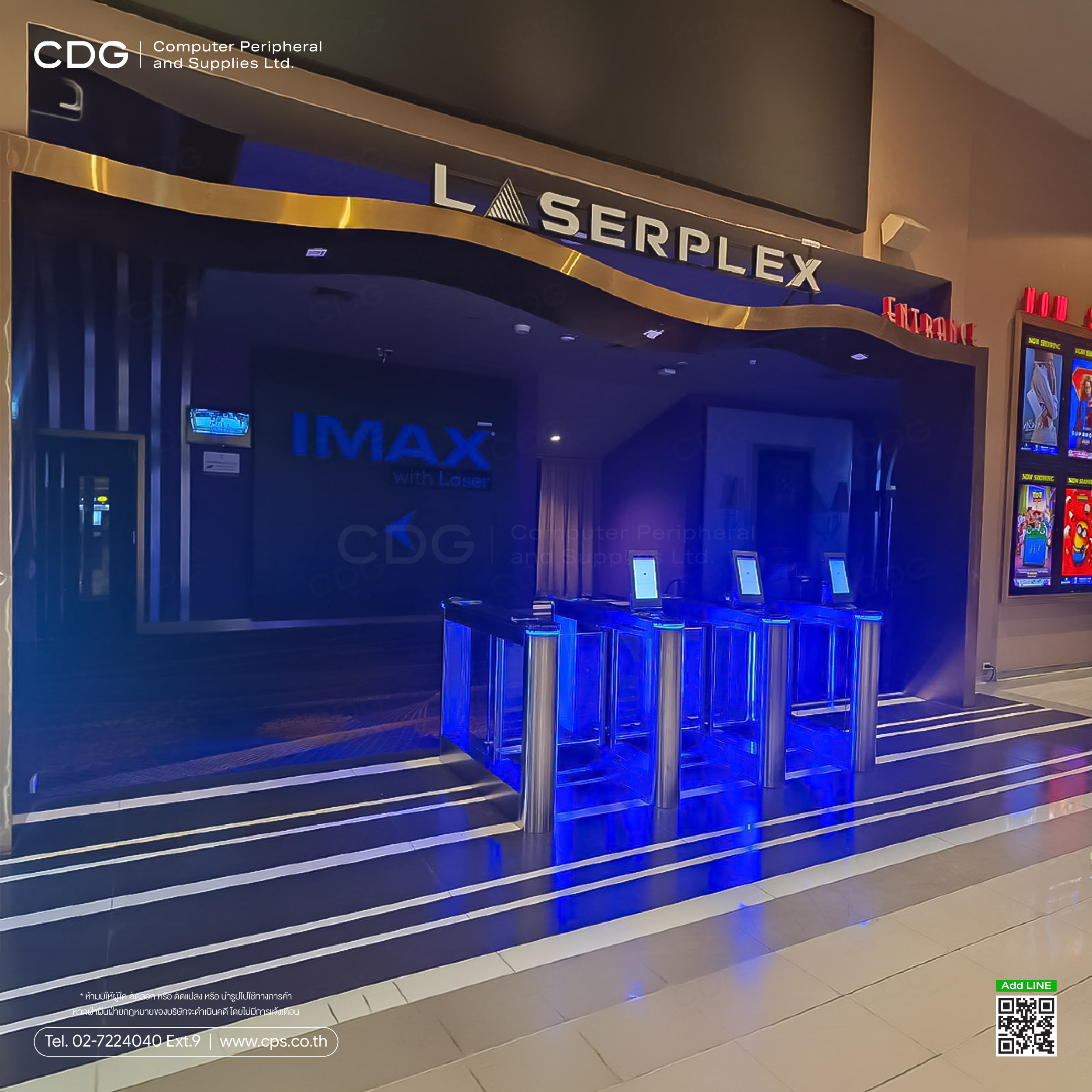

At a cinema in Chiang Mai.
Automatic swing door, acrylic door, Swing Gate A306C, Size 1400x185x1020 MM, Left, Right, Middle (Access Control).
Installation service by an experienced team of technicians, providing advice and training on how to use the system at every step.
