Stainless Steel Swing Gate Model X310

Installation Stainless Steel Swing Gate Model X310

ผลงานการติดตั้งประตูอัตโนมัติ แบบบานสวิง
(Stainless Steel Swing Gate) รุ่น X310 ตรงประตูทางเข้า-ออก

Stainless Steel Swing Gate Model X310

The compact design swing barrier gate X310 is a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. It can be integrated with RFID access control system, remote control or switch button. The X310 is an attractive swing turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.

Functions & Features :

• Reasonable and reliable design, low noise, smooth operation and long service life；Reasonable and reliable design, low noise, smooth operation and long service life；
• With function of opening doors automatically under power-off state to meet the need of fire-fighting passage；
• With functions of anti-tail, anti-reverse pass and so on;
• Card can be set "with memory" or "without memory" functions;
• With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set;
• With infrared anti-clip function (anti-clip when gate is open or running);
• Compatible with IC, ID card, scanning and face recognition,etc.
• Two modes of operation are available: open or closed.
• Various working modes are available, including two-way card reading and one-way card reading,etc.

Specifications :

• Material : 1.2/1.0mm SUS304
• Size : 200*200*980mm
• Sensor pairs : 5 pairs
• Pass rate : 35p/m
• Pass width : 600-900mm
• Input voltage : 100V~240V
• Motor type : DC brush motor
• Environment : -20~+70
• Power supply : 24V 150W
• Net weight : 30kg

Datasheet : Stainless Steel Swing Gate Model X310

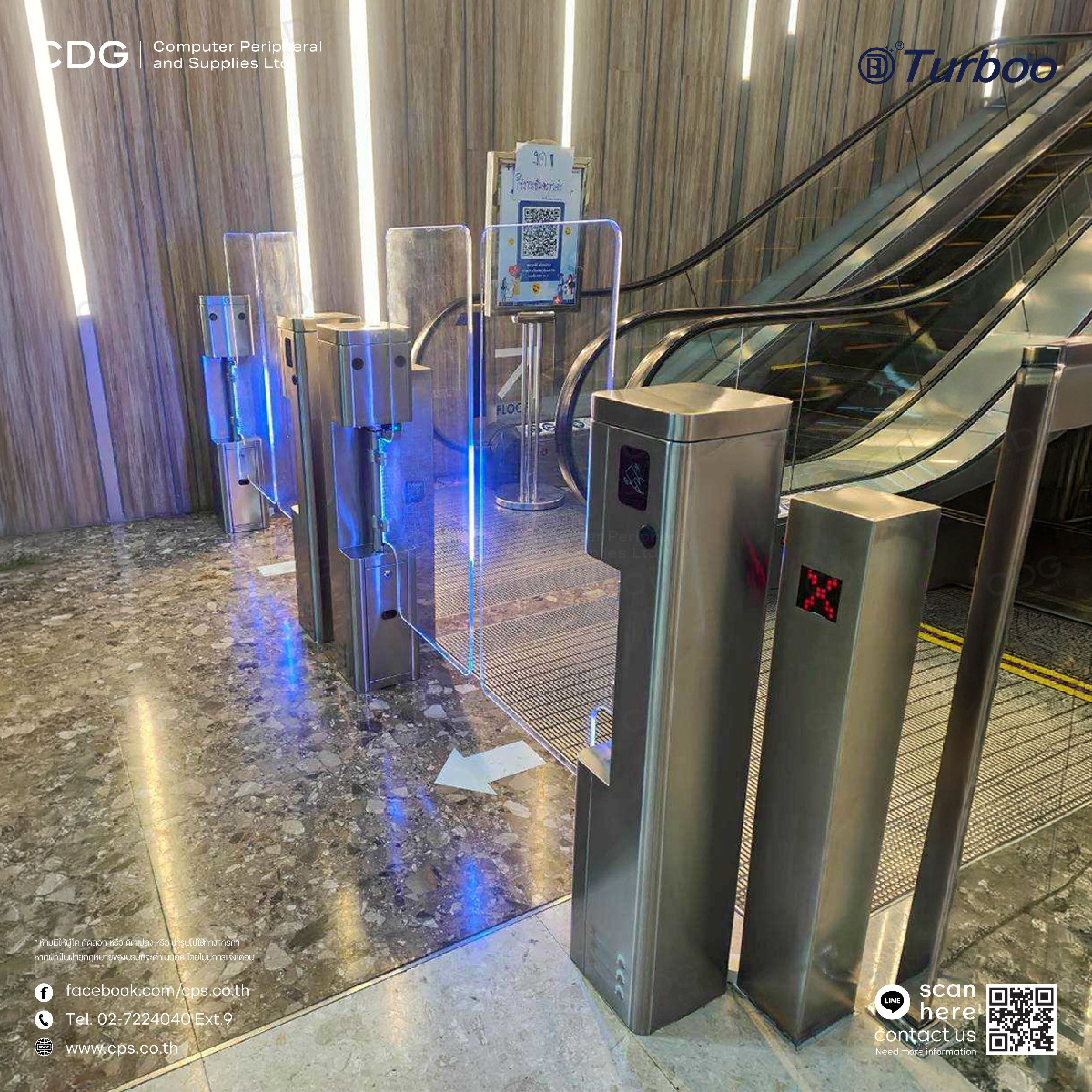

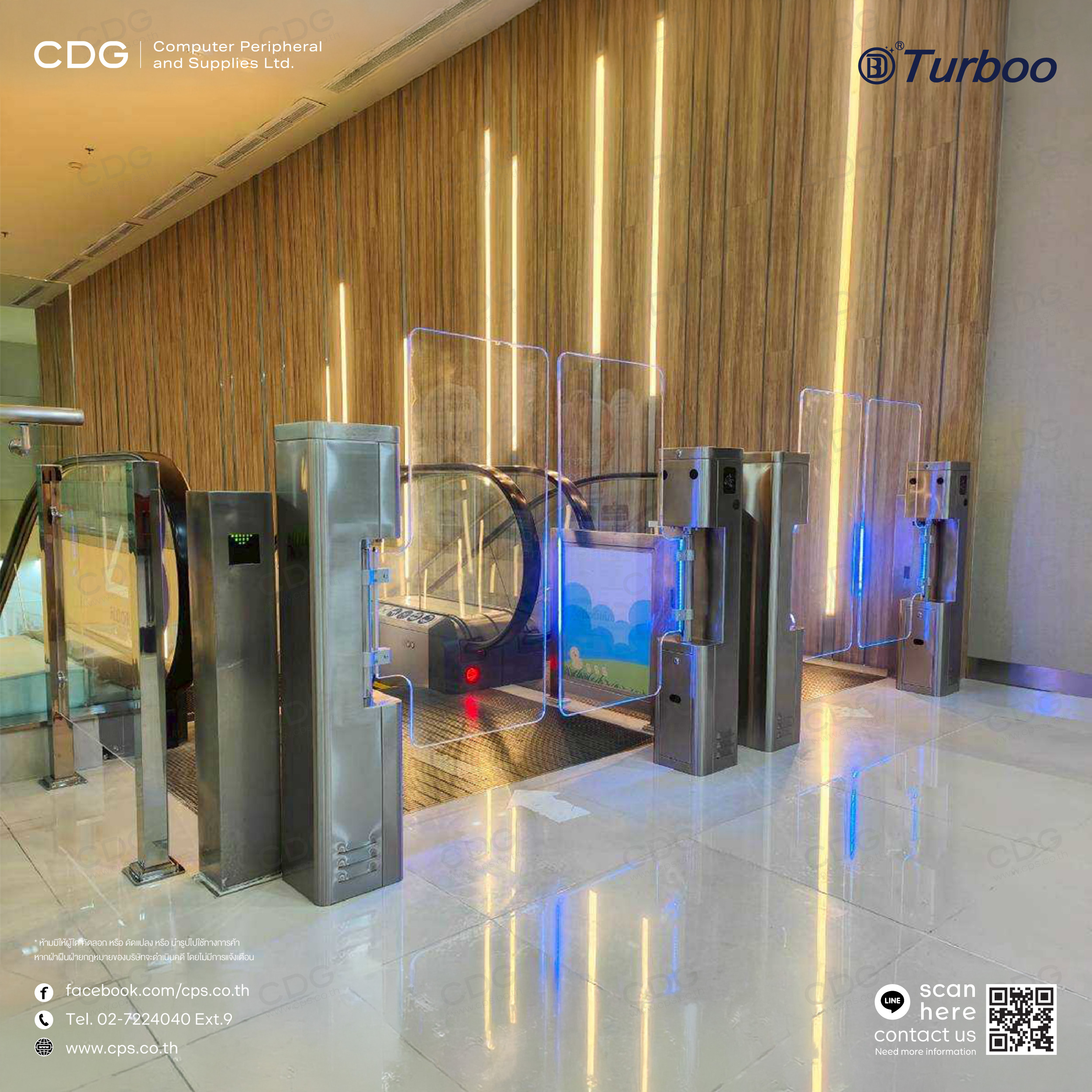

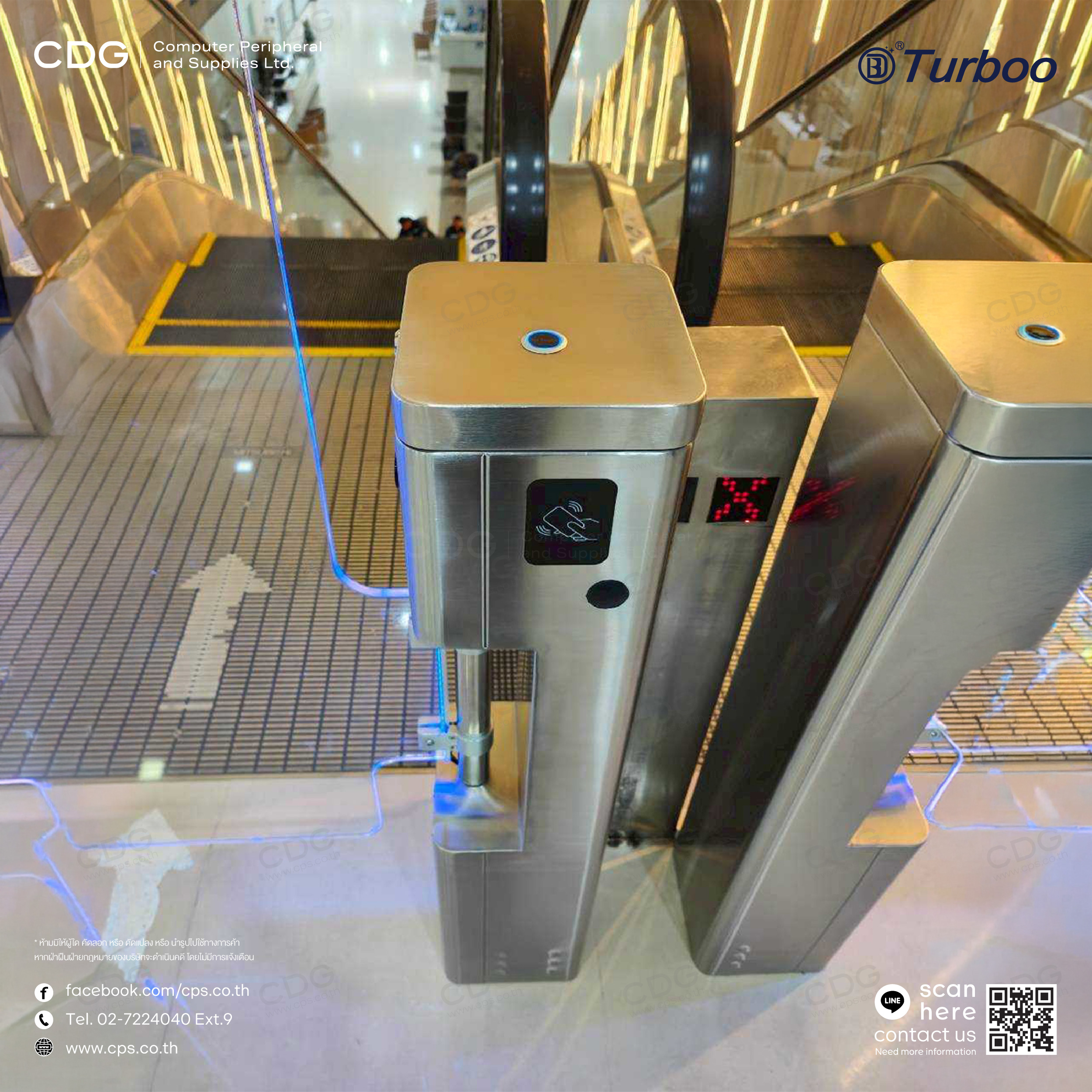

Swing Gate X310 With Acrylic Arm And Led Strips

Swing gate model X310 Easy to install Acrylic and Stainless doors are rust-free, strong, durable Swing doors are smooth, safe, strong Use to control entry and exit Suitable for condominiums, hotels, bus stations, entertainment venues, universities, schools, all types Can be applied to card readers, fingerprint scanners, various types

Automatic door installation work Swing type Acrylic door Swing Gate X310 With Acrylic Arm And Led Strips At the entrance and exit Install a 4-lane gate

Functions :

Dimension :

Installation results 3
The actual location is at a department store in Chonburi Province.

Installation results 4
The actual location is at a shopping mall in Phuket province.
