iData K8 (GMS) Ultra Rugged Android Mobile Computer Terminal

iData K8 Mobile Computer (Industrial dedicated terminal)

portable handheld scanner Controlled by Android 11.0 / Bluetooth 5.0 operating system, the K8 can be connected to headphones, printers and other devices. Supports reading 1D and 2D barcodes, comes with an extra large 6700mAh battery, making it more durable, improving the operational efficiency of warehouses / factories / all industries.

• iData has anticipated future challenges, from the processor and memory to the system and subsequent Android support; the K8 will be able to run upgraded systems or apps in the future, thus extending its lifespan and will benefit every enterprise in the long run
• The K8 is designed to fit into complex environments - both the ultra-rugged ingress protection and the ultra-big 6700mAh battery make it more durable
• The device can survive accidental drops from a forklift and withstand long working hours
• It improves the operational efficiency of warehouses/ factories
• The device supports scanning up to 21.4m; forklifts can scan barcodes off shelves and goods from a long distance
• With Bluetooth 5.0, the K8 can connect to all kinds of earphones, printers and various other devices

System Configuration

• Processor : Octa-core 2.0GHz high-performance processor
• Operating System : Android 11.0/ Android 12.0(GMS)
• Memory (ROM+RAM) : 64GB + 4GB
• SIM : Dual SIM card
• Expansion Slot : Micro SD card (up to 256 GB)
• Display Screen: 4-inch, resolution - 800 x 480 pixels
• Touch Screen : Industrial capacitive screen, support wet-hand operation/ glove mode/ multi-touch/ gesture operation
• Camera : 13 megapixels rear camera, supports auto-focus, 5 megapixels front camera
• Flashlight : 800mA flashlight
• Keypad : 34 keys in total - front keys (29), side scan keys (2), side PTT key (1), side ± volume keys (2)
• Battery : 3.85V lithium battery (6700mAh) - detachable; backup-battery support
• Audio : Built-in dual microphone (noise-canceling microphone)
• Charging Method : Type-C charging and pin port charging, supports 9V/2A, 5V/3A fast charging
• Reminder : High-power speaker/ 3 sides scan LED reminder/ Vibration reminder/ Charging LED reminder
• Vibrating Motor : Built-in vibrating motor
• Sensors : G-sensor/ Proximity sensor/ Light sensor
• Intercom Function (Optional) : Supports one-button PTT calls
• Barcode Type : It can scan one-dimensional / two--dimensional barcodes
• Bluetooth : Bluetooth 5.0, supports BLE
• Working Frequency : 13.56 MHz
• Reading Distance : Within 60 mm
• Communication Protocol : ISO14443A/14443B/15693
• Drop Specification : Multiple drops to concrete floor from a height of 1.5m (without protective case), multiple drops to concrete floor from a height of 1.8m (with protective case)
• Roller Drop Specification : 500 times of roller drops from a height of 1m
• Ingress Protection : IP68
• USB Interface : Type-C (with headset function) x 1

Accessories

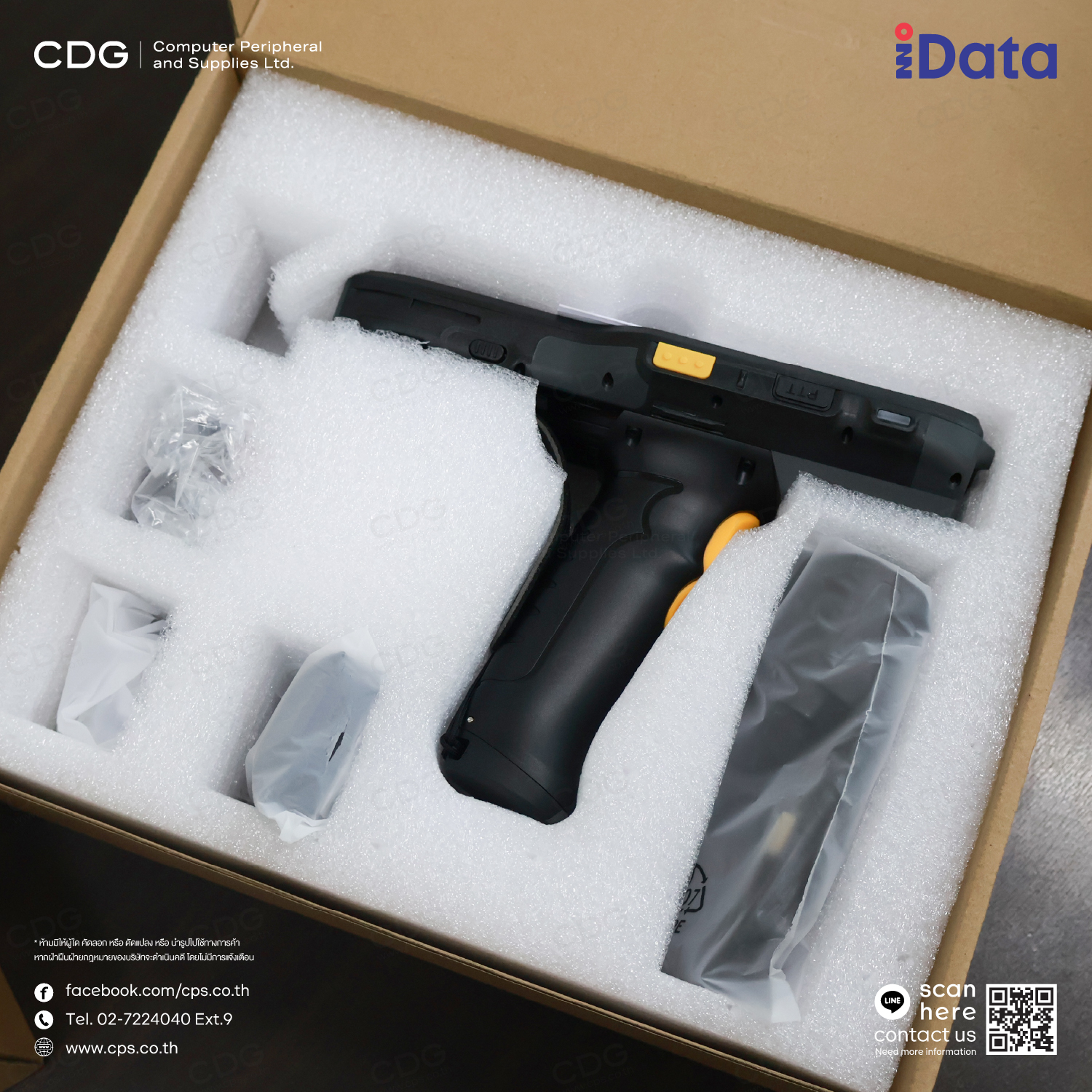

• Standard Accessories : USB cable x 1, power adapter x 1, hand strap x 1, device-back strap x 1, battery x 1
• Optional Accessories : Single charging cradle, bottom charger, 4-slot charging cradle, 4-slot battery charging cradle, pistol grip, protective case

Datasheet : iData K8 Mobile Computer
