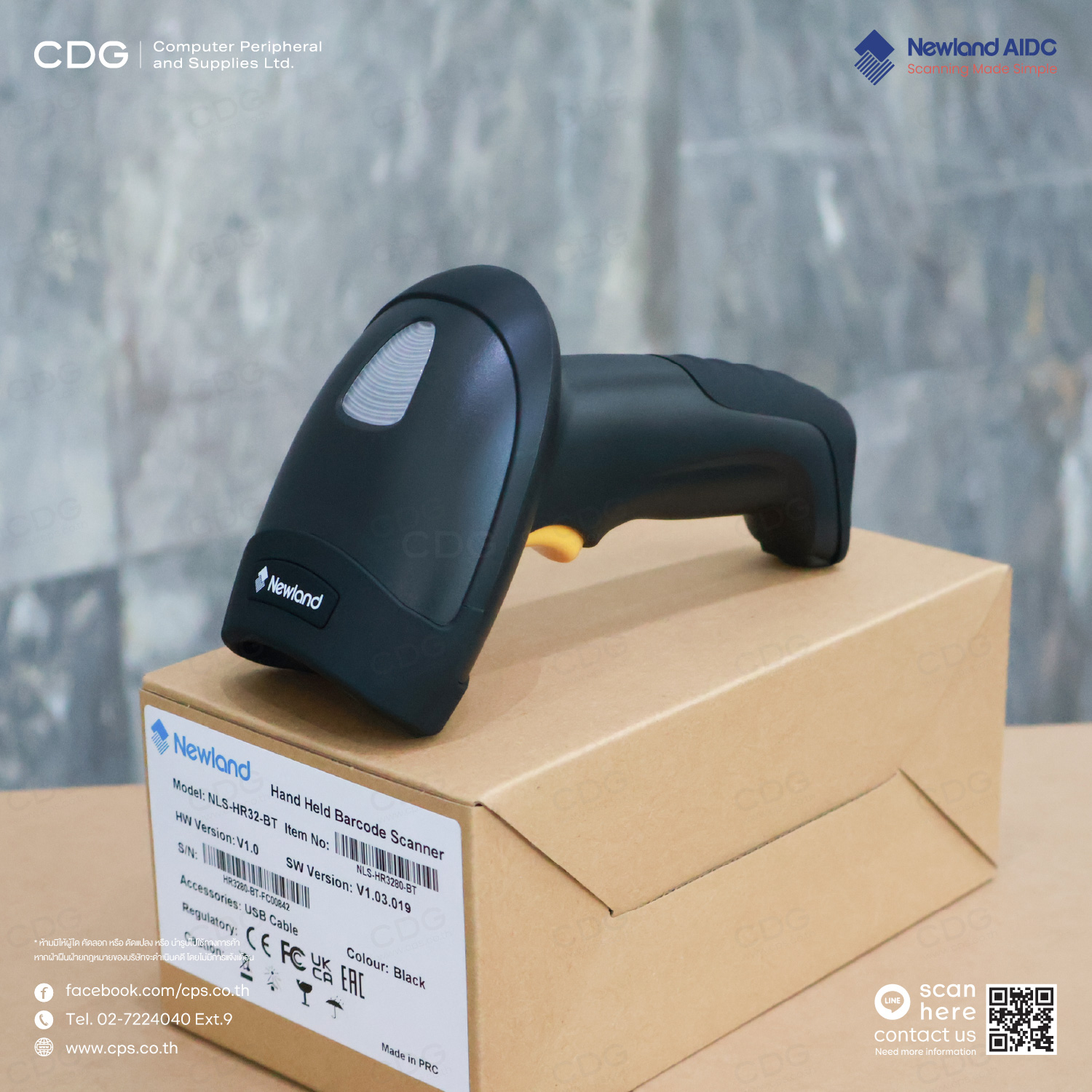

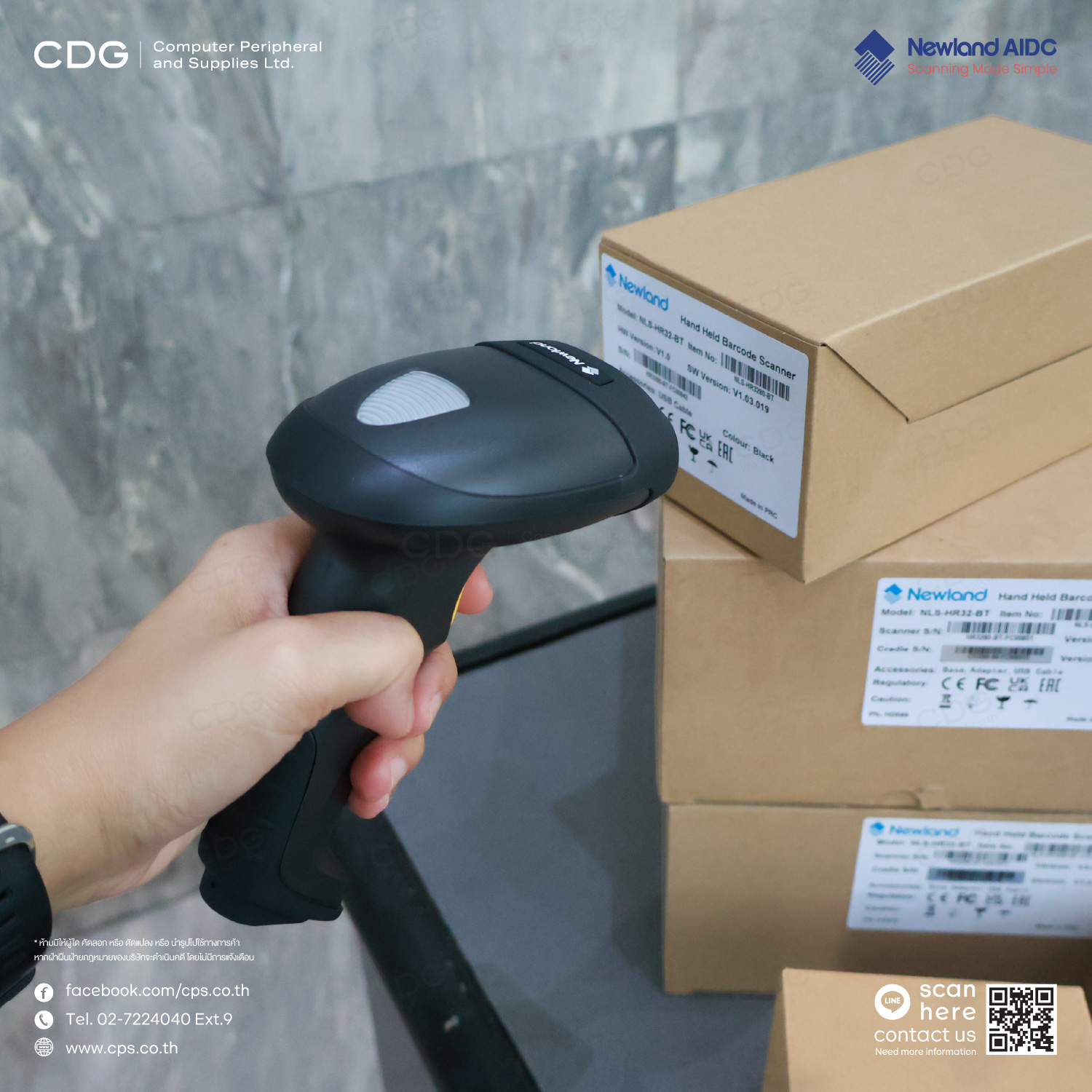

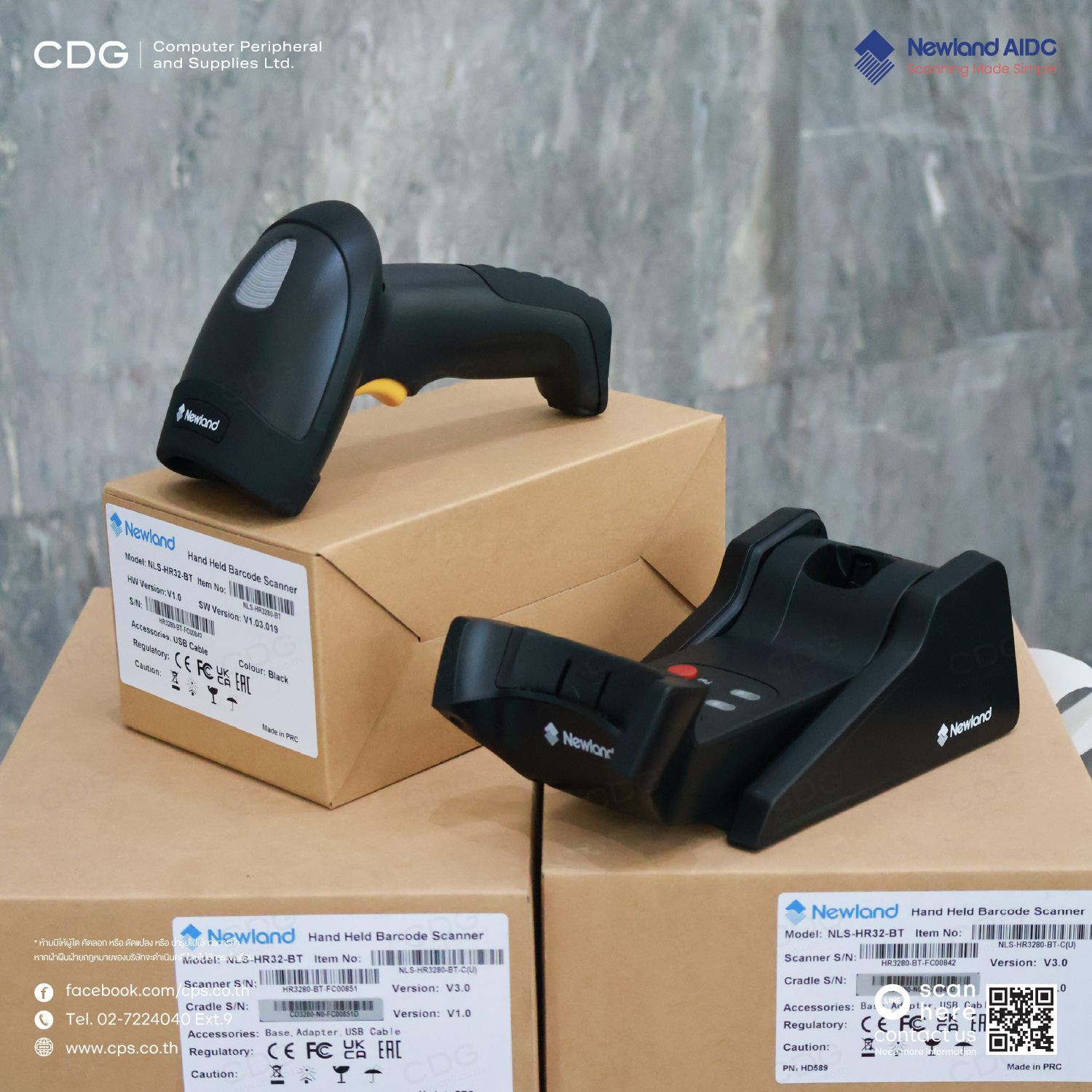

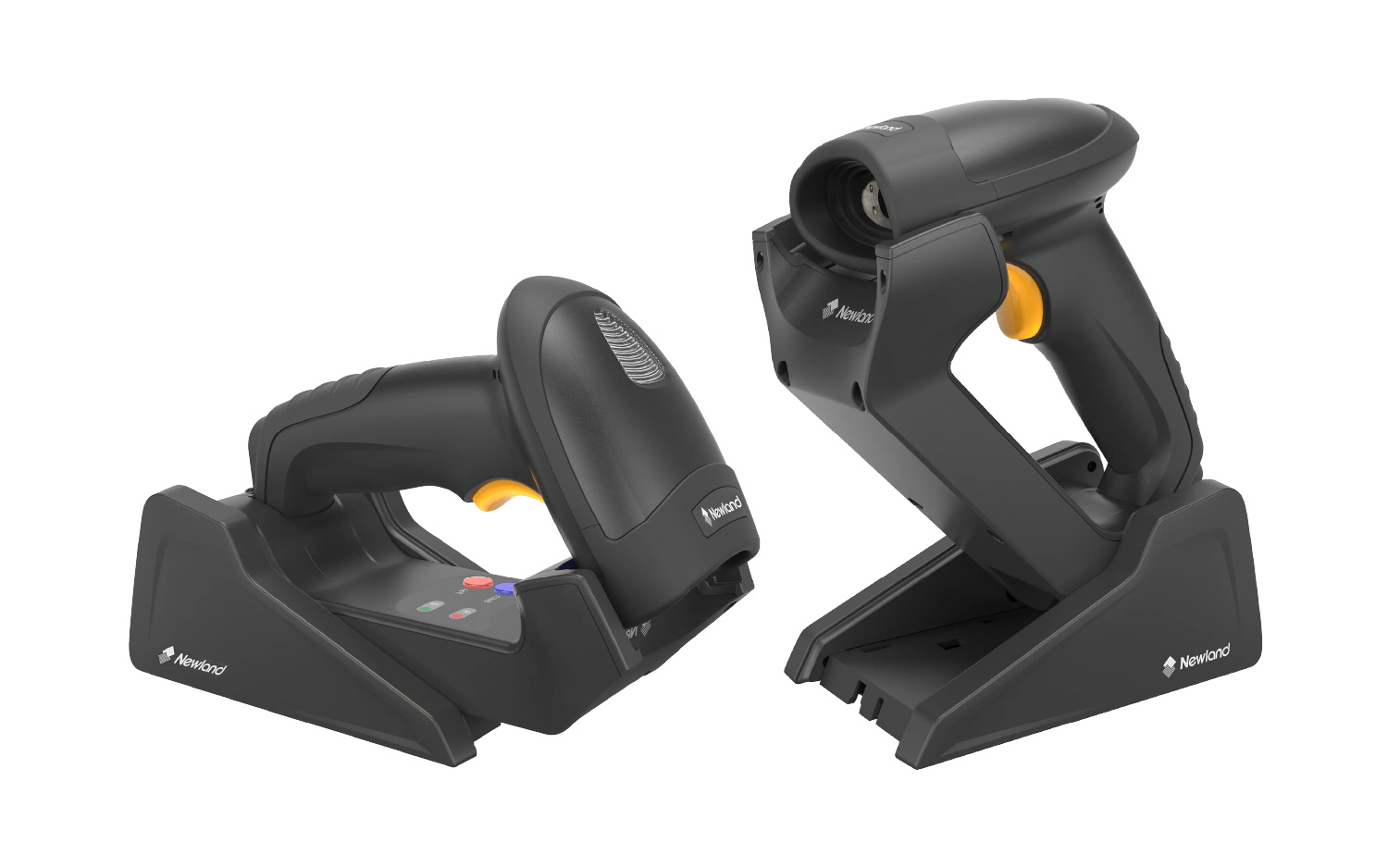

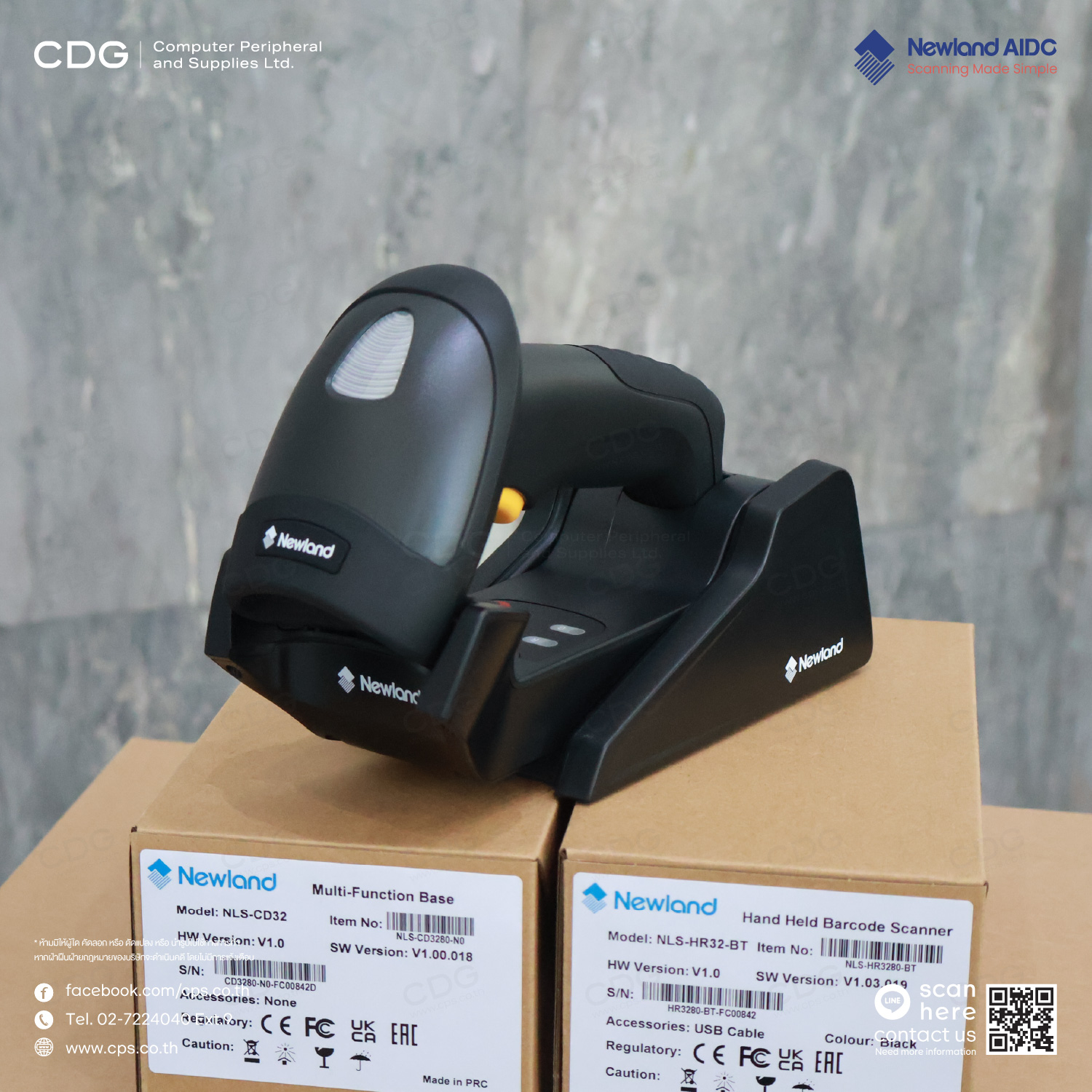

Newland NLS-HR3280-BT 2D Bluetooth Handheld Scanner
This wireless barcode scanner delivers high-performance scanning through its advanced megapixel sensor. It accurately captures barcodes even when they are small, high-density, or displayed on mobile screens. The Bluetooth 5.0 technology ensures a stable connection with a transmission range of up to 50 meters. Its user-centric design features adjustable illumination colors to effectively reduce eye strain during long shifts. With a large internal memory, it can store over 15,000 barcodes, making it ideal for offline Batch Mode. Additionally, its rugged build offers IP42 protection and 1.5m drop resistance for lasting durability in any workplace.
Special Features
- Outstanding Performance: Equipped with a Megapixel camera (1280x800 resolution), allowing it to scan 1D and 2D barcodes quickly and accurately, even those that are very small or high-density.
- Humanized Illumination: Features adjustable LED lighting (White or Red), allowing users to choose the best lighting for their environment to reduce eye fatigue and improve productivity.
- Bluetooth 5.0: Utilizes the latest Bluetooth technology for high stability and strong anti-interference capabilities, with a transmission range of up to 50 meters (in open space).
- Versatile Operation Modes: Supports three data transmission modes:
- Synchronous Mode: Real-time data transmission.
- Asynchronous Mode: Temporarily stores data when out of connection range.
- Batch Mode: Stores data in internal memory (supports over 15,000 barcodes).
Technical Specifications
- Sensor: 1280 × 800 CMOS (Megapixel)
- Barcode Support:
- 1D: All common types
- 2D: PDF417, QR Code, Data Matrix, Aztec, etc.
- Resolution: ≥ 3 mil
- Scanning Speed: 6 scans per second
- Reading Range: 20 mm – 495 mm (depending on barcode type)
- Connectivity: Stable Bluetooth 5.0, transmission up to 50 meters (open space)
- Battery: 2400 mAh (up to 12 hours continuous use)
- Charging Time: Approx. 4 hours
- Durability: Drop resistance up to 1.5 meters, IP42 dust/water protection
- Memory Capacity: Stores ≥ 15,000 codes (Code 128, 20 bytes per code)

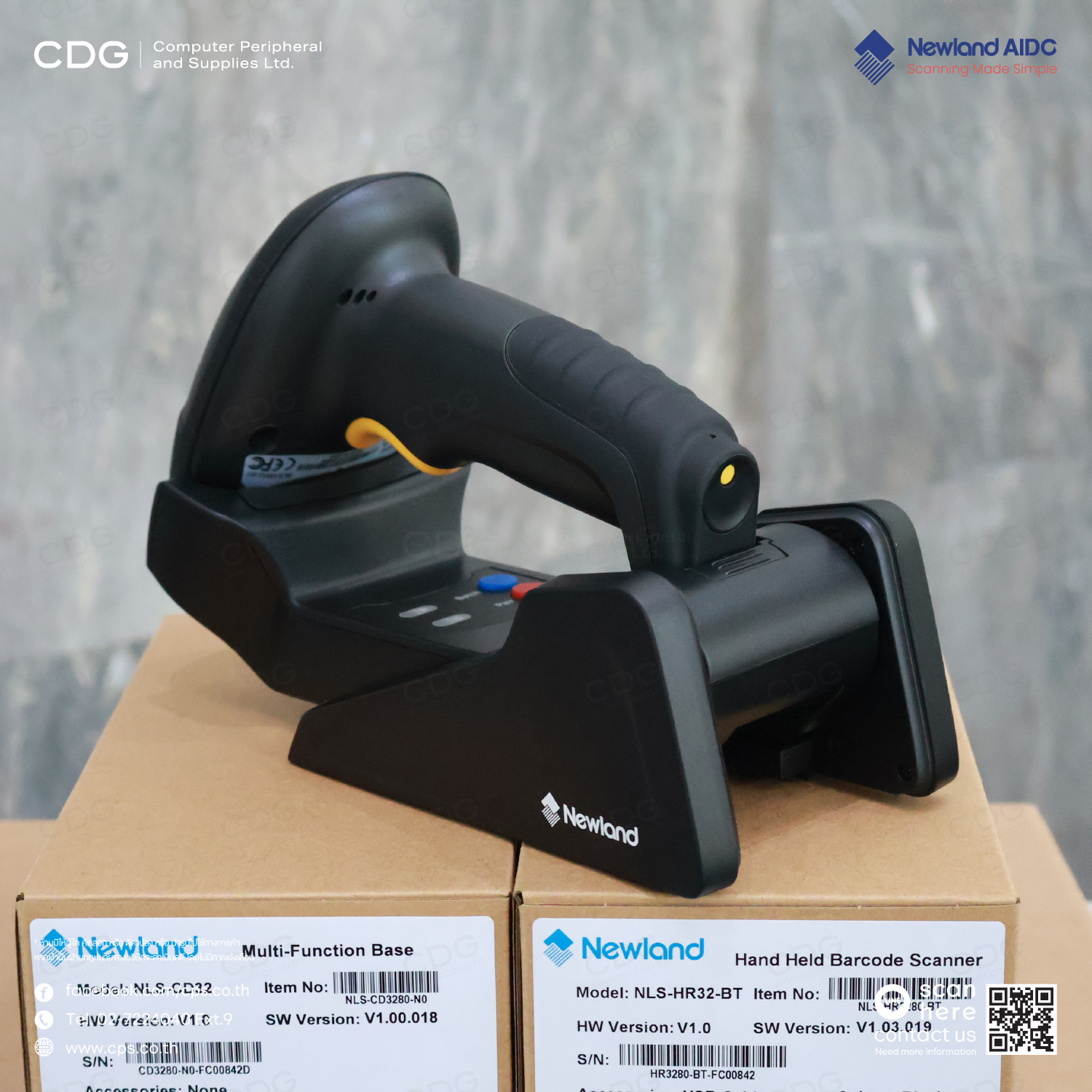

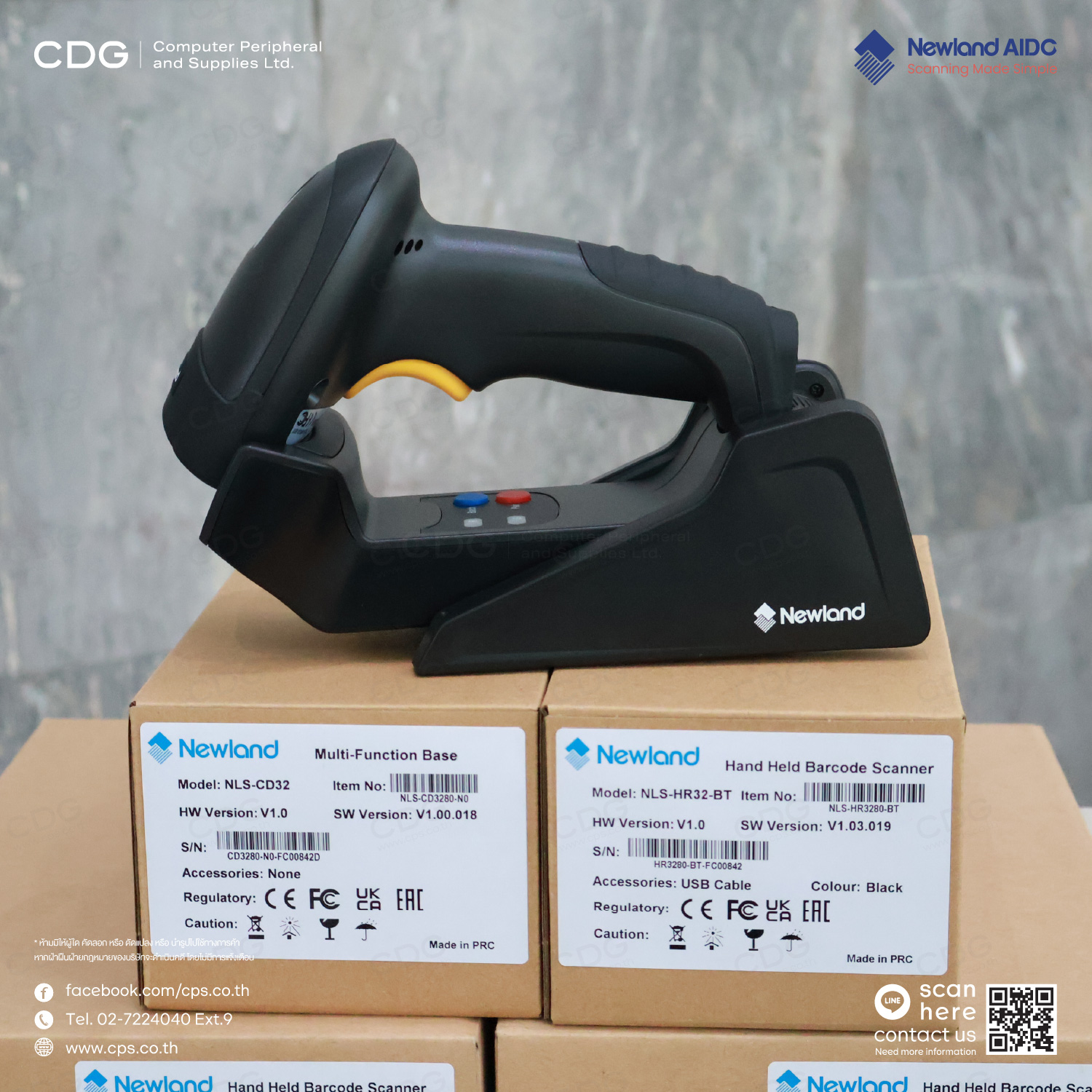

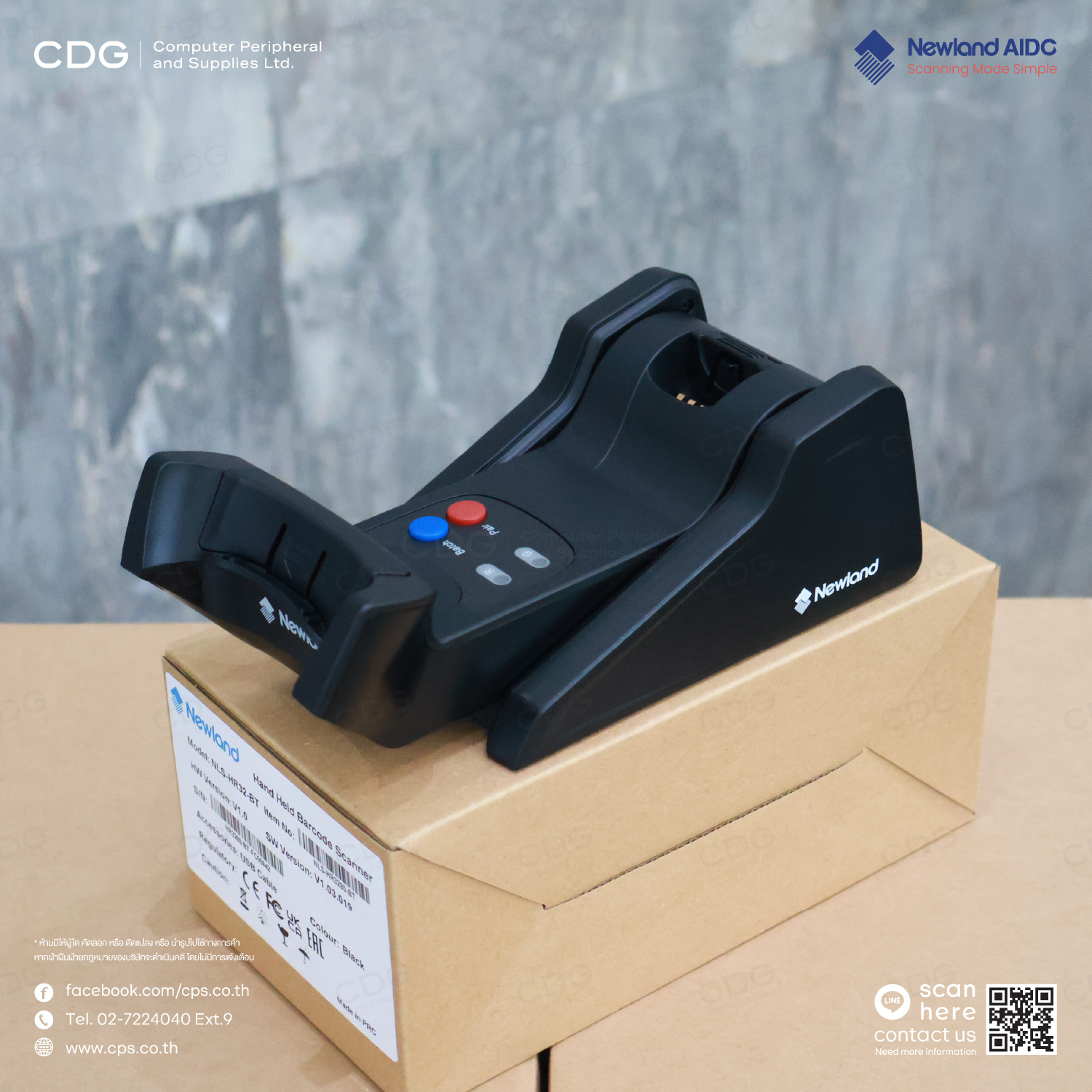

- Interface: USB, RS‑232 (via cradle)
- Weight: 217 g (scanner only)
Best Suited For
- Due to its high scanning performance and reliable wireless connection, this model is ideal for:
- Retail: Inventory and point-of-sale systems.
- Warehouse: Stock management and logistics.
- Mobile Payment: Scanning barcodes/QR codes from smartphone screens.
- Healthcare & Public Sector: Patient tracking and government services.
Datasheet : Newland NLS-HR3280-BT 2D Bluetooth Handheld Scanner
