SATO WS4 Series 4-inch Desktop printer / Barcode Printer

SATO WS4 Series 4-inch Desktop printer

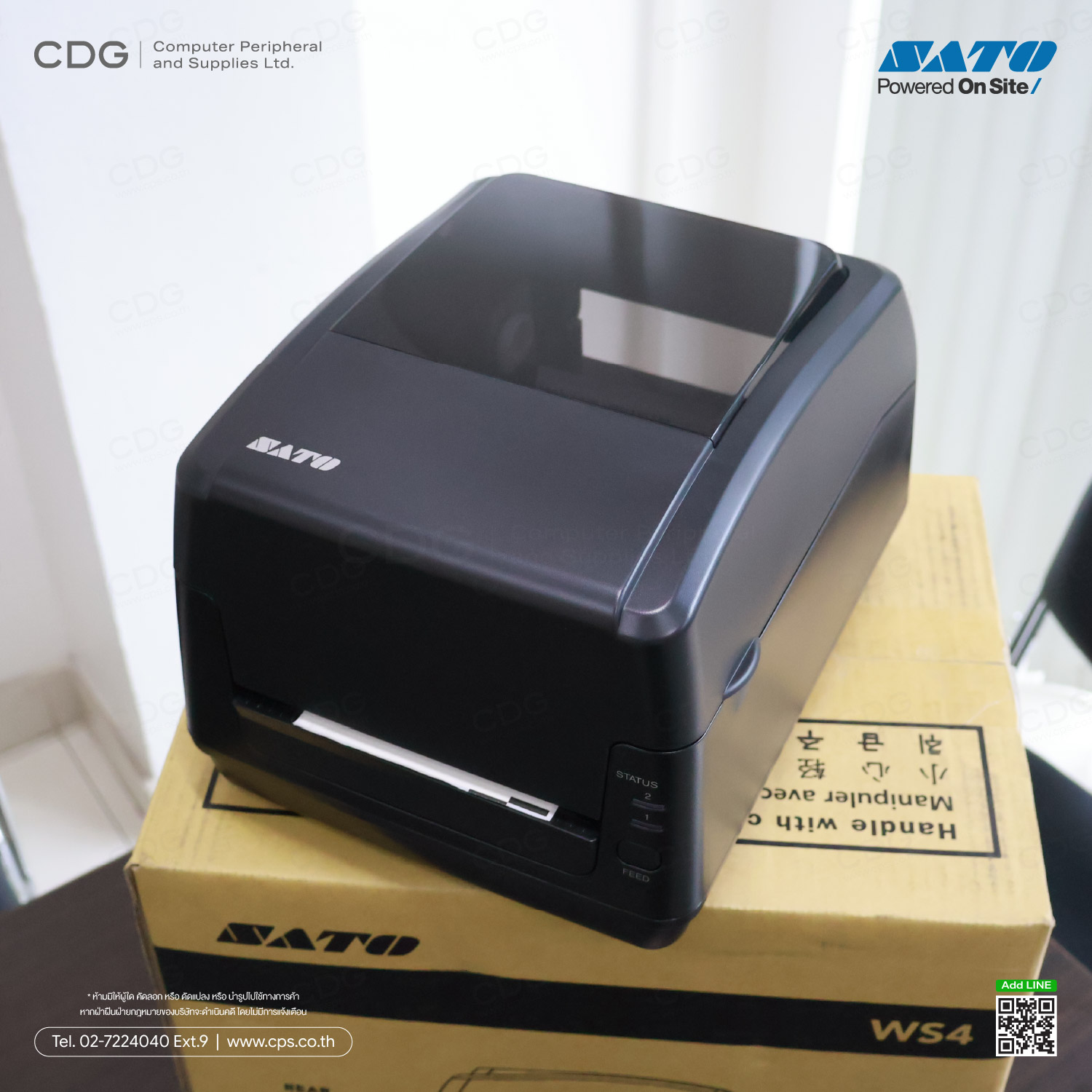

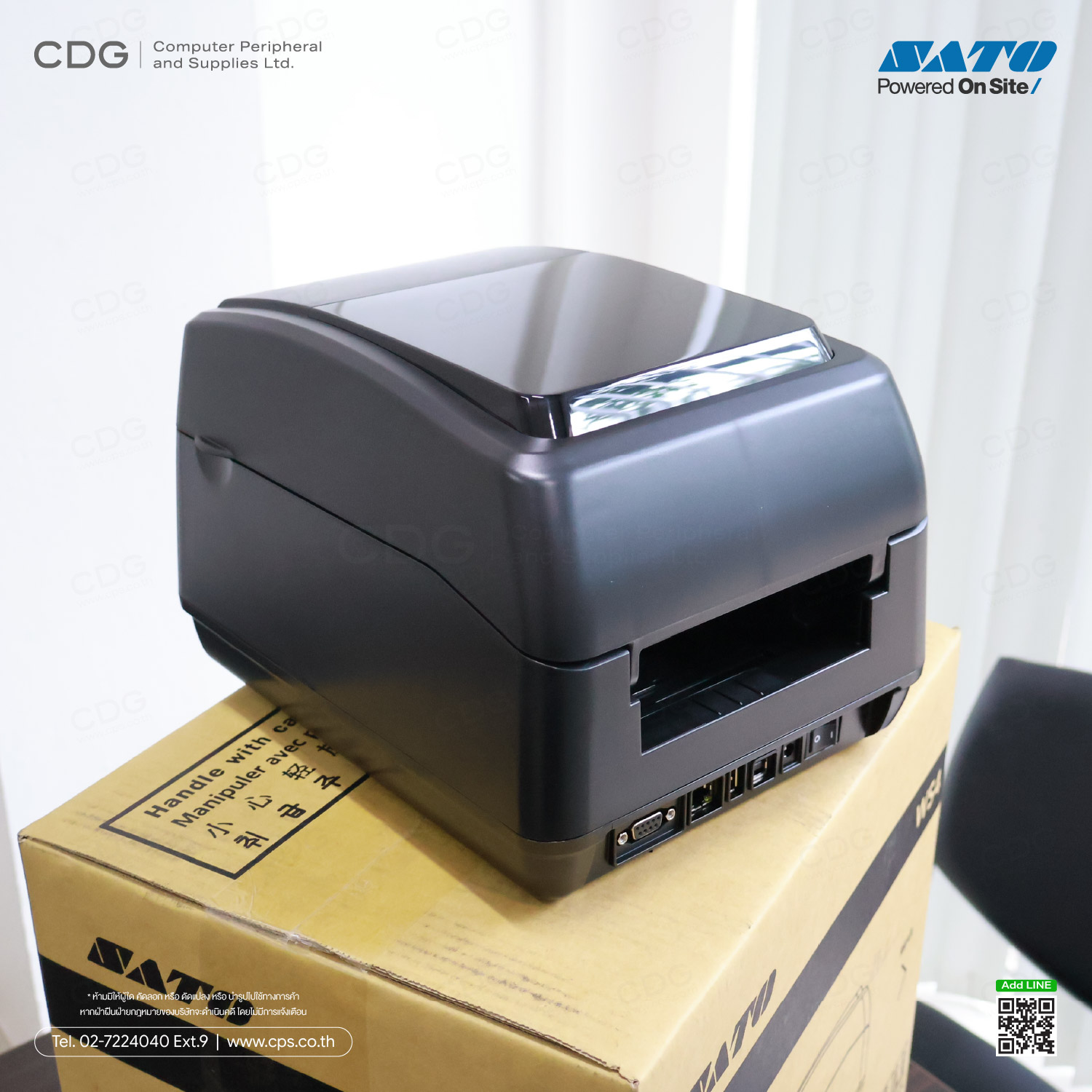

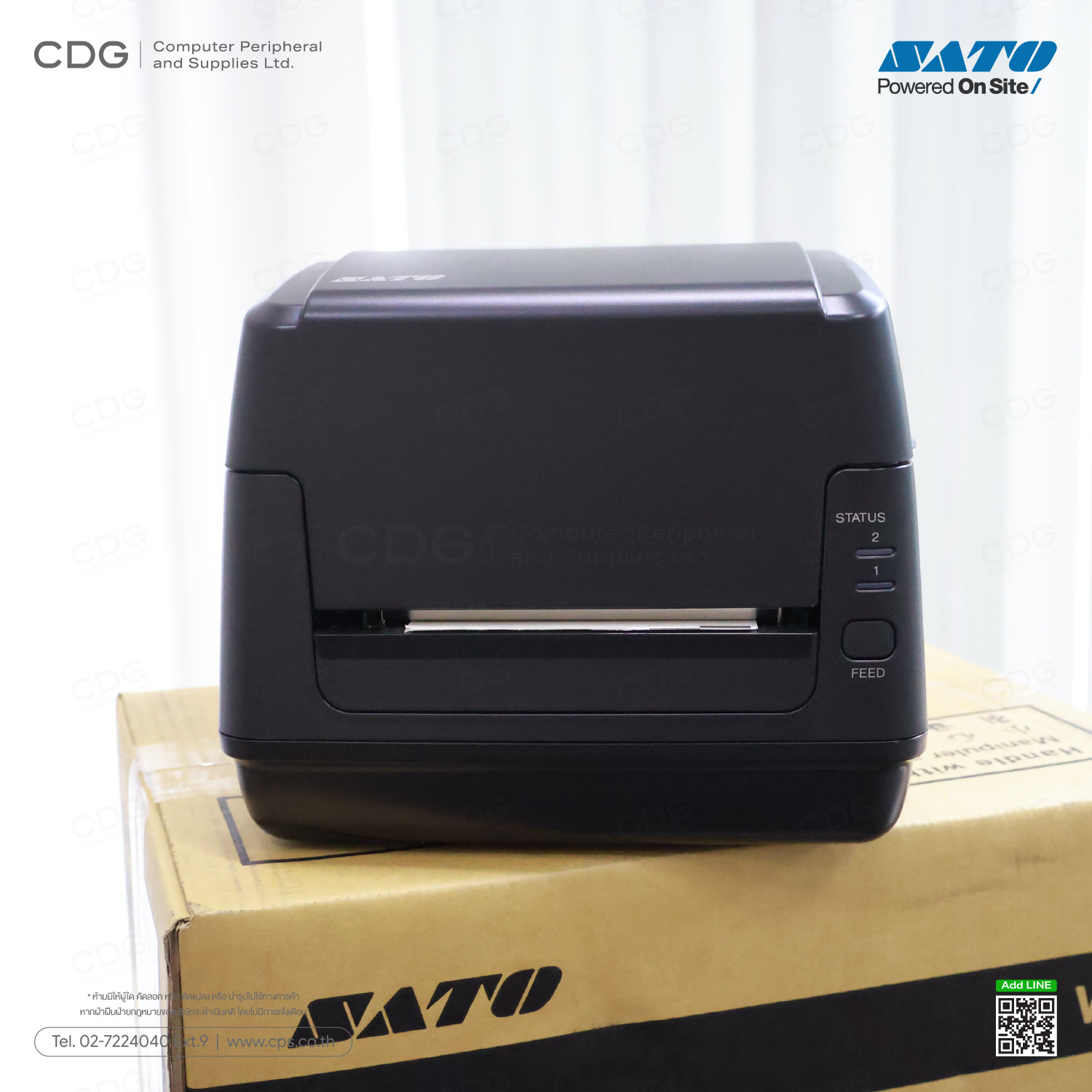

The SATO WS4 is a 4-inch desktop label printer designed for flexibility, ease of use, and support for both Thermal Transfer (TT) and Direct Thermal (DT) printing. It comes in four sub-models: WS408TT, WS412TT, WS408DT, and WS412DT, differing in resolution (203 dpi or 300 dpi) and printing method (TT uses ribbon, DT does not).

Special Features

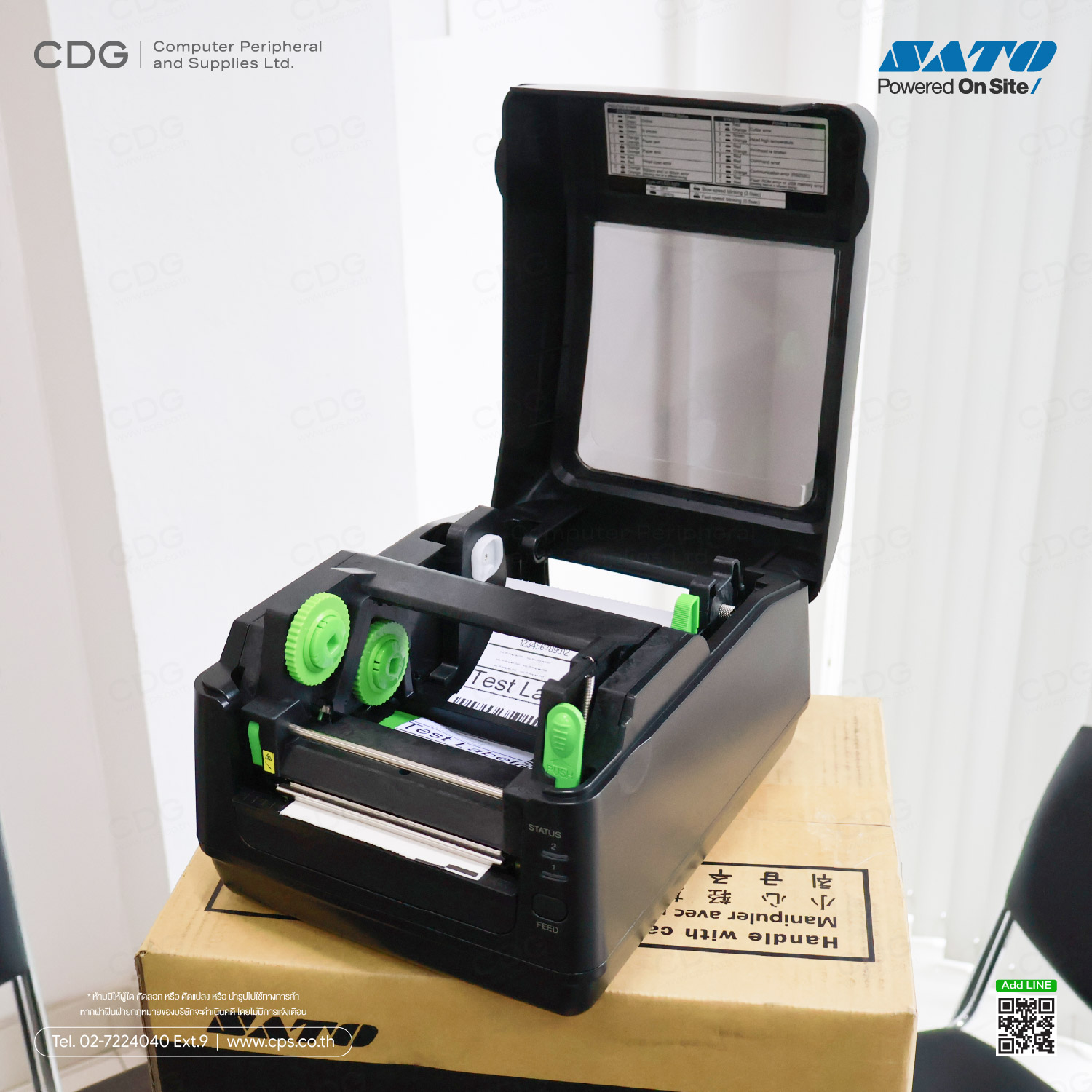

• Easy operation: Wide‑opening cover, one‑touch controls, auto‑calibration system
• Flexible media handling: Supports face‑in/face‑out, adjustable I‑Mark and gap sensors
• High adaptability: Optional cutter, dispenser, and external media stand
• Modern connectivity: Bluetooth and Wi‑Fi options for wireless management
• Durability and reliability: Designed for industrial, logistics, manufacturing, healthcare, and retail environments
• Comprehensive language and barcode support: Bitmap and scalable fonts, full 1D/2D barcode compatibility

Key Specifications

• Printing Methods: Thermal Transfer (TT) and Direct Thermal (DT)


• Print Resolution:
  • WS408 = 203 dpi
  • WS412 = 300 dpi


• Print Speed:
  • WS408 = 6 ips (152.4 mm/sec)
  • WS412 = 4 ips (101.6 mm/sec)


• Maximum Print Area: Width 104 mm (4.09”), Length 999 mm (39.33”)
• Memory: ROM 128 MB, RAM 128 MB (latest models)
• Ribbon (TT models only): Length up to 300 m, width 40–110 mm
• Media Types Supported: Roll, fan‑fold, tag, ticket, continuous, die‑cut

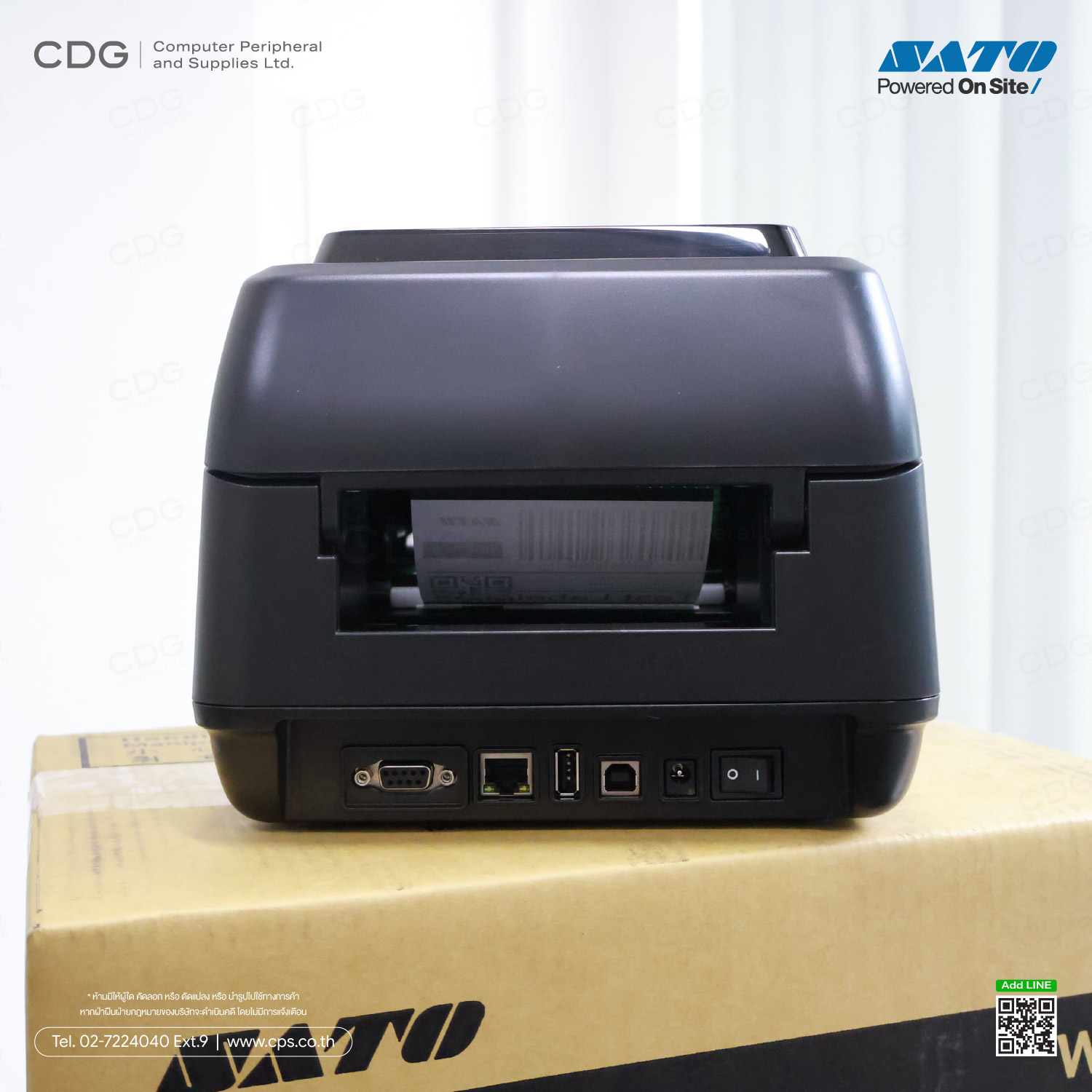

• Connectivity: USB, LAN, RS232 (standard), WLAN and Bluetooth (optional)

Model Comparison

Summary: Choose WS408 (TT/DT) for higher speed, and WS412 (TT/DT) for higher resolution. TT models are suitable for durable labels requiring ribbons, while DT models are ideal for short‑life labels without ribbon use.

Datasheet : SATO WS4 Series 4-inch Desktop printer
