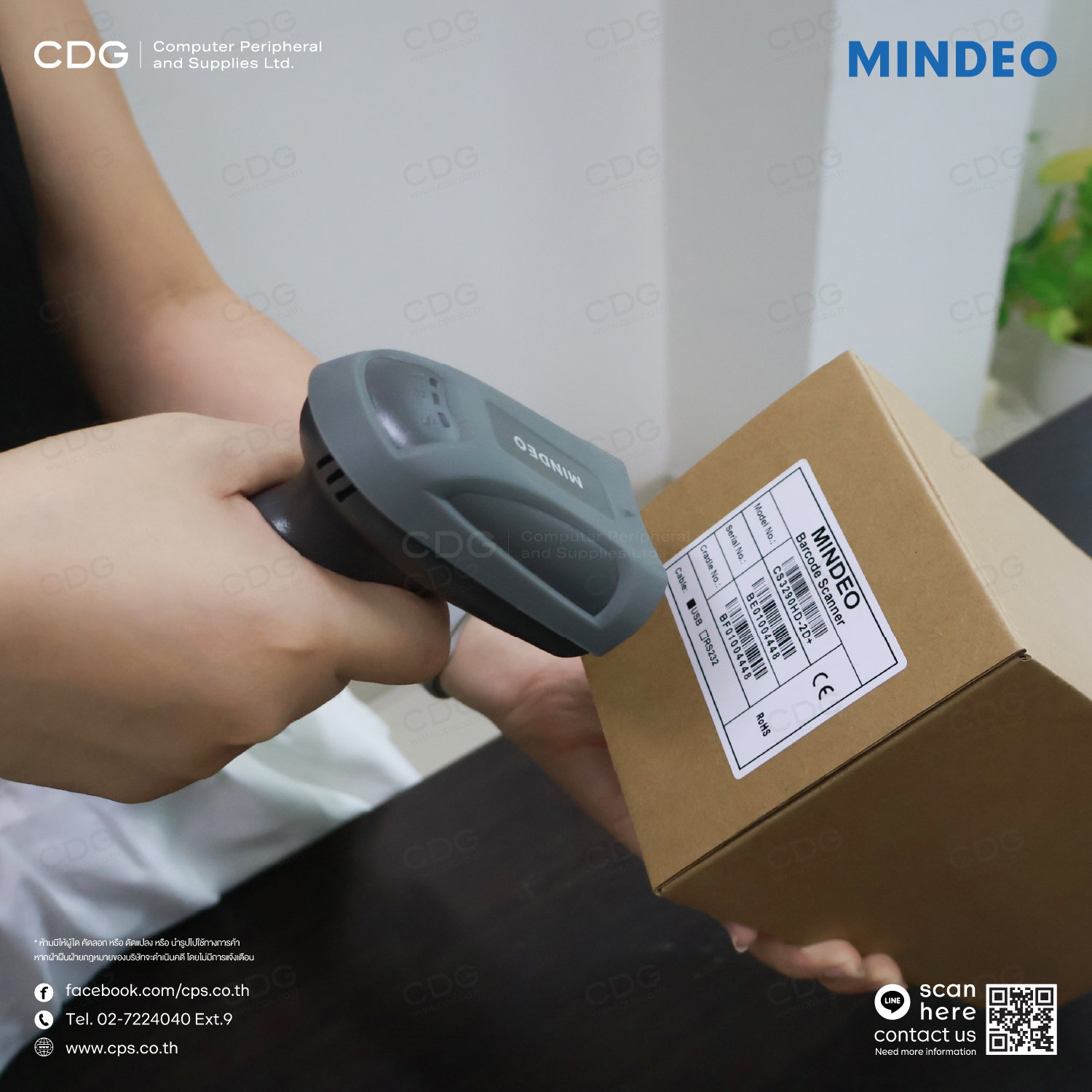

Mindeo CS3290 2D Cordless Wireless Handheld Scanner

Support point-to-point and multi-point data transmission Working range reaches up to 100 meters Support batch mode capability (30,000 UPC-A barcodes) Stylish and ergonomic design, small base saves installation space Read all common 1D/2D barcodes from paper labels and electronic screens Built-in rechargeable & replaceable battery, one full charge supports scanning for 46 hours or standby for 4.5 days

Features

• Cordless 2D scanner
• Strong penetrating power for obstacle, up to 200 meters working range (open air)
• Capable of scanning barcodes for more than 5 hours once fully charged
• Lasts more than 7 days on standby
• IP52 protection class
• Connects through USB interface
• Built-in self-protected charging circuit

Mindeo CS3290 2D Wireless Scanner

The Mindeo CS3290 is a Wireless Barcode Scanner that supports both 1D and 2D codes with high precision and a transmission range of up to 100 meters. It features onboard memory for offline data storage and a long-lasting battery that runs up to 15 hours. Its rugged design includes a tempered glass scan window for enhanced durability. Ideal for use in retail, logistics, and manufacturing environments.

Key Features

• Reads from mobile screens even in low-light conditions
• Supports Chestny ZNAK system for regulated product verification (e.g. pharmaceuticals, alcohol, tobacco)
• Tempered glass scan window for scratch and impact resistance
• Multi-mode feedback: LED, beep, and vibration alerts
• Wall-mountable charging base for space-saving installation
• Wide barcode compatibility: Supports 1D and 2D codes including QR, PDF417, DataMatrix, UPC, EAN, Code 128
• Ideal for various industries: retail, logistics, manufacturing, and asset management

Technical Specifications

• Scan Type: 2D Imager (1280 × 800 pixel resolution)
• Operation Mode: Manual handheld scanning
• Wireless Communication: 433 MHz radio frequency, up to 100 meters in open space
• Offline Storage: Up to 3,000 EAN13 codes when disconnected
• Battery: 1400 mAh lithium-ion, up to 15 hours of continuous use (1 scan every 5 seconds)
• Charging Time: Approximately 4 hours to reach 80%
• Interfaces: RS-232, USB Keyboard, USB Virtual COM
• Housing Material: PC + TPU body, tempered glass scan window
• Dimensions & Weight:Scanner: 170 × 70 × 83 mm, 222 g
• Charging Base: 213 × 97 × 75 mm, 189 g
• Certifications & Durability: EN60950-1, EN62471:2008, IP52 rating, drop-resistant up to 1.5 meters

Datasheet : Mindeo CS3290 2D Cordless Wireless Handheld Scanner

Brochure : Mindeo CS3290 2D Cordless Wireless Handheld Scanner
