LED Poster Elegant design, lightweight, portable, suitable for both indoor and outdoor use (IP30/IP65). With Plug & Play and mobile control.
Categories : Digital Media , Video Wall ,
Share

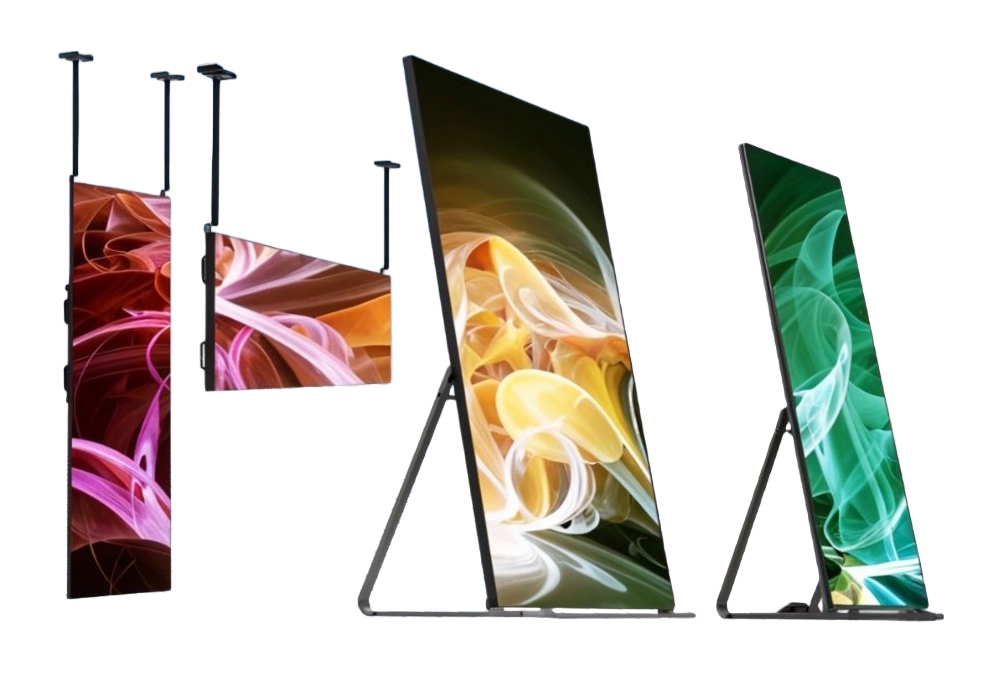

LED Poster Display / LED Advertising Screen (P1.53 - 4.0mm)
Frameless design supporting large screens with 100% front installation and maintenance. Adjustable standing angles at 0°, 5°, and 10° for versatile use. Built with a lightweight aluminum structure and anodized coating for a more premium look compared to standard finishes. Easy mobility with handlebar, wheels, and flight case packaging. Supports mobile playback (App: ViPlex), equipped with Dual WiFi and automatic brightness adjustment. Plug & Play functionality allows instant use without external controllers. Optional GOB protection ensures water resistance and reduces moiré effects.
Highlight of LED Poster: Elegant design, lightweight, portable, suitable for both indoor and outdoor use (IP30/IP65). With Plug & Play and mobile control, it offers a modern, user-friendly experience.
Special Features
What Can Poster LED Replace?
Datasheet : LED Poster Display / LED Advertising Screen (P1.53 - 4.0mm)

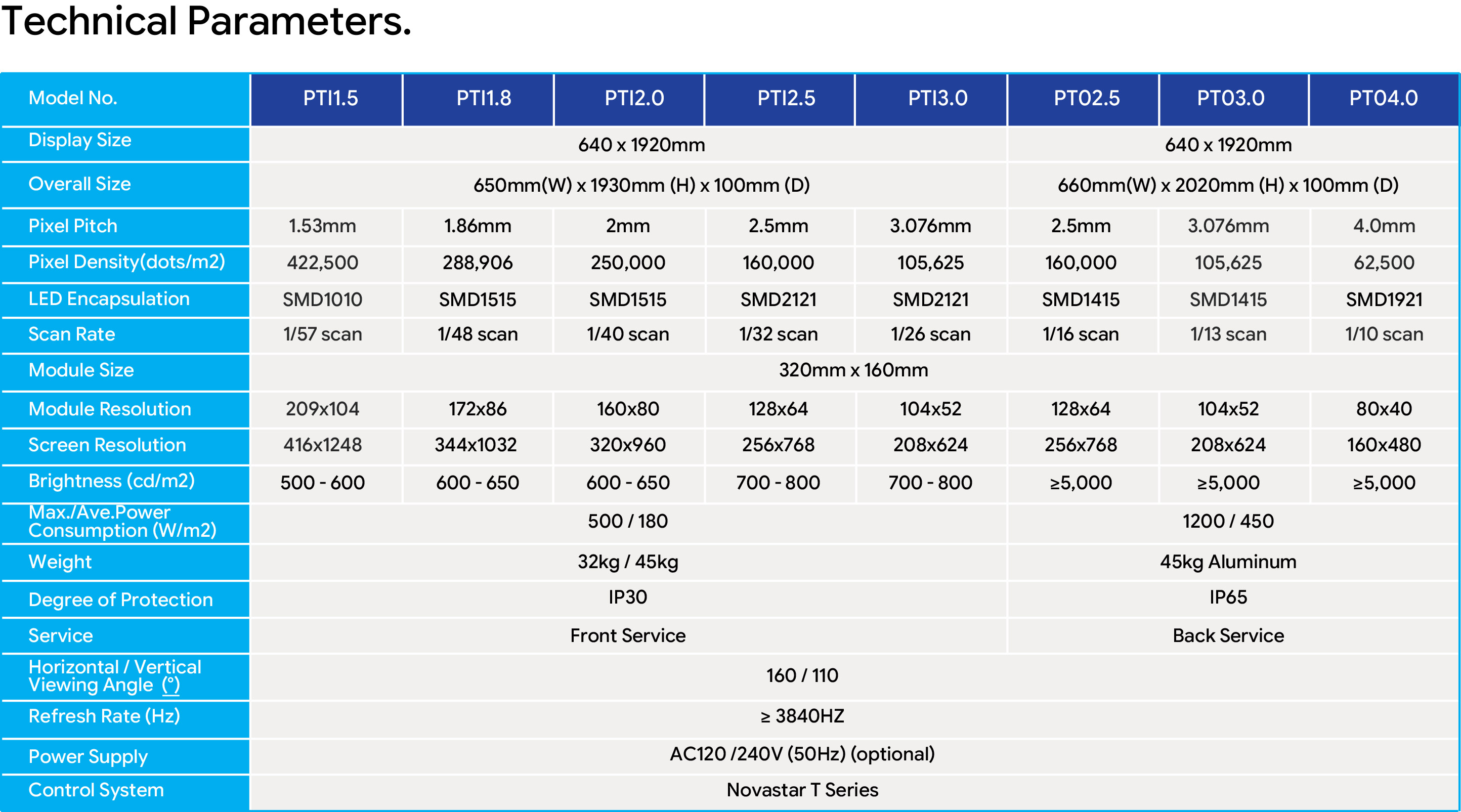

Technical Specification
| Specification | PTI1.5 | PTI1.8 | PTI2.0 | PTI2.5 | PTI3.0 | PTO2.5 | PTO3.0 | PT04.0 |
| Pixel Pitch | 1.53mm | 1.86mm | 2.0mm | 2.5mm | 3.076mm | 2.5mm | 3.076mm | 4.0mm |
| Pixel Density (dots/m²) | 422,500 | 288,906 | 250,000 | 160,000 | 105,625 | 160,000 | 105,625 | 62,500 |
| LED Encapsulation | SMD1010 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD1415 | SMD14151 | SMD192 |
| Scan Rate | 1/57 | 1/48 | 1/40 | 1/32 | 1/26 | 1/16 | 1/13 | 1/10 |
| Module Resolution | 209×104 | 172×86 | 160×80 | 128×64 | 104×52 | 128×64 | 104×52 | 80×40 |
| Screen Resolution | 416×1248 | 344×1032 | 320×960 | 256×768 | 208×624 | 256×768 | 208×624 | 160×480 |
| Brightness (cd/m²) | 500–600 | 600–650 | 600–650 | 700–800 | 700–800 | ≥5,000 | ≥5,000 | ≥5,500 |
| Power Consumption (W/m²) | – | – | 500/180 | – | – | – | 1200/450 | – |
| Weight | – | – | 32–45kg | – | – | – | 45kg (Aluminum) | – |
| Protection | – | – | IP30 | – | – | – | IP65 | – |
| Service | – | – | Front | – | – | – | Back | – |
| Viewing Angle (H/V) | – | – | – | 160°/110° | – | – | – | – |
| Refresh Rate (Hz) | – | – | – | ≥3840 | – | – | – | – |
| Power Supply | – | – | – | AC120/240V (50Hz) | – | – | – | – |
| Control System | – | – | – | Novastar T Series | – | – | – | – |
Premium Design with Mobility
Crafted with premium materials, the stand structure is made of aluminum with anodized painting, offering strength, durability, elegance, and lighter weight compared to conventional designs.
The integrated hidden rear wheels provide convenient mobility while maintaining the sleek appearance of the stand - ensuring that no wheels obstruct the front view.
Cost-Effective Investment
Achieve greater value with the ability to seamlessly combine multiple screens into a larger display whenever needed. This flexibility makes it suitable for both individual small-screen setups at locations such as information counters, restaurants, or lobbies, as well as for assembling multiple units into one large, gap-free display.
Thanks to its frameless design, the LED poster can be utilized in both standalone and combined configurations, maximizing usability and ensuring a truly cost-effective investment.
Dust & Water Protection – IP67 with GOB Technology
The LED Poster screen is enhanced with GOB (Glue on Board) module technology, a special protective coating that strengthens the display surface. With IP67-rated dust and water resistance, it is highly durable and suitable for both indoor and semioutdoor applications, ensuring reliable performance in diverse environments.
