Honeywell PM45 / PM45c Industrial Barcode Printers

Honeywell PM45	Honeywell PM45c

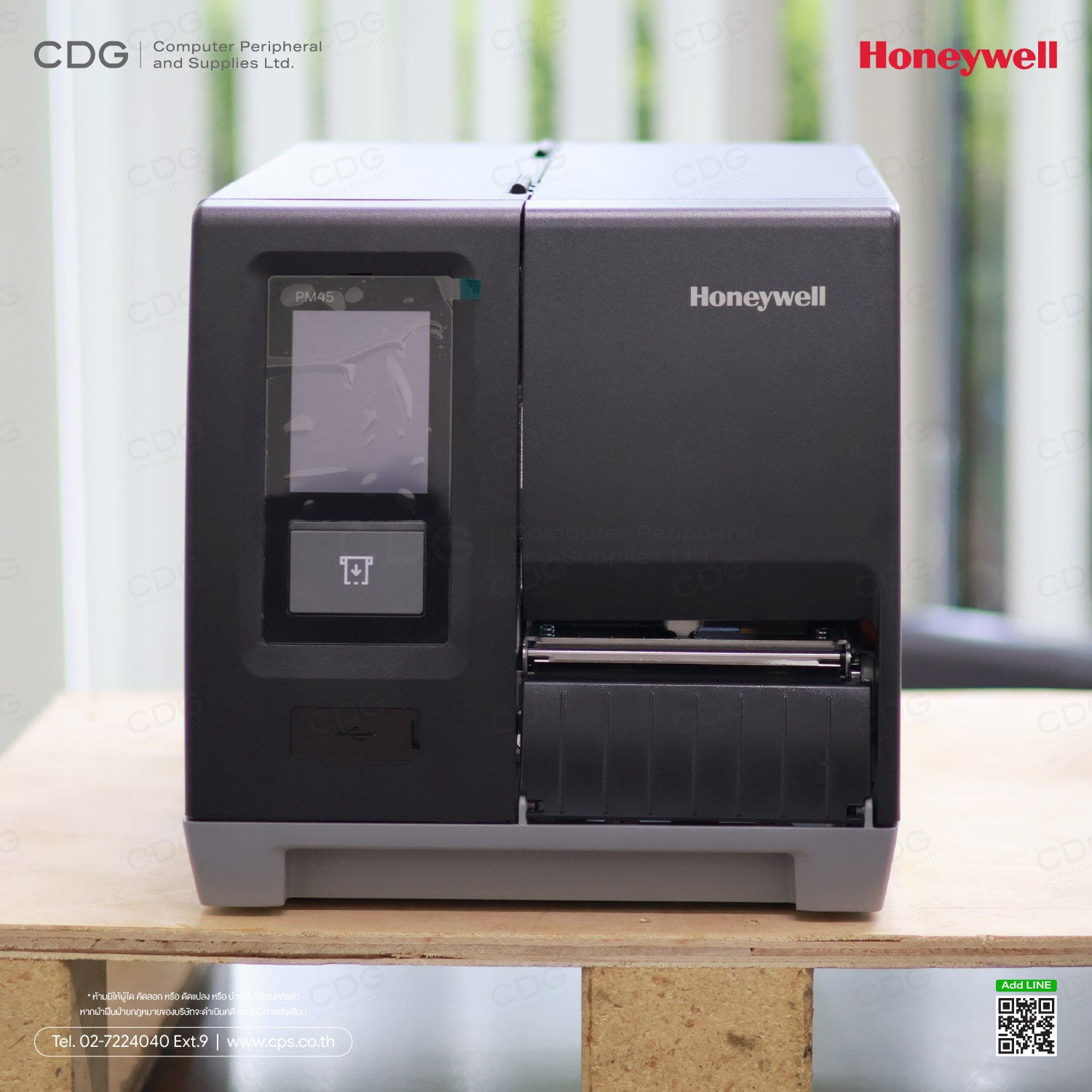

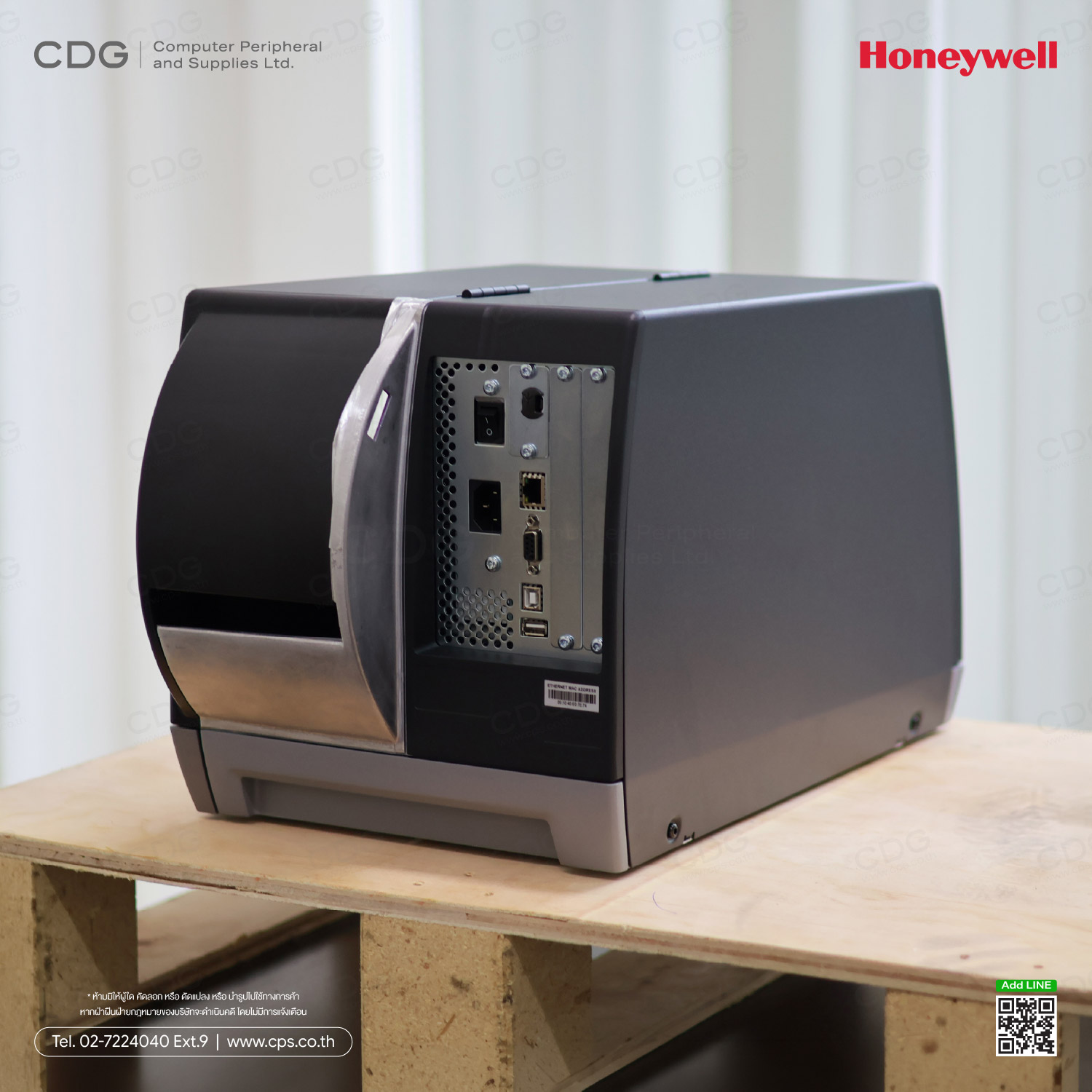

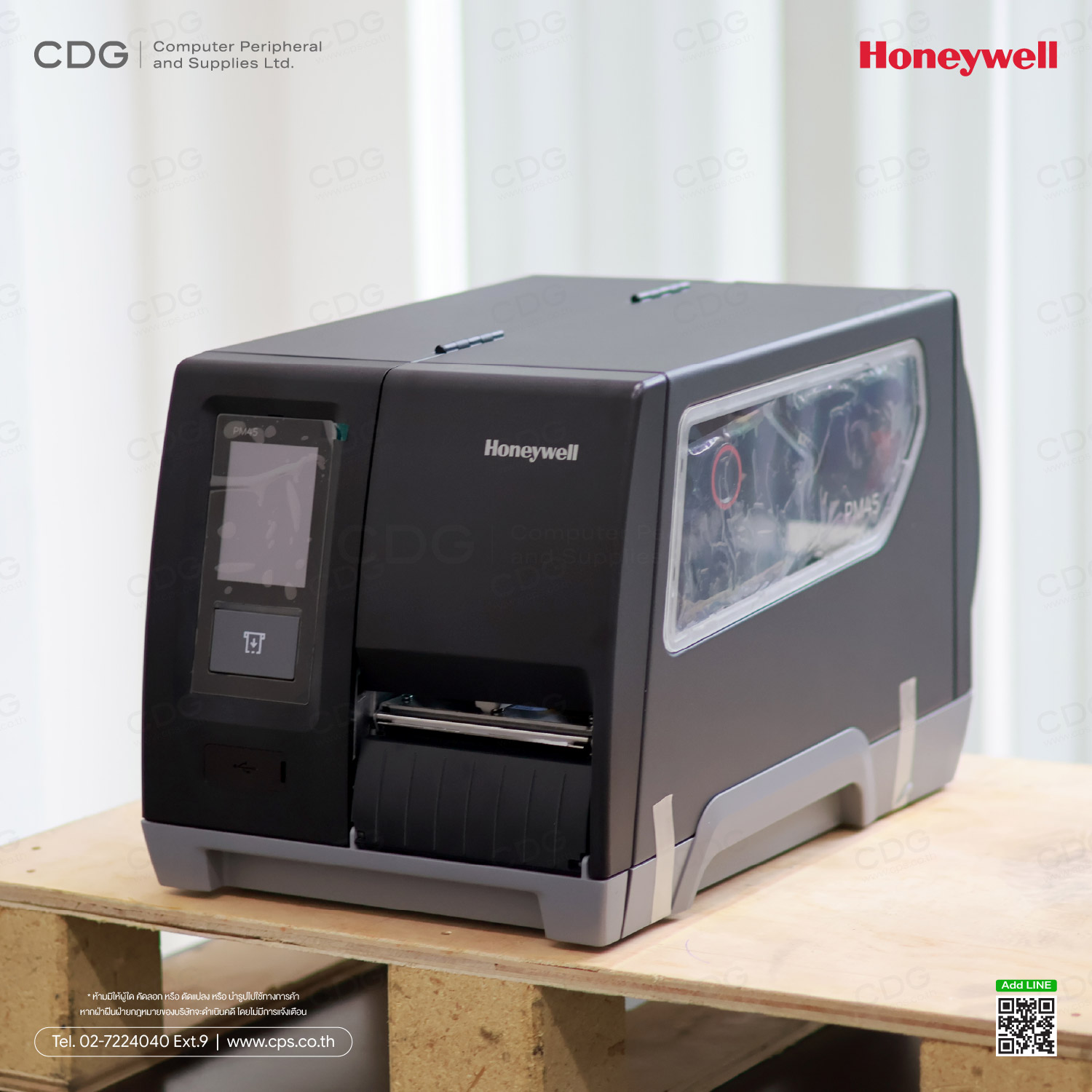

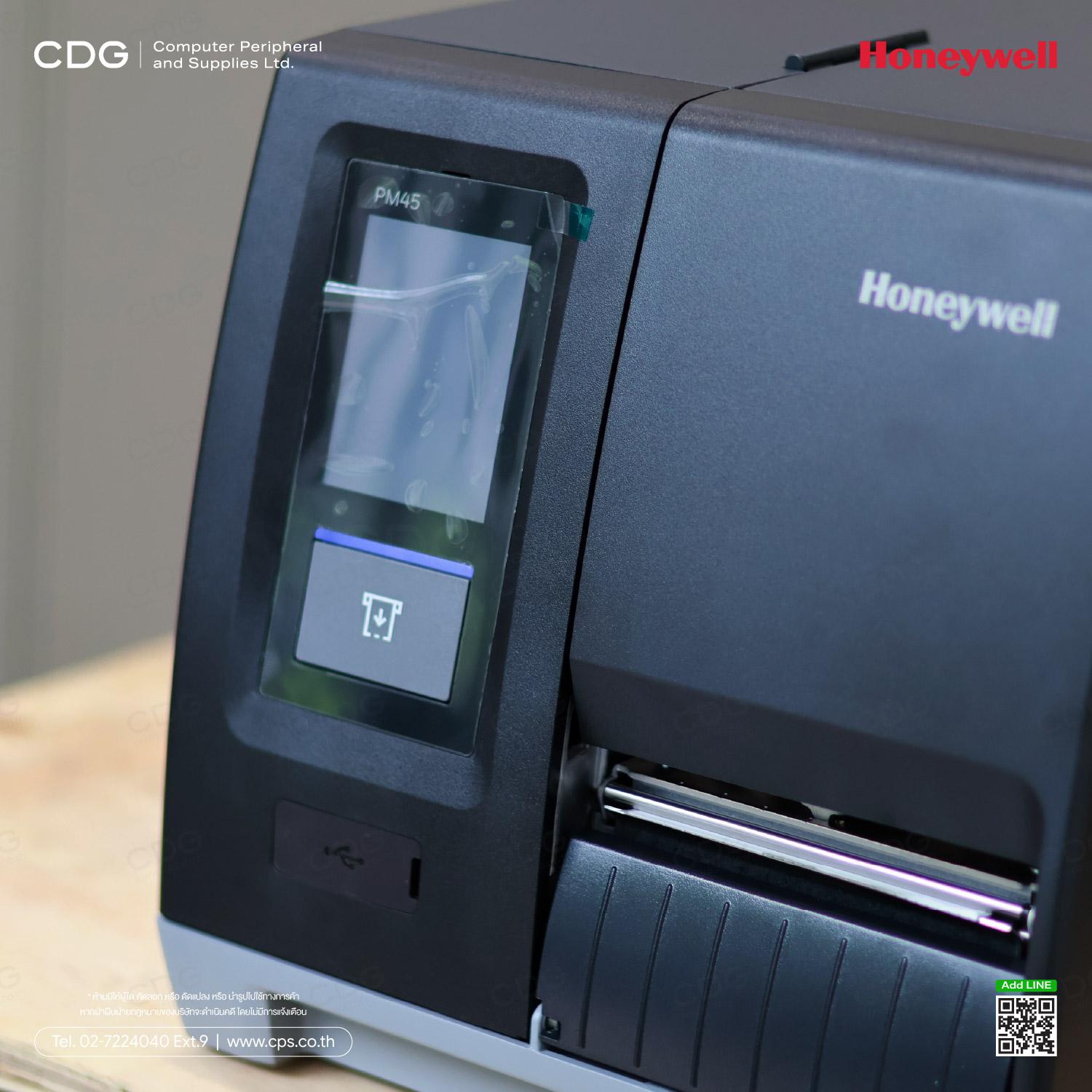

Honeywell PM45 Industrial Printer

Honeywell PM45 Industrial Printer is designed for manufacturing and supply chain operations. Supports both direct thermal and thermal transfer printing methods. Delivers print speeds up to 14 ips with resolutions up to 600 dpi. Offers versatile connectivity including Ethernet, Wi‑Fi, Bluetooth, WWAN, and RFID. Built with a durable structure and tool‑free printhead replacement. Supports a full range of 1D and 2D barcode standards. Ideal for food, pharmaceutical, logistics, and manufacturing industries requiring track‑and‑trace.

Key Specifications

• Printing Technology: Direct Thermal / Thermal Transfer
• Print Resolution: 203, 300, 406, 600 dpi
• Print Speed: 50–350 mm/s (2–14 ips)
• Maximum Print Width: 4 inches
• Daily Print Volume: Up to 10,000 labels per day
• Memory: 512 MB Flash, 256 MB RAM, supports external USB memory
• Barcode Support: Full range of 1D and 2D standards
• Dimensions (PM45): 483 × 295 × 284 mm, weight 13.2 kg
• Maximum Ribbon Length: 450 m
• Maximum Media Roll Diameter: 213 mm
• Power Supply: 100–240 VAC, 50/60 Hz

Special Features

• High-speed and precise printing: Up to 14 ips with ±0.5 mm accuracy.
• Versatile connectivity: Ethernet, Wi-Fi (802.11 a/b/g/n/ac), Bluetooth 5.0, WWAN, RFID, RS‑232, USB, Parallel, Industrial Interface.
• Multi‑language and protocol support: DPL, Fingerprint, IPL, ZSim2 (ZPL‑II), PDF, XML for SAP and Oracle WMS.
• Smart integration: Honeywell Smart Parse for quick label design adjustments and Operational Intelligence for remote performance monitoring.

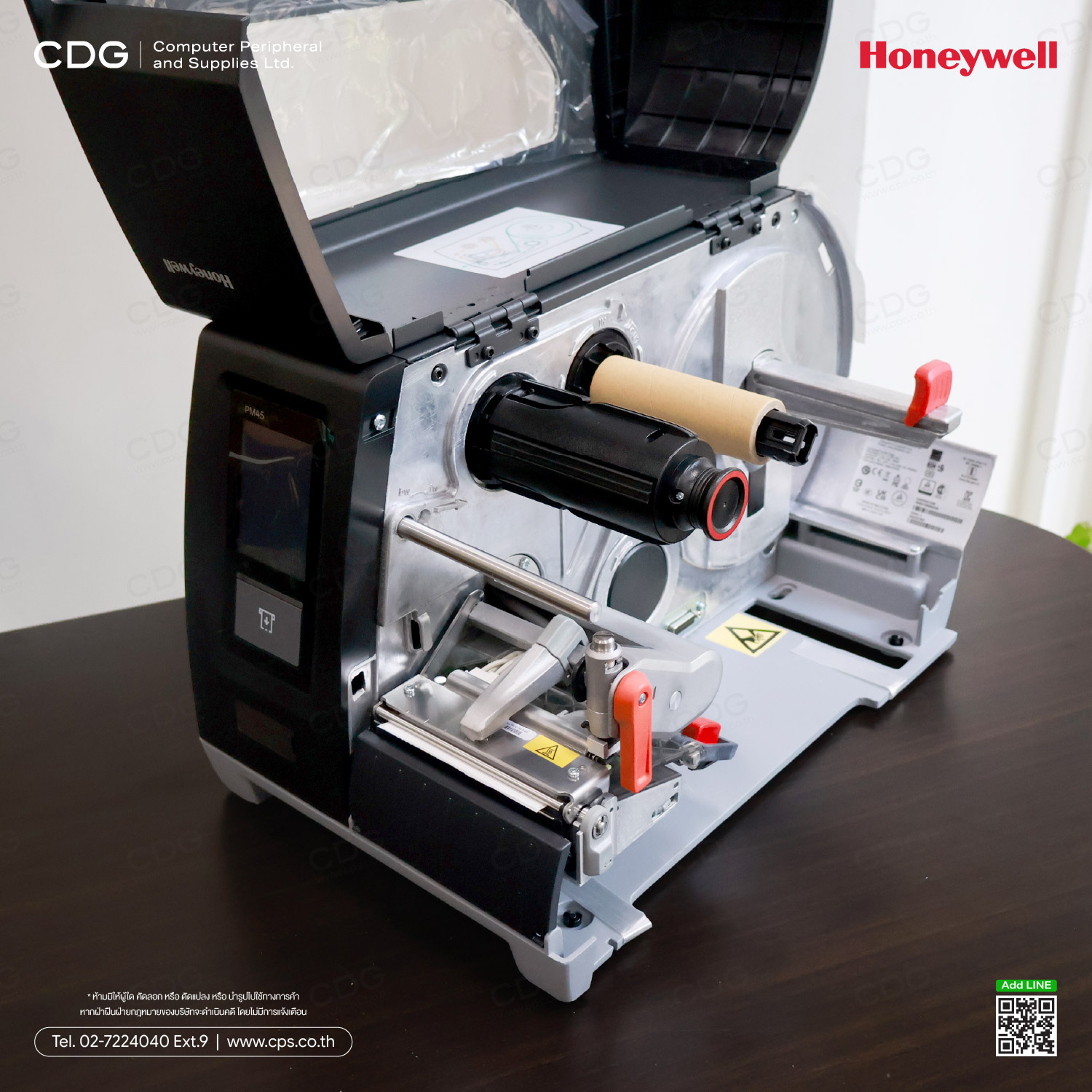

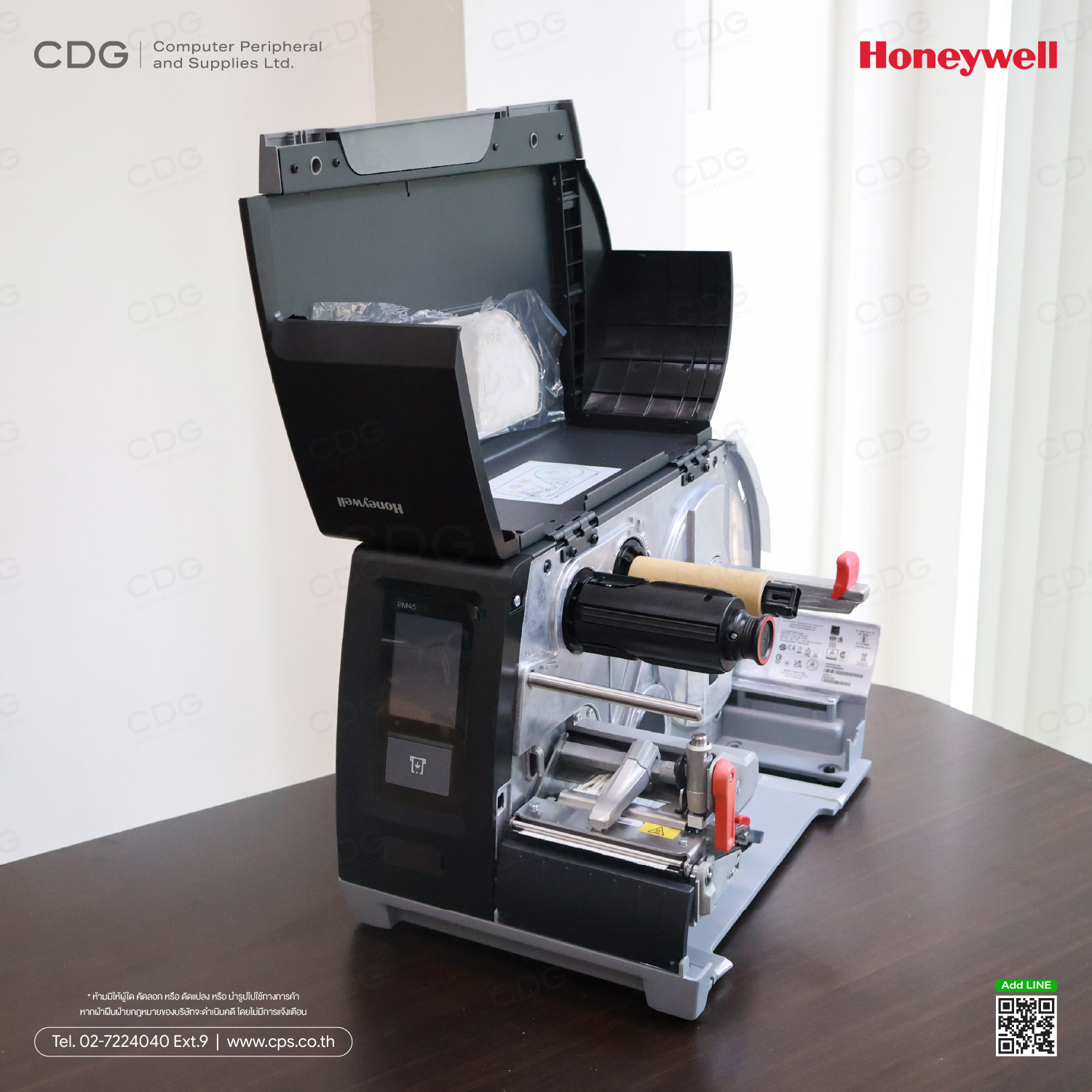

• Durable construction: Full metal mechanism, tool‑free printhead replacement.
• Media compatibility: Labels, RFID tags, linered media.
• Wide industry applications: Food and beverage, pharmaceuticals, logistics, manufacturing, aerospace.

Usage Summary

The Honeywell PM45 is designed for organizations that require high‑quality, high‑speed label printing with flexible connectivity to support complex production and supply chain operations, especially in industries that demand track‑and‑trace capabilities and real‑time data management.

Datasheet : Honeywell PM45 Industrial Printer

Honeywell PM45 vs PM45c – Key Differences

Size & Weight

Honeywell PM45

• Dimensions: 483 × 295 × 284 mm (19.0 × 11.6 × 11.2 in)
• Weight: 13.2 kg (29.1 lbs)

Honeywell PM45c

• Dimensions: 432 × 181 × 253 mm (17.0 × 7.1 × 10.0 in)
• Weight: 12.6 kg (27.7 lbs)

PM45c with Mega Door

• Dimensions: 500 × 245 × 253 mm (19.7 × 9.6 × 10.0 in)
• Weight: 12.8 kg (28.0 lbs)

Product Specifications

Printing Method: Thermal Transfer & Direct Thermal

Print Resolution & Width:

• 203 dpi → 108 mm (4.25 in)
• 300 dpi → 105.7 mm (4.17 in)
• 406 dpi → 104 mm (4.09 in)
• 600 dpi → 105.6 mm (4.16 in)

Maximum Print Speed:

• 203 dpi → 50–350 mm/s (2–14 ips)
• 300 dpi → 50–300 mm/s (2–12 ips)
• 406 dpi → 50–250 mm/s (2–10 ips)
• 600 dpi → 50–150 mm/s (2–6 ips)

Maximum Print Length:

• 203 dpi → 4.8 m (189 in)
• 300 dpi → 2.2 m (85 in)
• 406 dpi → 1.2 m (47.2 in)
• 600 dpi → 0.55 m (22 in)

Memory: 512 MB Flash, 256 MB SDRAM
Connectivity: USB 2.0, RS-232, Ethernet (10/100 Mbps)

Honeywell PM45 Industrial Printer
