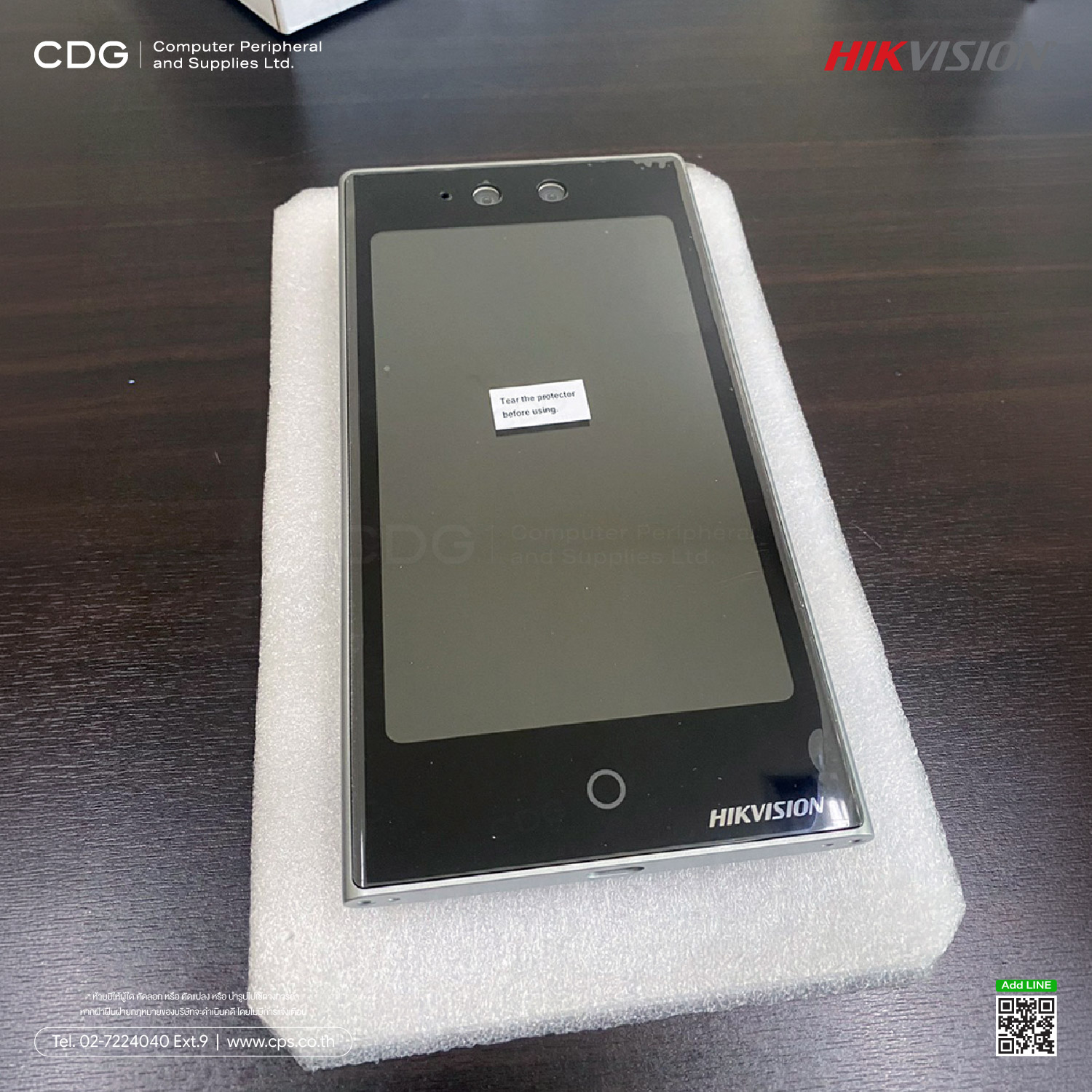

HikVision DS-K1T673DX Series – Pro Face Access Terminal
The HikVision DS-K1T673DX Series is a professional face recognition access control terminal widely deployed in government facilities, office buildings, residential complexes, factories, schools, and universities.
Special Features
- Display & Camera: 7-inch LCD touchscreen with 2 MP wide-angle lens
- Recognition Distance: 0.3 to 3 m
- Face Recognition Speed: < 0.2 seconds per user
- Accuracy Rate: ≥ 99%
- Card Support: Built-in Mifare card, Felica card, and DESfire card reader module (card information displayed on screen for verification)
- Mask Detection: Supports facial mask recognition
- Capacity: 10,000 faces, 10,000 fingerprints (with fingerprint module), 50,000 cards, and 150,000 event records
- Protocols: Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 & IPv6)
- Multi-person Recognition: Capable of recognizing single or multiple users simultaneously (up to 5 people)
Hikvision DSK1T673DWX
The Hikvision DS‑K1T673DWX is a Pro Series face recognition terminal. It features a 7‑inch IPS touch screen for easy operation. Dual 2MP wide‑angle cameras deliver face recognition accuracy of ≥99%. Supports multiple authentication methods: face, fingerprint, card, and PIN. Provides ultra‑fast recognition in <0.2 seconds with mask detection capability. Built with IP65 protection, waterproof and dustproof for indoor and outdoor use. Ideal for enterprises, factories, and schools requiring secure access control.
Key Specifications
- Display: 7‑inch IPS LCD, capacitive touch
- Camera: Dual‑lens, 2MP resolution, HFOV 75.5°, VFOV 41.5°, DFOV 87°
- Face Recognition:
- Detection distance: 0.3–3 m
- Recognition speed: <0.2 s per user
- Accuracy: ≥99%
- Face mask detection supported
- Capacity: 10,000 faces, 10,000 fingerprints (with module), 50,000 cards, 150,000 events
- Authentication Methods: Face, fingerprint, card (M1, Felica, DESfire), PIN
- Network Connectivity: LAN (RJ‑45 10/100/1000M), Wi‑Fi 2.4G (802.11 b/g/n), RS‑485, Wiegand, USB
- Door Control Interfaces: Lock, exit button, door contact, alarm input/output
- Power Supply: 12–24 VDC, 2A
- Operating Conditions: –30 °C to +60 °C, humidity 0–90%
- Protection: IP65 dustproof and waterproof
- Dimensions/Weight: 110.5 × 209.2 × 24 mm, net weight 0.57 kg
Special Features
- Multi‑authentication support: Face, fingerprint, card, and PIN.
- High speed and accuracy: Face recognition in less than 0.2 seconds.
- Anti‑spoofing technology: Prevents face forgery attempts.
- Mask detection capability: Enhances health and safety compliance.
- Multi‑user recognition: Supports up to 5 people simultaneously.
- Comprehensive connectivity: LAN, Wi‑Fi, RS‑485, Wiegand, USB.
- System integration: Compatible with ISAPI, ISUP 5.0, and SIP servers (Asterisk, 3CX, Elastix).
- Durable design: IP65 protection for indoor and outdoor use.
Usage Summary
The Hikvision DS‑K1T673DWX is ideal for enterprises, factories, schools, and facilities requiring secure, fast, and accurate access control. With multi‑authentication methods, anti‑spoofing technology, mask detection, and versatile connectivity, it provides a reliable and modern solution for advanced security systems.
Datasheet : Hikvision DS-K1T673DWX Pro Face Access Terminal
Hikvision DS-K1T673DWX Pro Face Access Terminal
