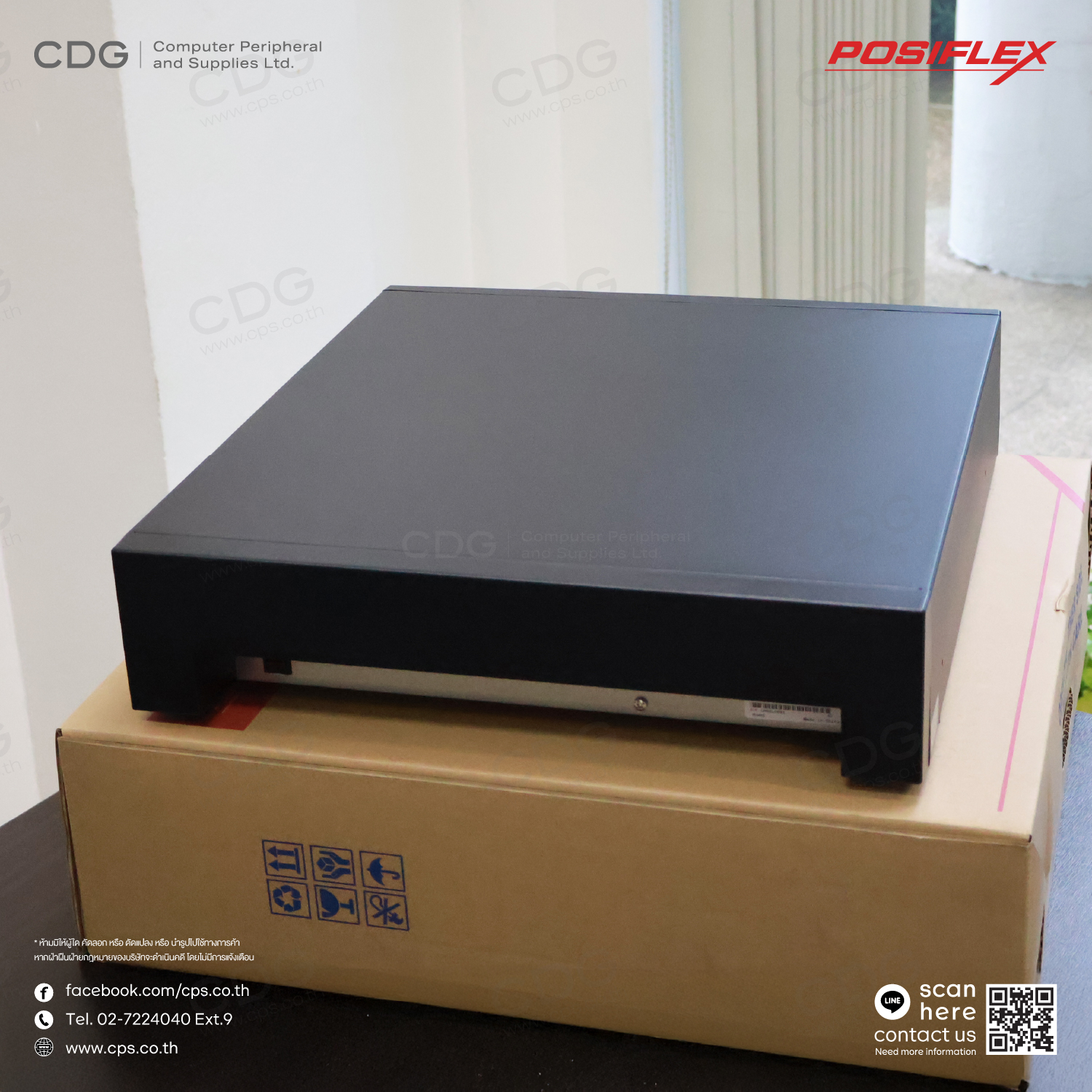

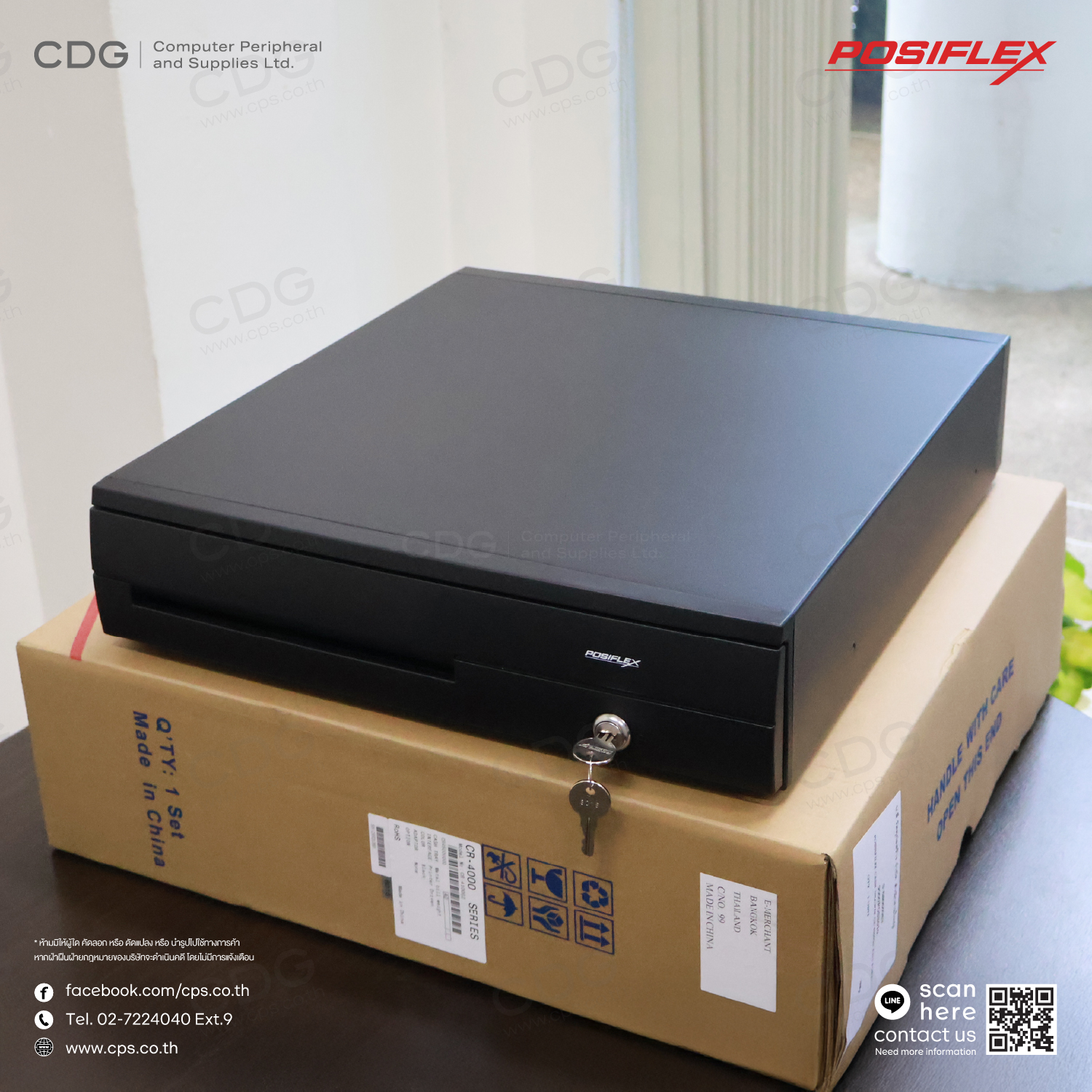

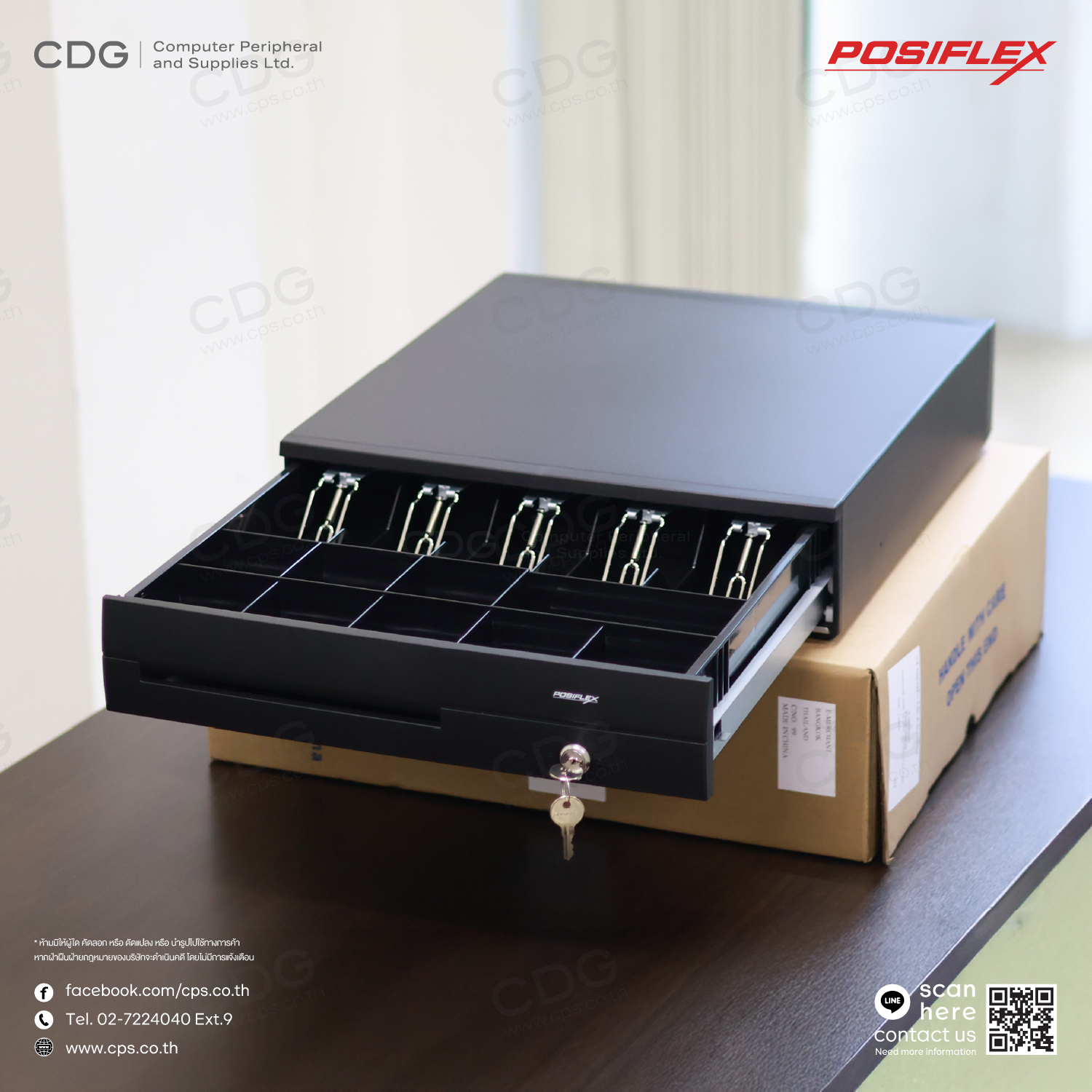

Posiflex Cash Drawer CR-4000G2 / CR-4100G2 Series

• Medium size cash drawer with innovative "Screwless" design

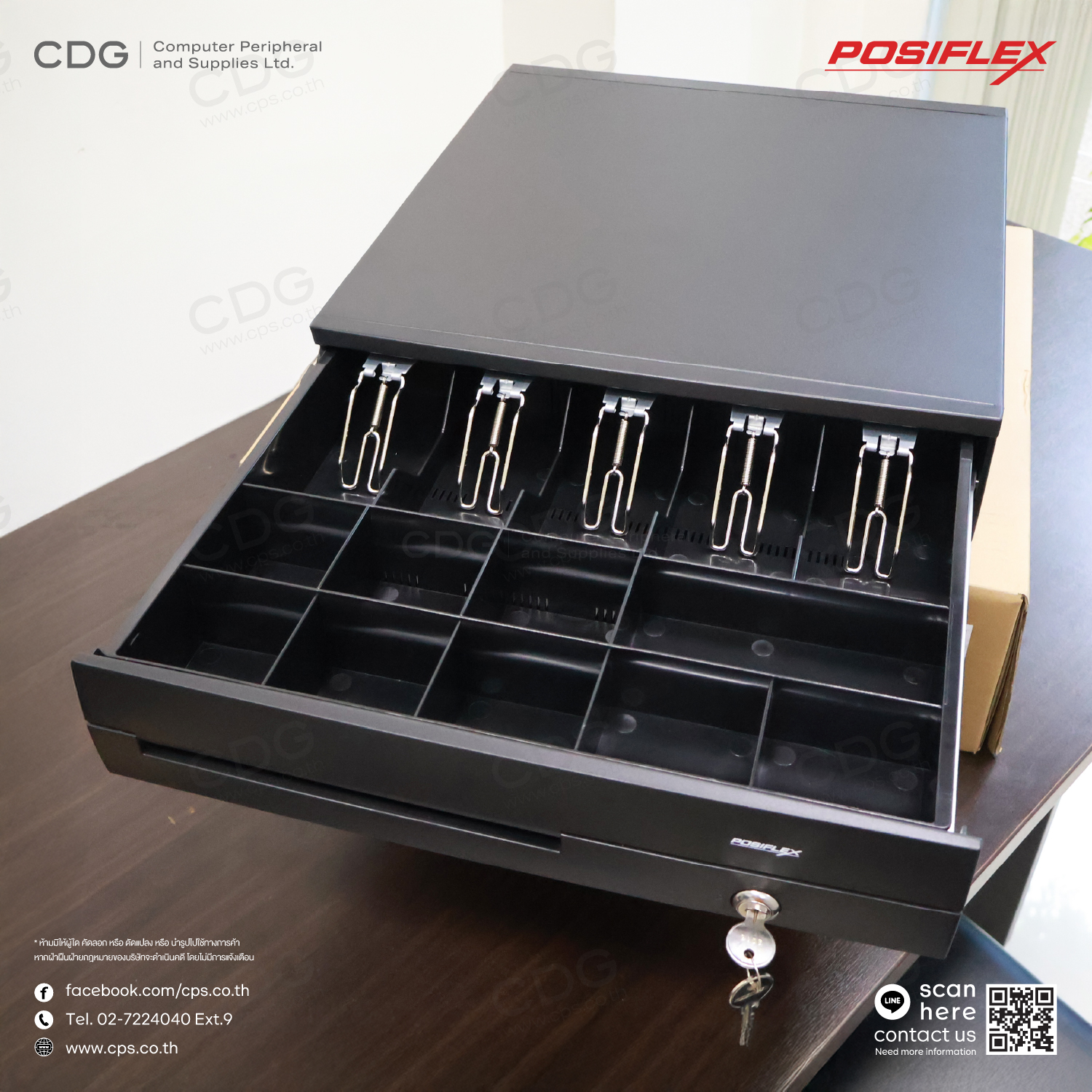

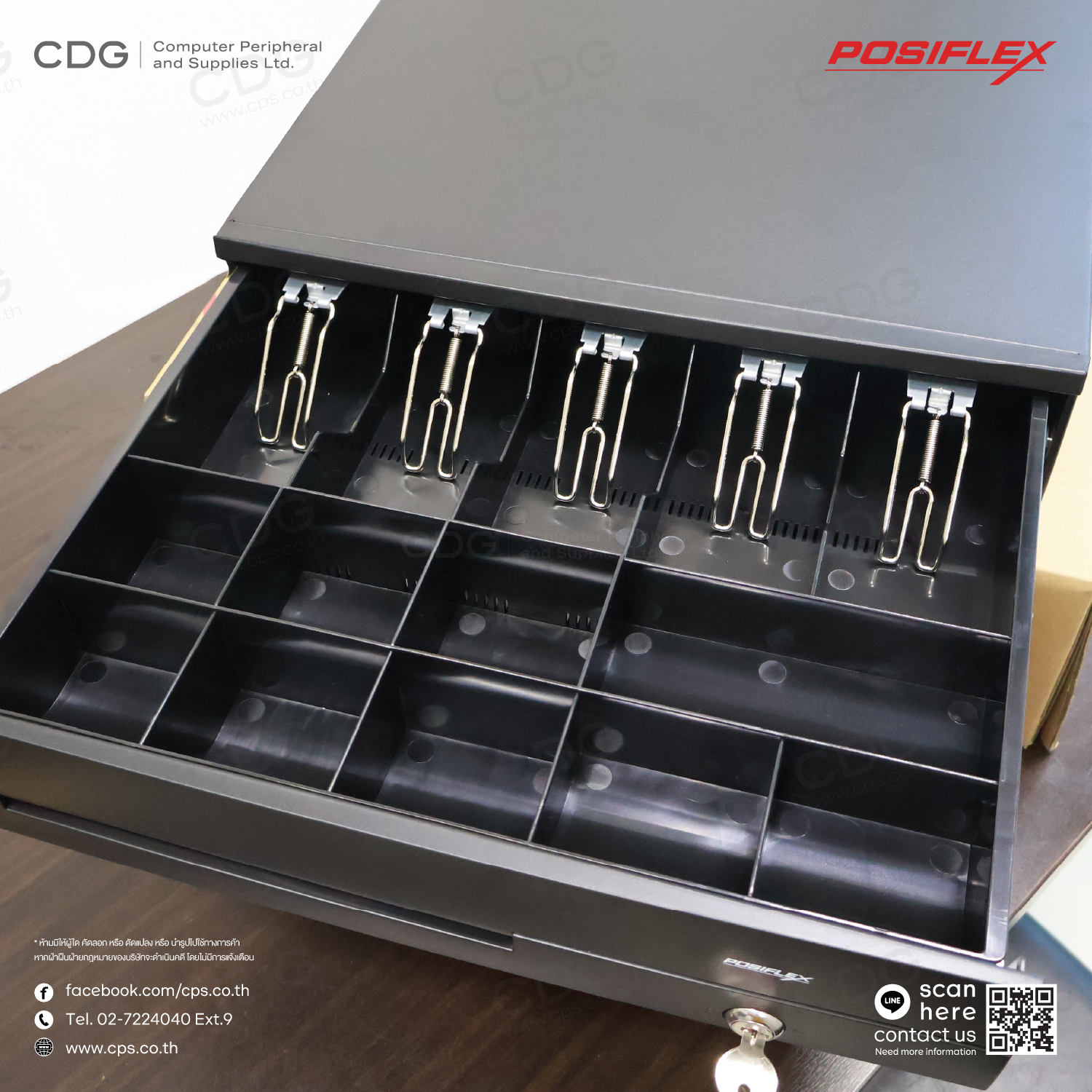

• 5 adjustable bill compartments with plastic bill clip on CR-4000 series

• 5 fixed bill compartments with metal bill clip on CR-4100 series

• 9 fixed coin compartments

• Additional tray cover with lock (optional)

• Precision mechanical fitting to ensure wobble-free operation

• Three position lock to ensure maximum security

• Cheque slot for non-cash transaction

• 255 drawer open codes defined via DIP switch for added programing flexibility (CR-4x02/CR-4x03)

• Serial In + Serial Out and Parallel In + Parallel Out connectors allow device to be daisy-chained after cash drawer (CR-4x02 / CR-4x03)

• Dimension : 428 mm (W) x 460 mm (D) x 100 mm (H); Weight : 6 kg

Posiflex Cash Drawer CR-4000G2 / CR-4100G2 Series

The Posiflex CR-4000 G2 Series and CR-4100 G2 Series are medium-sized cash drawers built for durability and high-volume retail use. They feature a screw-less, tamper-resistant design with a rugged steel construction. The CR-4000 G2 offers 5 adjustable bill compartments with plastic clips, while the CR-4100 G2 includes 5 fixed compartments with metal clips—both with 9 fixed coin slots. These drawers support printer-driven and USB interfaces, making them compatible with a wide range of POS systems. Ideal for retail, hospitality, and service environments that demand reliability and security.

Special Features

• Screw-less Design: Tamper-resistant and secure
• Heavy-Duty Build: Ideal for high-traffic retail and POS environments
• Flexible Integration: Compatible with various POS systems via CR port or USB
• Versatile Use: Suitable for retail stores, restaurants, and service businesses

Specifications

• Type: Medium-size cash drawer
• Construction: Reinforced heavy-gauge steel for enhanced durability


• Bill Compartments:
  • CR-4000 G2: 5 adjustable compartments with plastic bill clips
  • CR-4100 G2: 5 fixed compartments with metal bill clips


• Coin Compartments: 9 fixed compartments
• Cheque Slot: Yes


• Interface Options:
  • CR-4000 G2 / CR-4100 G2: Printer-driven (12V/24V)
  • CR-4015 G2 / CR-4115 G2: USB interface with auto voltage step-up to 12V


• Dimensions (W × D × H): 428 × 460 × 105 mm
• Weight: Approx. 6 kg
• Operating Temperature: 0°C to 50°C
• Humidity Tolerance: 20%–85% RH

Datasheet : Posiflex Cash Drawer CR-4100

Datasheet : Posiflex Cash Drawer CR-4000G2 Series/CR-4100G2 Series

Datasheet : Posiflex Pos Peripherals Solution Catalogues
